LB15RKW01 Series
Manufacturer: NKK Switches
Beta
⌘K
STANDARD SIZE SNAP-IN PUSHBUTTON
| Part | Electrical Life | Mechanical Life | Mounting Type | Termination Style | Color - Actuator/Cap | Actuator Marking | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Operating Temperature [Min] | Operating Temperature [Max] | Type | Voltage Rating - DC | Circuit | Switch Function | Actuator Type | Voltage Rating - AC | Current Rating (Amps) | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | Yellow | No Marking | 16.2 mm | 22.4 mm | -25 °C | 70 °C | Standard | 30 V | SPDT | On-Mom | Button Rectangular | 125 V | 3 A | ||

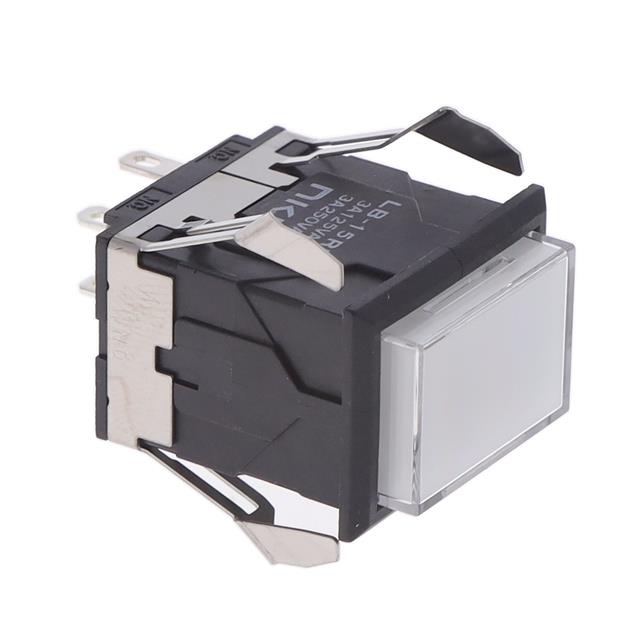

 NKK Switches | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | Clear | No Marking | 16.2 mm | 22.4 mm | -25 °C | 50 °C | Illuminated Standard | 30 V | SPDT | On-Mom | Button Rectangular | 125 V | 3 A | LED Red | 24 V |

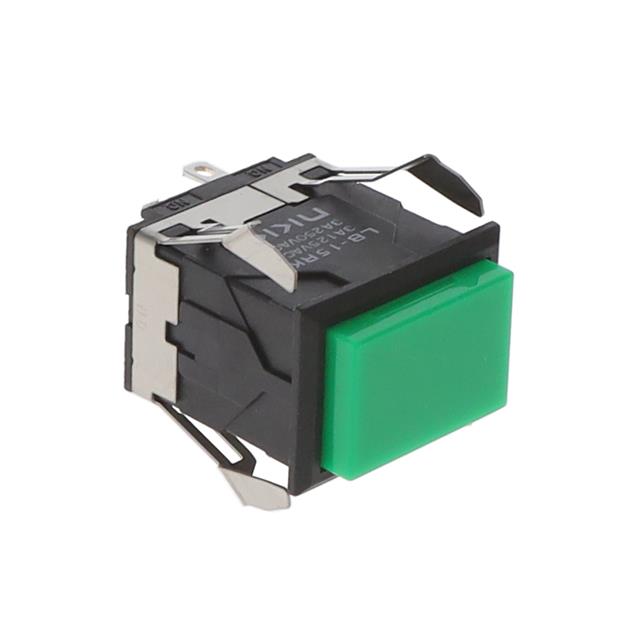

 NKK Switches | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | Green | No Marking | 16.2 mm | 22.4 mm | -25 °C | 70 °C | Standard | 30 V | SPDT | On-Mom | Button Rectangular | 125 V | 3 A | ||
NKK Switches | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | Black | No Marking | 16.2 mm | 22.4 mm | -25 °C | 70 °C | Standard | 30 V | SPDT | On-Mom | Button Rectangular | 125 V | 3 A | ||
 NKK Switches | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | Clear | No Marking | 16.2 mm | 22.4 mm | -25 °C | 50 °C | Illuminated Standard | 30 V | SPDT | On-Mom | Button Rectangular | 125 V | 3 A | Amber LED | 24 V |

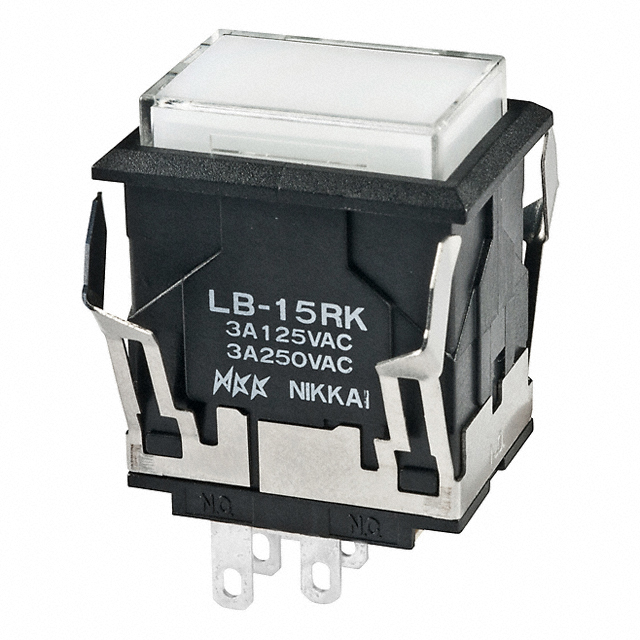

 NKK Switches | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | Clear | No Marking | 16.2 mm | 22.4 mm | -25 °C | 50 °C | Illuminated Standard | 30 V | SPDT | On-Mom | Button Rectangular | 125 V | 3 A | Green LED | 5 VDC |
NKK Switches | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | Red | No Marking | 16.2 mm | 22.4 mm | -25 °C | 70 °C | Standard | 30 V | SPDT | On-Mom | Button Rectangular | 125 V | 3 A | ||

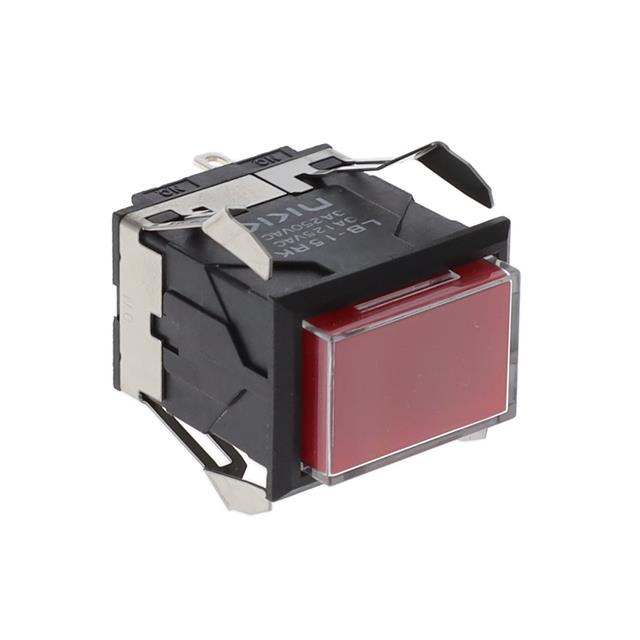

 NKK Switches | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | Clear | No Marking | 16.2 mm | 22.4 mm | -25 °C | 50 °C | Illuminated Standard | 30 V | SPDT | On-Mom | Button Rectangular | 125 V | 3 A | LED Red | 12 VDC |
NKK Switches | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | Clear | No Marking | 16.2 mm | 22.4 mm | -25 °C | 50 °C | Illuminated Standard | 30 V | SPDT | On-Mom | Button Rectangular | 125 V | 3 A | Green LED | 2.1 VDC |
 NKK Switches | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | Clear | No Marking | 16.2 mm | 22.4 mm | -25 °C | 50 °C | Illuminated Standard | 30 V | SPDT | On-Mom | Button Rectangular | 125 V | 3 A | LED Red | 1.9 VDC |
