502244 Series
Manufacturer: Molex
Beta
⌘K
0.50MM PITCH EASY-ON FFC/FPC CONNECTOR, FOR LVDS, 2.33MM HEIGHT, RIGHT-ANGLE, SURFACE MOUNT, ZIF, BOTTOM CONTACT STYLE, 15 CIRCUITS
| Part | Current Rating (Amps) | Actuator Color | Housing Color | Mating Cycles | FFC, FCB Thickness | Connector/Contact Type | Locking Feature | Pitch | Pitch | Mounting Type | Actuator Material | Material Flammability Rating | Termination | Flat Flex Type | Contact Finish | Cable End Type | Voltage Rating | Features | Contact Material | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Height Above Board [z] | Height Above Board [z] | Number of Positions | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

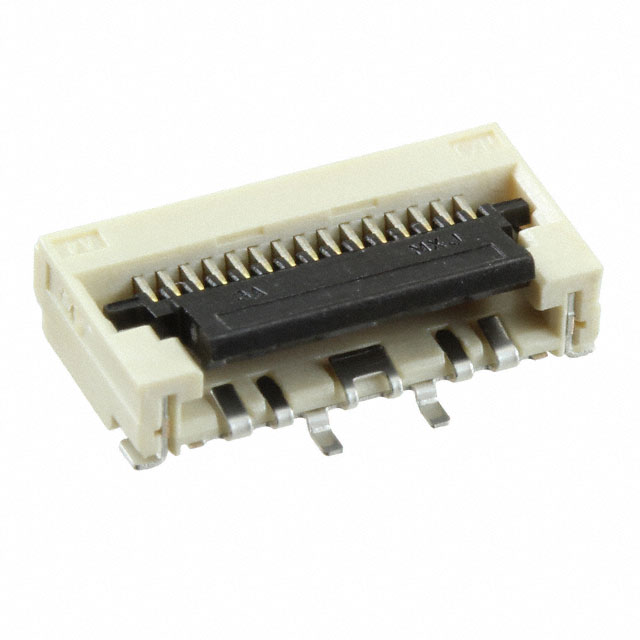

 Molex | 400 mA | Black | White | 20 | 0.3 mm | Contacts Bottom | Flip Lock | 0.02 " | 0.5 mm | Right Angle Surface Mount | Glass Filled Nylon Polyamide (PA) | UL94 V-0 | Solder | FFC | Gold | Straight | 50 V | Solder Retention Zero Insertion Force (ZIF) | Phosphor Bronze | Glass Filled Liquid Crystal Polymer (LCP) | 85 °C | -25 °C | 2.33 mm | 0.092 in | 15 | |

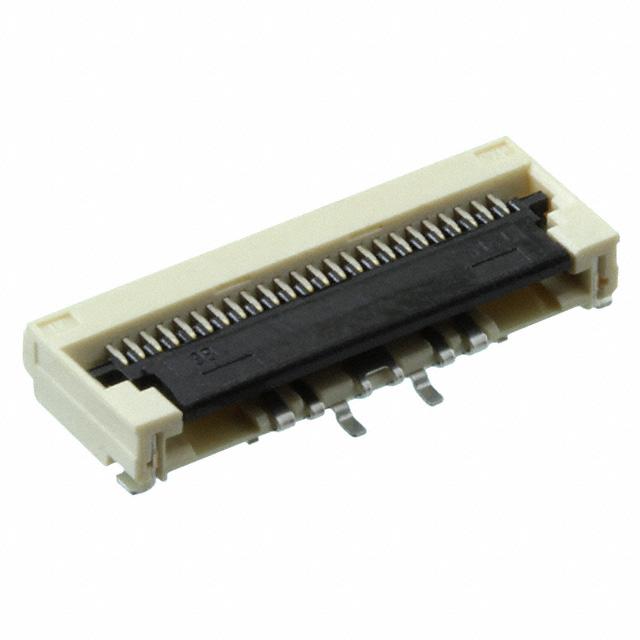

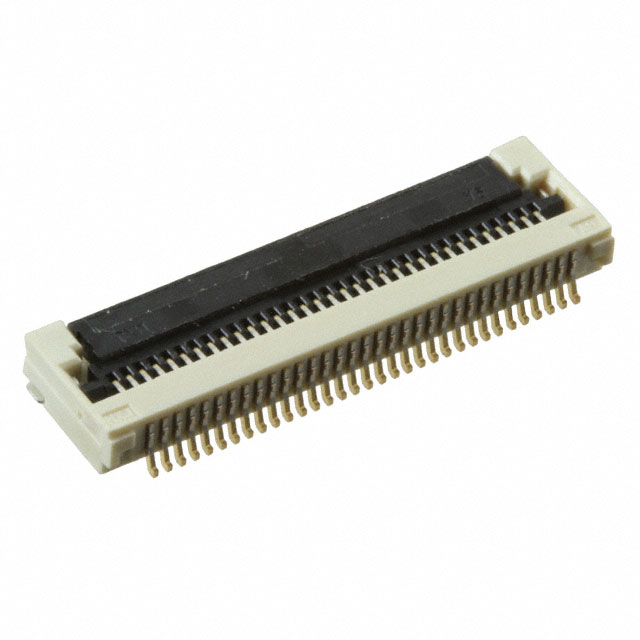

 Molex | 400 mA | Black | White | 20 | 0.3 mm | Contacts Bottom | Flip Lock | 0.02 " | 0.5 mm | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Solder | FFC | Gold | Straight | 50 V | Solder Retention Zero Insertion Force (ZIF) | Phosphor Bronze | Glass Filled Liquid Crystal Polymer (LCP) | 85 °C | -25 °C | 2.33 mm | 0.092 in | 24 | |
 Molex | 400 mA | Black | White | 20 | 0.3 mm | Contacts Bottom | Flip Lock | 0.02 " | 0.5 mm | Right Angle Surface Mount | Glass Filled Nylon Polyamide (PA) | UL94 V-0 | Solder | FFC | Gold | Straight | 50 V | Solder Retention Zero Insertion Force (ZIF) | Phosphor Bronze | Glass Filled Liquid Crystal Polymer (LCP) | 85 °C | -25 °C | 2.33 mm | 0.092 in | 33 |
