DP83TC811R-Q1 Series

Low-power 100BASE-T1 automotive PHYTER™ Ethernet physical layer transceiver

Catalog

Low-power 100BASE-T1 automotive PHYTER™ Ethernet physical layer transceiver

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Protocol	Grade	Qualification	Mounting Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Package / Case	Type	Function	Utilized IC / Part	Supplied Contents	Duplex
Texas Instruments DP83TC811RWRNDRQ1	125 °C	-40 °C	2	2	IEEE 802.3	Automotive	AEC-Q100	Surface Mount Wettable Flank	36-VQFN (6x6)	3.63 V	1.62 V	100 Mbps	36-VFQFN Exposed Pad	Transceiver

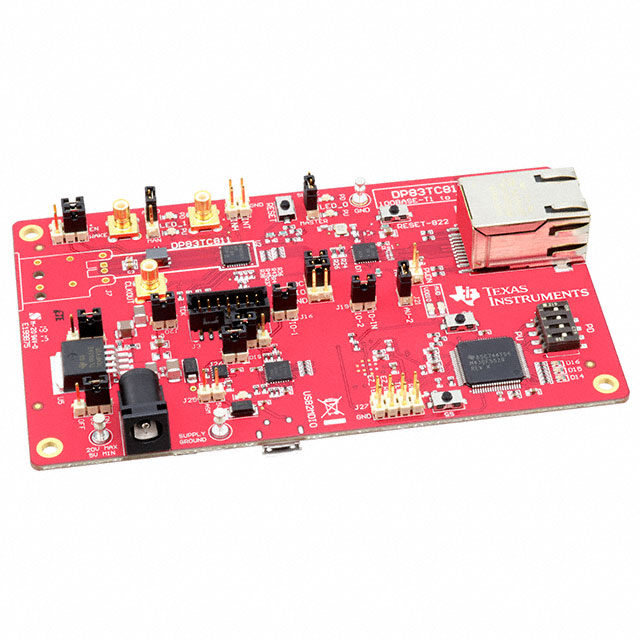

Texas Instruments DP83TC811EVM														Interface	Ethernet	DP83TC811	Board(s)
Texas Instruments DP83TC811RWRNDTQ1	125 °C	-40 °C	2	2	IEEE 802.3	Automotive	AEC-Q100	Surface Mount Wettable Flank	36-VQFN (6x6)	3.63 V	1.62 V	100 Mbps	36-VFQFN Exposed Pad	Transceiver
Texas Instruments DP83TC811SWRNDTQ1	125 °C	-40 °C	4	4	IEEE 802.3	Automotive	AEC-Q100	Surface Mount Wettable Flank	36-VQFN (6x6)	1.98 V 2.75 V 3.63 V	1.62 V 2.25 V 2.97 V	100 Mbps	36-VFQFN Exposed Pad	Transceiver				Full Half

Catalog

Low-power 100BASE-T1 automotive PHYTER™ Ethernet physical layer transceiver

Key Features

• 100BASE-T1 – IEEE 802.3bw CompliantOPEN Alliance QualifiedInteroperable With BroadR-Reach and 100BASE-T1 PHYsAEC-Q100 Qualified for Automotive Applications:Device Temperature Grade 1: –40°C to +125 °C Ambient Operating TemperatureDevice HBM ESD Classification Level 3ADevice CDM ESD Classification Level C5 for All Pins Except Pin 5Device CDM ESD Classification Level C3 for Pin 5Device IEC61000-4-2 ESD Classification Level 4 for Pins 12 and 13: ±8-kV Contact DischargeMAC Interfaces: MII, RMII and RGMIIVQFN, Wettable Flank PackagingIEEE 1588 SFD SupportLow Transmit and Receive Latency for AVB/TSNLow Active Power Operation: < 230 mWConfigurable I/O Voltages: 3.3 V, 2.5 V, and 1.8 VPower Savings Features:Sleep, Standby and DisableWake-on-LAN (WoL)Diagnostic Tool KitSignal Quality Indication (SQI)Time Domain Reflectometry (TDR)Electrostatic Discharge SensorVoltage SensorTemperature SensorPRBS Built-In Self-Test100BASE-T1 – IEEE 802.3bw CompliantOPEN Alliance QualifiedInteroperable With BroadR-Reach and 100BASE-T1 PHYsAEC-Q100 Qualified for Automotive Applications:Device Temperature Grade 1: –40°C to +125 °C Ambient Operating TemperatureDevice HBM ESD Classification Level 3ADevice CDM ESD Classification Level C5 for All Pins Except Pin 5Device CDM ESD Classification Level C3 for Pin 5Device IEC61000-4-2 ESD Classification Level 4 for Pins 12 and 13: ±8-kV Contact DischargeMAC Interfaces: MII, RMII and RGMIIVQFN, Wettable Flank PackagingIEEE 1588 SFD SupportLow Transmit and Receive Latency for AVB/TSNLow Active Power Operation: < 230 mWConfigurable I/O Voltages: 3.3 V, 2.5 V, and 1.8 VPower Savings Features:Sleep, Standby and DisableWake-on-LAN (WoL)Diagnostic Tool KitSignal Quality Indication (SQI)Time Domain Reflectometry (TDR)Electrostatic Discharge SensorVoltage SensorTemperature SensorPRBS Built-In Self-Test

Description

The DP83TC811R-Q1 device is an IEEE 802.3bw-compliant automotive PHYTER™ Ethernet physical layer transceiver. It provides all physical layer functions needed to transmit and receive data over unshielded single twisted-pair cables. The device provides xMII flexibility with support for standard MII, RMII, and RGMII MAC interfaces. This device includes the Diagnostic Tool Kit, providing an extensive list of real-time monitoring tools, debug tools and test modes. Within the tool kit is the first integrated electrostatic discharge (ESD) monitoring tool. It is capable of counting ESD events on both the xMII and MDI as well as providing real-time monitoring through the use of a programmable interrupt. Additionally, the DP83TC811R-Q1 includes a pseudo random binary sequence (PRBS) frame generation tool, which is fully compatible with internal loopbacks, to transmit and receive data without the use of a MAC. The DP83TC811R-Q1 is housed in a 6.00-mm × 6.00-mm, 36-pin VQFN wettable flank package. The DP83TC811R-Q1 device is an IEEE 802.3bw-compliant automotive PHYTER™ Ethernet physical layer transceiver. It provides all physical layer functions needed to transmit and receive data over unshielded single twisted-pair cables. The device provides xMII flexibility with support for standard MII, RMII, and RGMII MAC interfaces. This device includes the Diagnostic Tool Kit, providing an extensive list of real-time monitoring tools, debug tools and test modes. Within the tool kit is the first integrated electrostatic discharge (ESD) monitoring tool. It is capable of counting ESD events on both the xMII and MDI as well as providing real-time monitoring through the use of a programmable interrupt. Additionally, the DP83TC811R-Q1 includes a pseudo random binary sequence (PRBS) frame generation tool, which is fully compatible with internal loopbacks, to transmit and receive data without the use of a MAC. The DP83TC811R-Q1 is housed in a 6.00-mm × 6.00-mm, 36-pin VQFN wettable flank package.
