8428 Series

Catalog

2 #18 EPDM BRD CPE

Part	Shield Coverage	Shield Material	Shield Type	Number of Conductors	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Voltage	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length	Length	Conductor Material	Cable Type	Conductor Insulation	Length [x]	Length [x]
Belden Inc. 8428 010U500	85 %	Copper Tinned Viscose	Double Braid	2	Chlorinated Polyethylene (CPE)	0.03 in	0.762 mm	Audio	600 V	18 AWG	-30 ░C	60 °C	41	34	Black	152.4 m	500 ft	Copper Tinned	Microphone	Ethylene Propylene Terpolymer Rubber (EPDM)

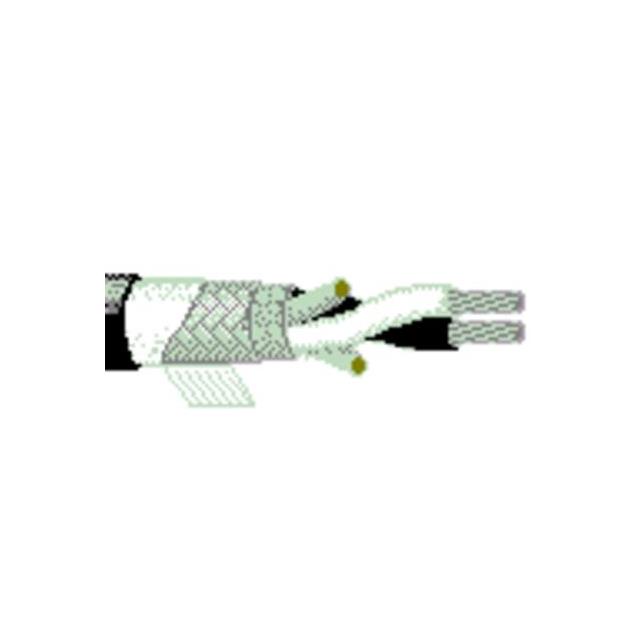

Belden Inc. 8428 010100	85 %	Copper Tinned Viscose	Double Braid	2	Chlorinated Polyethylene (CPE)	0.03 in	0.762 mm	Audio	600 V	18 AWG	-30 ░C	60 °C	41	34	Black			Copper Tinned	Microphone	Ethylene Propylene Terpolymer Rubber (EPDM)	100 ft	30.5 m
Belden Inc. 8428 0101000	85 %	Copper Tinned Viscose	Double Braid	2	Chlorinated Polyethylene (CPE)	0.03 in	0.762 mm	Audio	600 V	18 AWG	-30 ░C	60 °C	41	34	Black	304.8 m	1000 ft	Copper Tinned	Microphone	Ethylene Propylene Terpolymer Rubber (EPDM)
