1030-3 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

RECEPT WRAPOST .072"DIA .510"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall	Length - Overall	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Diameter [diameter]	Tail Diameter [diameter]	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Contact Material	Contact Finish
Mill-Max Manufacturing Corp. 1030-3-17-01-32-14-02-0	-55 C	125 °C	0.693 in	17.6 mm	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	Wire Wrap	1.45 mm	0.057 in	Press-Fit	0.25 Ám	10 Áin	4.12 mm	0.162 in	Brass Alloy	Gold
Mill-Max Manufacturing Corp. 1030-3-05-80-00-00-01-0			0.693 in	17.6 mm	0.072 "	1.83 mm								1.45 mm	0.057 in	Press-Fit					Brass Alloy
Mill-Max Manufacturing Corp. 1030-3-17-80-32-14-02-0			0.693 in	17.6 mm	0.072 "	1.83 mm								1.45 mm	0.057 in	Press-Fit	5.08 Ám	200 Áin			Brass Alloy	Gold

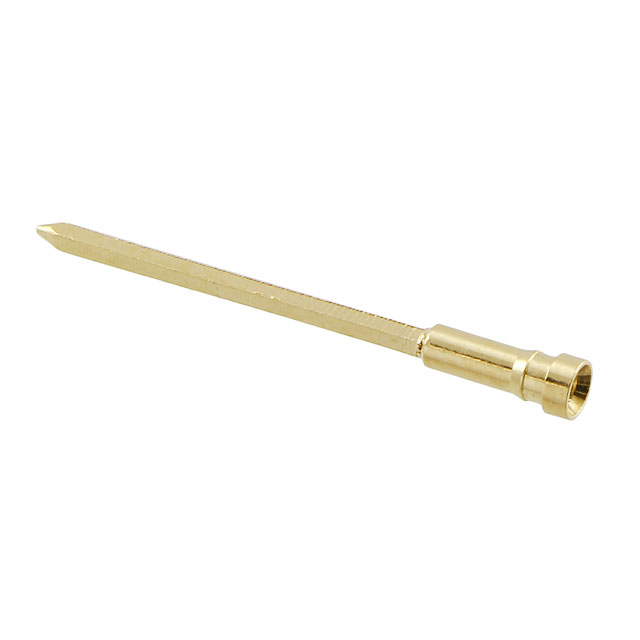

Mill-Max Manufacturing Corp. 1030-3-17-15-30-27-02-0	-55 C	125 °C	0.693 in	17.6 mm	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	Wire Wrap	1.45 mm	0.057 in	Press-Fit	0.76 Ám	30 Áin	4.12 mm	0.162 in	Brass Alloy	Gold
Mill-Max Manufacturing Corp. 1030-3-17-01-30-02-02-0	-55 C	125 °C	0.693 in	17.6 mm	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	Wire Wrap	1.45 mm	0.057 in	Press-Fit	2.54 µm	100 µin	4.12 mm	0.162 in	Brass Alloy	Tin-Lead
Mill-Max Manufacturing Corp. 1030-3-17-15-30-14-02-0			0.693 in	17.6 mm	0.072 "	1.83 mm								1.45 mm	0.057 in	Press-Fit	0.25 Ám	10 Áin			Brass Alloy	Gold
Mill-Max Manufacturing Corp. 1030-3-17-01-32-27-02-0	-55 C	125 °C	0.693 in	17.6 mm	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	Wire Wrap	1.45 mm	0.057 in	Press-Fit	0.76 Ám	30 Áin	4.12 mm	0.162 in	Brass Alloy	Gold
Mill-Max Manufacturing Corp. 1030-3-17-01-32-02-02-0	-55 C	125 °C	0.693 in	17.6 mm	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	Wire Wrap	1.45 mm	0.057 in	Press-Fit	2.54 µm	100 µin	4.12 mm	0.162 in	Brass Alloy	Tin-Lead
Mill-Max Manufacturing Corp. 1030-3-05-21-00-00-01-0	-55 C	125 °C	0.693 in	17.6 mm	0.072 "	1.83 mm					0.025 in	0.64 mm	Wire Wrap	1.45 mm	0.057 in	Press-Fit			4.12 mm	0.162 in	Brass Alloy	Unplated
Mill-Max Manufacturing Corp. 1030-3-17-01-30-27-02-0	-55 C	125 °C	0.693 in	17.6 mm	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	Wire Wrap	1.45 mm	0.057 in	Press-Fit	0.76 Ám	30 Áin	4.12 mm	0.162 in	Brass Alloy	Gold
