ED100 Series

Catalog

TERM BLK 8POS SIDE ENTRY 5MM PCB

Part	Clamp Material - Plating [custom]	Housing Material	Screw Thread	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Positions Per Level	Wire Termination	Mating Orientation	Color	Voltage	Number of Levels	Mounting Type	Pitch	Pitch	Current	Wire Gauge [Min]	Wire Gauge [Max]

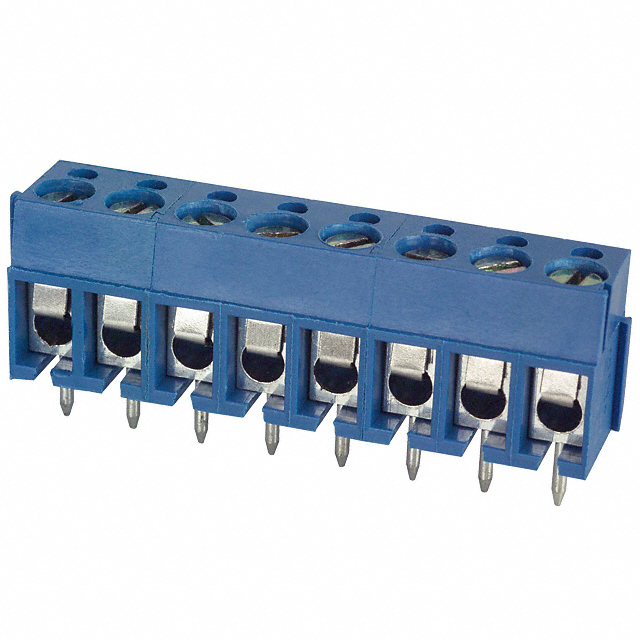

On Shore Technology Inc. ED100/8DS	Stainless Steel	Polyamide (PA) Nylon	M3	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	8	Screw - Leaf Spring Wire Guard	Horizontal with Board	Blue	300 VDC	1	Through Hole	0.197 in	5 mm	15 A	14 AWG	22 AWG

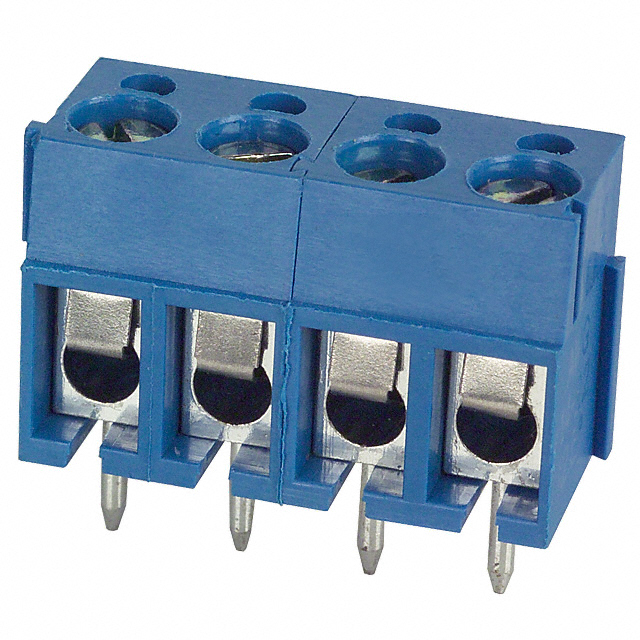

On Shore Technology Inc. ED100/4DS	Stainless Steel	Polyamide (PA) Nylon	M3	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	4	Screw - Leaf Spring Wire Guard	Horizontal with Board	Blue	300 VDC	1	Through Hole	0.197 in	5 mm	15 A	14 AWG	22 AWG

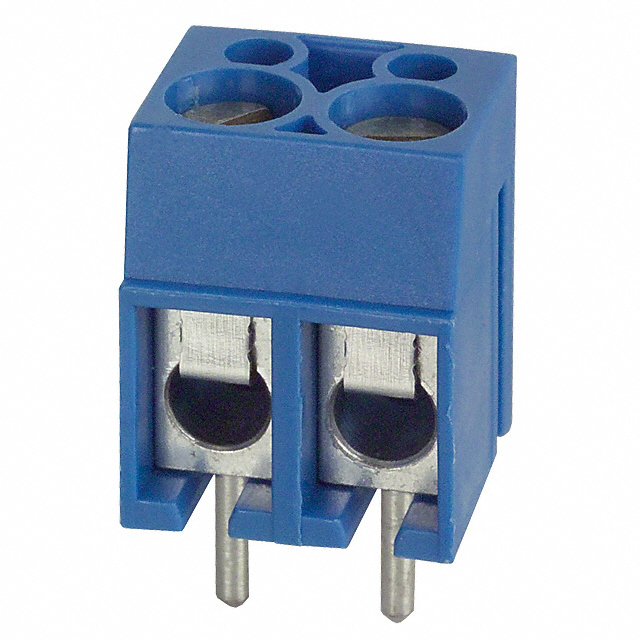

On Shore Technology Inc. ED100/2DS	Stainless Steel	Polyamide (PA) Nylon	M3	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	2	Screw - Leaf Spring Wire Guard	Horizontal with Board	Blue	300 VDC	1	Through Hole	0.197 in	5 mm	15 A	14 AWG	22 AWG

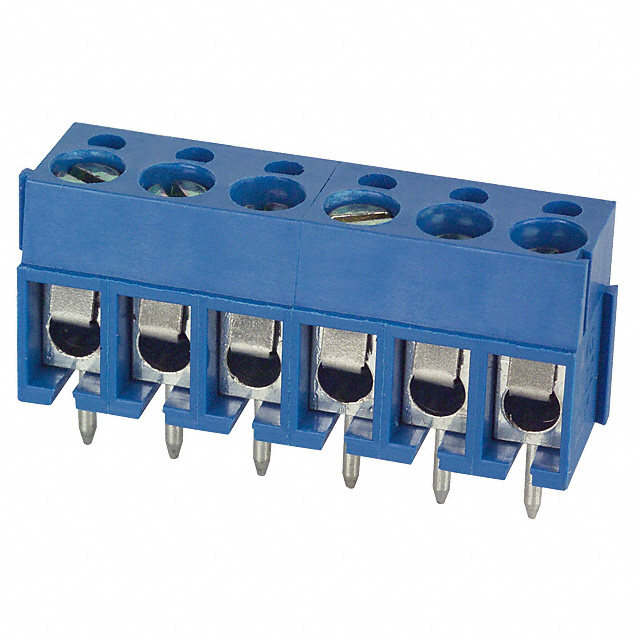

On Shore Technology Inc. ED100/6DS	Stainless Steel	Polyamide (PA) Nylon	M3	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	6	Screw - Leaf Spring Wire Guard	Horizontal with Board	Blue	300 VDC	1	Through Hole	0.197 in	5 mm	15 A	14 AWG	22 AWG
