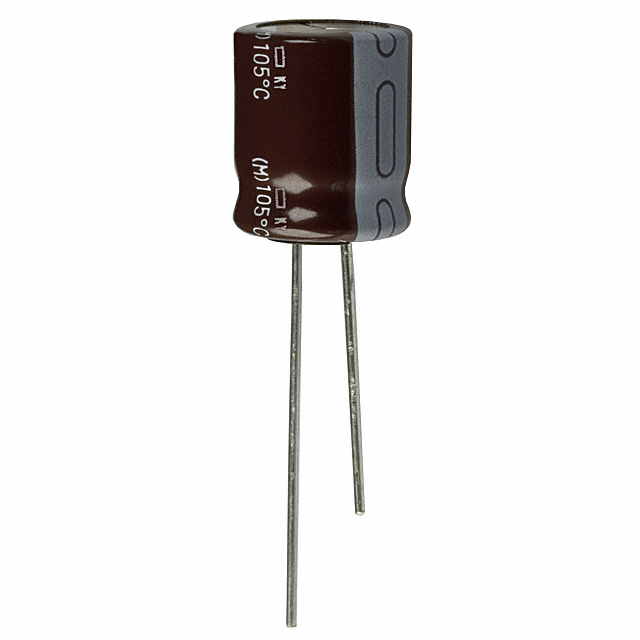

EKY-6R3E Series

Manufacturer: Chemi-Con

Catalog

CAP ALUM 5600UF 20% 6.3V RADIAL

Part	Lead Spacing	Lead Spacing	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Voltage - Rated	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Mounting Type	Package / Case	Impedance	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKY-6R3ELL562MK35S	0.197 "	5 mm	5.6 mF	-40 C	105 ░C	8000 Hrs	2.88 A	2.448 A	6.3 VDC	20 %	1.437 "	36.5 mm	General Purpose	Through Hole	Can Radial	20 mOhms	Polar	0.492 in	12.5 mm
Chemi-Con EKY-6R3ELL332MK20S	0.197 "	5 mm	3.3 mF	-40 C	105 ░C	8000 Hrs		1.425 A	6.3 VDC	20 %			General Purpose	Through Hole	Can Radial	35 mOhms	Polar	0.492 in	12.5 mm	0.846 "	21.5 mm
Chemi-Con EKY-6R3ELL222MJ25S	0.197 "	5 mm	2200 µF	-40 C	105 ░C	6000 Hrs	1.65 A	1.2375 A	6.3 VDC	20 %	1.043 in	26.5 mm	General Purpose	Through Hole	Can Radial	42 mOhms	Polar	0.394 in	10 mm
Chemi-Con EKY-6R3ELL681MHB5D	0.138 in	3.5 mm	680 µF	-40 C	105 ░C	6000 Hrs	640 mA	384 mA	6.3 VDC	20 %	0.512 "	13 mm	General Purpose	Through Hole	Can Radial	130 mOhms	Polar	0.315 in	8 mm
Chemi-Con EKY-6R3ETD331MF11D	0.098 in	2.5 mm	330 µF	-40 C	105 ░C	4000 Hrs	340 mA	170 mA	6.3 VDC	20 %			General Purpose	Through Hole	Can Radial	220 mOhms	Polar	0.248 "	6.3 mm		0.492 in	12.5 mm
Chemi-Con EKY-6R3ELL392MM15S	0.295 in	7.5 mm	3900 µF	-40 C	105 ░C	8000 Hrs	2.21 A	1.6575 A	6.3 VDC	20 %	0.65 in	16.5 mm	General Purpose	Through Hole	Can Radial	43 mOhms	Polar	0.709 in	18 mm
Chemi-Con EKY-6R3ELL182MK15S	0.197 "	5 mm	1800 µF	-40 C	105 ░C	8000 Hrs	1.45 A	870 mA	6.3 VDC	20 %	0.65 in	16.5 mm	General Purpose	Through Hole	Can Radial	49 mOhms	Polar	0.492 in	12.5 mm
Chemi-Con EKY-6R3ETD821MJC5S	0.197 "	5 mm	820 µF	-40 C	105 ░C	6000 Hrs	865 mA	519 mA	6.3 VDC	20 %			General Purpose	Through Hole	Can Radial	80 mOhms	Polar	0.394 in	10 mm	0.551 in	14 mm
Chemi-Con EKY-6R3ELL821MJC5S	0.197 "	5 mm	820 µF	-40 C	105 ░C	6000 Hrs	865 mA	519 mA	6.3 VDC	20 %			General Purpose	Through Hole	Can Radial	80 mOhms	Polar	0.394 in	10 mm	0.551 in	14 mm
