5305FE Series
Manufacturer: Belden Inc.
Beta
⌘K

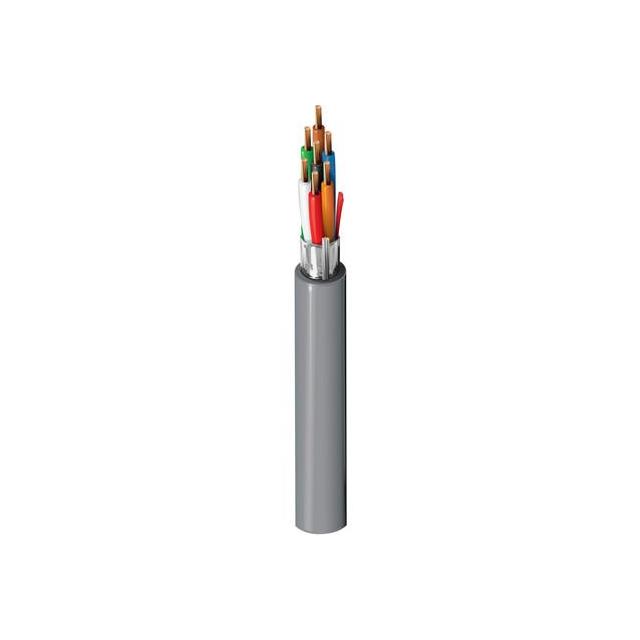

CABLE 7CON 18AWG GRAY SHLD
| Part | Shield Coverage | Shield Material | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket Color | Number of Conductors | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Length | Length | Conductor Insulation | Voltage | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 18 AWG | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | Gray | 7 | Multi-Conductor | 26 AWG | 7 | Foil | 304.8 m | 1000 ft | Polypropylene (PP) | 300 VDC | Security Sound | 5.74 mm | 0.226 in | Drain Wire Rip Cord | 0.018 in | 0.457 mm | UL Style CMR |
