BU-14 Series
Manufacturer: Mueller Electric Co
Beta
⌘K

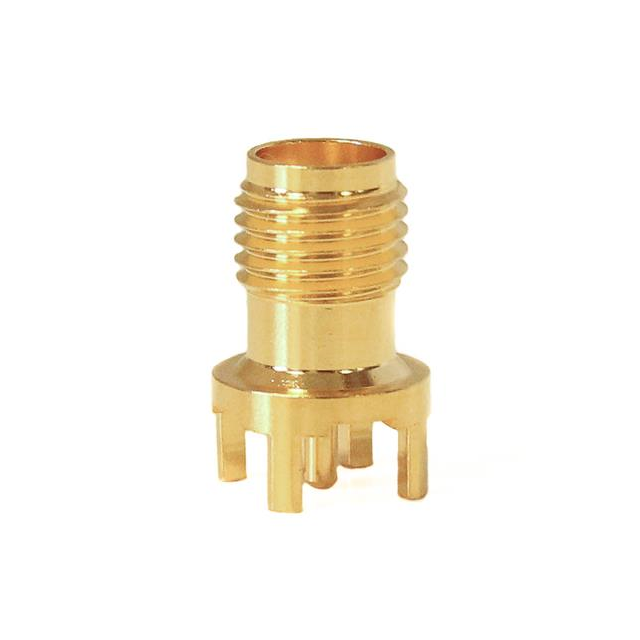

CONN SMA JACK STR. 50 OHM EDGE M
| Part | Body Finish | Dielectric Material | Voltage Rating | Center Contact Plating | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Impedance | Shield Termination | Connector Style | Center Contact Material | Number of Ports | Contact Termination | Connector Type | Frequency - Max [Max] | Fastening Type | Mounting Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mueller Electric Co | Gold | Polytetrafluoroethylene (PTFE) | 170 V | Gold | Brass | 150 °C | -65 ░C | Gold | 50 Ohms | Solder | SMA | Beryllium Copper | 1 | Solder | Female Socket Jack | 26.5 GHz | Threaded | Board Edge End Launch Panel Mount Right Angle | |
 Mueller Electric Co | Gold | Polytetrafluoroethylene (PTFE) | 335 V | Gold | Brass | 150 °C | -65 ░C | Gold | 50 Ohms | Solder | SMA | Beryllium Copper | 1 | Solder | Female Socket Jack | 18 GHz | Threaded | Panel Mount Through Hole | Bulkhead - Front Side Nut |
Mueller Electric Co | Gold | Polytetrafluoroethylene (PTFE) | 170 V | Gold | Brass | 150 °C | -65 ░C | Gold | 50 Ohms | Solder | SMA | Beryllium Copper | 1 | Solder | Female Socket Jack | 26.5 GHz | Threaded | Board Edge End Launch Panel Mount Right Angle | |
 Mueller Electric Co | Gold | Polytetrafluoroethylene (PTFE) | 335 V | Gold | Brass | 150 °C | -65 ░C | Gold | 50 Ohms | Solder | SMA | Beryllium Copper | 1 | Solder | Female Socket Jack | 18 GHz | Threaded | Board Edge End Launch Panel Mount | Bulkhead - Front Side Nut |
 Mueller Electric Co | Gold | Polytetrafluoroethylene (PTFE) | 170 V | Gold | Brass | 150 °C | -65 ░C | Gold | 50 Ohms | Solder | SMA | Beryllium Copper | 1 | Solder | Female Socket Jack | 26.5 GHz | Threaded | Board Edge End Launch Panel Mount Right Angle | |
 Mueller Electric Co | Gold | Polytetrafluoroethylene (PTFE) | 335 V | Gold | Brass | 150 °C | -65 ░C | Gold | 50 Ohms | Solder | SMA | Beryllium Copper | 1 | Solder | Female Socket Jack | 18 GHz | Threaded | Through Hole | |
 Mueller Electric Co | Gold | Polytetrafluoroethylene (PTFE) | 335 V | Gold | Brass | 150 °C | -65 ░C | Gold | 50 Ohms | Solder | SMA | Beryllium Copper | 1 | Solder | Female Socket Jack | 18 GHz | Threaded | Board Edge End Launch | |
 Mueller Electric Co | Gold | Polytetrafluoroethylene (PTFE) | 335 V | Gold | Brass | 150 °C | -65 ░C | Gold | 50 Ohms | Solder | SMA | Beryllium Copper | 1 | Solder | Female Socket Jack | 18 GHz | Threaded | Right Angle Through Hole | |
 Mueller Electric Co | Gold | Polytetrafluoroethylene (PTFE) | 335 V | Gold | Brass | 150 °C | -65 ░C | Gold | 50 Ohms | Solder | SMA | Beryllium Copper | 1 | Solder | Female Socket Jack | 18 GHz | Threaded | Board Edge End Launch | |
 Mueller Electric Co | Gold | Polytetrafluoroethylene (PTFE) | 335 V | Gold | Brass | 150 °C | -65 ░C | Gold | 50 Ohms | Solder | SMA | Beryllium Copper | 1 | Solder | Female Socket Jack | 18 GHz | Threaded | Board Edge End Launch |
