AA2L0C-P Series

Manufacturer: ODU

Catalog

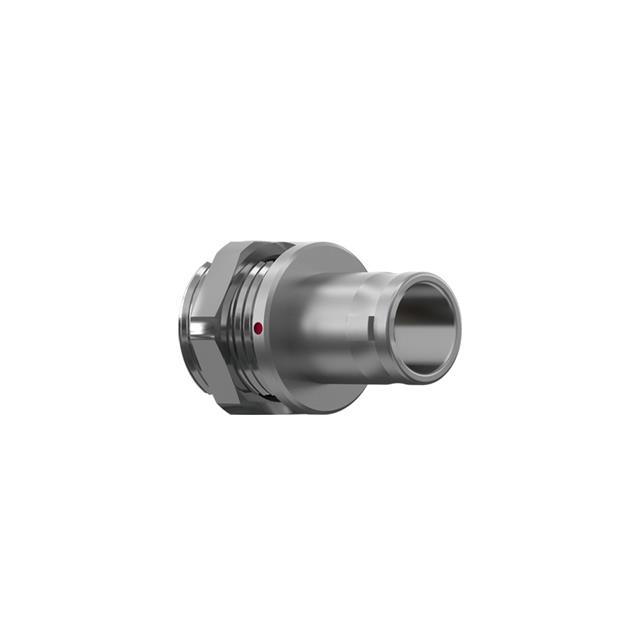

ODU MINI-SNAP PNL MNT PLUG, STY

Part	Shell Finish	Insert Material	Current Rating (Amps)	Contact Material	Fastening Type	Applications	Contact Finish - Mating	Color	Shell Material	Primary Material	Shielding	Mounting Feature	Shell Size - Insert [custom]	Ingress Protection	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Voltage Rating	Mounting Type
ODU AA2L0C-P12MFG0-0000	Chrome over Nickel	Polyetheretherketone (PEEK)	7.5 A	Brass	Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Gold	Silver	Brass	Metal	Unshielded	Bulkhead - Rear Side Nut	2	IP50 - Dust Protected	Plug Male Pins	120 °C	-40 C	12	400 V	Panel Mount
ODU AA2L0C-P16MFG0-0000	Chrome over Nickel	Polyetheretherketone (PEEK)	7.5 A	Brass	Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Gold	Silver	Brass	Metal	Unshielded	Bulkhead - Rear Side Nut	2	IP50 - Dust Protected	Plug Male Pins	120 °C	-40 C	16	300 VDC	Panel Mount
ODU AA2L0C-P05MPH0-0000	Chrome over Nickel	Polyetheretherketone (PEEK)	12 Amps	Brass	Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Gold	Silver	Brass	Metal	Unshielded	Bulkhead - Rear Side Nut	2	IP50 - Dust Protected	Plug Male Pins	120 °C	-40 C	5	600 V	Panel Mount
ODU AA2L0C-P19MFG0-0000	Chrome over Nickel	Polyetheretherketone (PEEK)	7.5 A	Brass	Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Gold	Silver	Brass	Metal	Unshielded	Bulkhead - Rear Side Nut	2	IP50 - Dust Protected	Plug Male Pins	120 °C	-40 C	19	300 VDC	Panel Mount
ODU AA2L0C-P06MPH0-0000	Chrome over Nickel	Polyetheretherketone (PEEK)	12 Amps	Brass	Push-Pull	Industrial Medical Military Testing Equipment & Measurement	Gold	Silver	Brass	Metal	Unshielded	Bulkhead - Rear Side Nut	2	IP50 - Dust Protected	Plug Male Pins	120 °C	-40 C	6	500 V	Panel Mount
