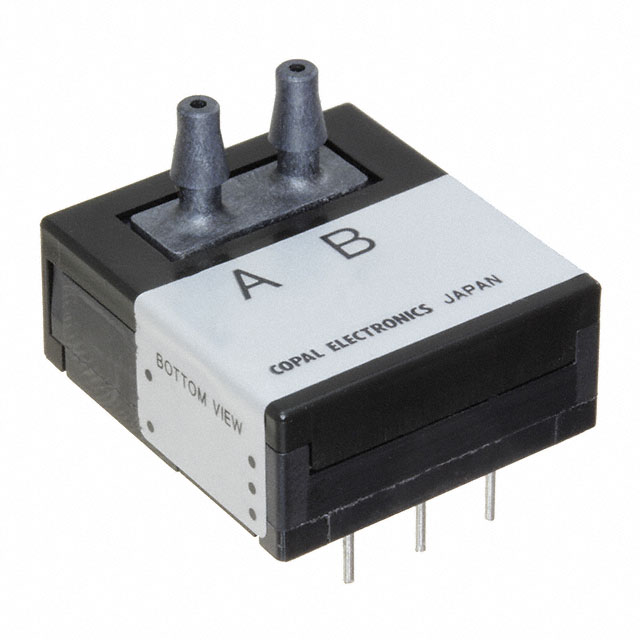

PA-100 Series

Catalog

SENSOR 0.15PSID 0.1" 4.5V

Part	Pressure Type	Output [Max]	Output [Min]	Features	Package / Case	Applications	Maximum Pressure [Max]	Maximum Pressure [Max]	Mounting Type	Termination Style	Port Style	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Operating Pressure	Operating Pressure	Port Size	Port Size	Port Size	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Maximum Pressure	Maximum Pressure
Nidec Components Corporation PA-100-100D-S	Differential	4.5 V	0.5 V	Temperature Compensated	5-SIP Module	Board Mount	0.73 PSI	5 kPa	Through Hole	PC Pin	Barbless	-20 ░C	70 °C	Analog Voltage	0.15 PSI	1 kPa	2.5 mm	Dual Male Tube	0.1 in
Nidec Components Corporation PA-100-500D-W	Differential	4.5 V	0.5 V	Temperature Compensated	5-SIP Module	Board Mount			Through Hole	PC Pin	Barbless	-20 ░C	70 °C	Analog Voltage			2.5 mm	Dual Male Tube	0.1 in	-73 PSI	5 kPa	73 PSI	-5 kPa	3.63 PSI	25 kPa
Nidec Components Corporation PA-100-200D-W	Differential	4.5 V	0.5 V	Temperature Compensated	5-SIP Module	Board Mount			Through Hole	PC Pin	Barbless	-20 ░C	70 °C	Analog Voltage			2.5 mm	Dual Male Tube	0.1 in	-29 PSI -2 kPa		2 kPa 29 PSI		1.45 PSI	10 kPa
Nidec Components Corporation PA-100-200D-S	Differential	4.5 V	0.5 V	Temperature Compensated	5-SIP Module	Board Mount			Through Hole	PC Pin	Barbless	-20 ░C	70 °C	Analog Voltage	0.29 PSI	2 kPa	2.5 mm	Dual Male Tube	0.1 in					1.45 PSI	10 kPa
