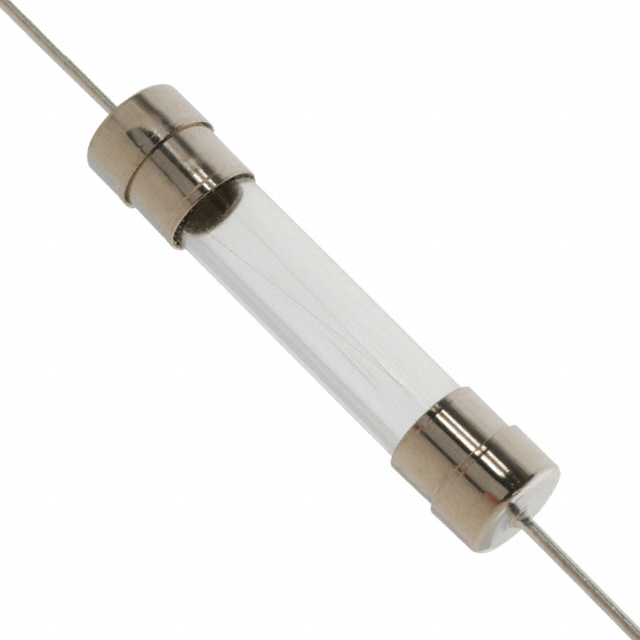

FUSE 250V FA PT 3AG Pb-FREE 5A
Description
AI
The 3AG Fast-Acting Fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
Beta
⌘K
FUSE 250V FA PT 3AG Pb-FREE 5A
FUSE 250V FA PT 3AG Pb-FREE 5A
| Part | Melting I²t | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Response Time | Approval Agency | Mounting Type | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case [y] | Package / Case | Package / Case [x] | Fuse Type | Breaking Capacity @ Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 50 | 5 A | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | Fast Blow | CE CSA KC PSE UL | Through Hole | 250 V | -55 C | 125 °C | 3AB 3AG | 0.25 " | Cartridge Glass | 200 A | |
 LITTELFUSE | 50 | 5 A | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | Fast Blow | CE CSA KC PSE UL | Through Hole | 250 V | -55 C | 125 °C | 3AB 3AG | 0.25 " | Cartridge Glass | 200 A |
