E5DC-QX Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

CONTROL TEMP/PROC 24V DIN RAIL

Part	Termination Style	Input Range [Min]	Input Range [Max]	Output Type	Display Characters - Height	Display Characters - Height	Display Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Type	Voltage - Supply	Control Method	Weight	Weight	Number of Characters Per Row	Number of Characters Per Row	Mounting Type	Communications	Voltage - Supply [Min]	Voltage - Supply [Max]	Features
Omron Electronics Inc-EMC Div E5DC-QX2DSM-000	Screw Terminal	-328 °F 0 V 0 A	10 V 20 mA 2300 °C	Relay (2) Voltage (External SSR)	0.314 in 8 mm	0.334 in 8.5 mm	LCD - Dual Color Characters Backlight	55 °C	-10 °C	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	24 VAC	On/Off Proportional (PID)	0.265 lb	120.2 g	4	4	DIN Rail
Omron Electronics Inc-EMC Div E5DC-QX2DSM-002	Screw Terminal	-328 °F 0 V 0 A	10 V 20 mA 2300 °C	Relay (2) Voltage (External SSR)	0.314 in 8 mm	0.334 in 8.5 mm	LCD - Dual Color Characters Backlight	55 °C	-10 °C	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	24 VAC	On/Off Proportional (PID)	0.265 lb	120.2 g	4	4	DIN Rail	CompoWay/F Modbus RS-485
Omron Electronics Inc-EMC Div E5DC-QX2ASM-000	Screw Terminal	-328 °F 0 V 0 A	10 V 20 mA 2300 °C	Relay (2) Voltage (External SSR)	0.314 in 8 mm	0.334 in 8.5 mm	LCD - Dual Color Characters Backlight	55 °C	-10 °C	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)		On/Off Proportional (PID)	0.265 lb	120.2 g	4	4	DIN Rail		100 VAC	240 VAC

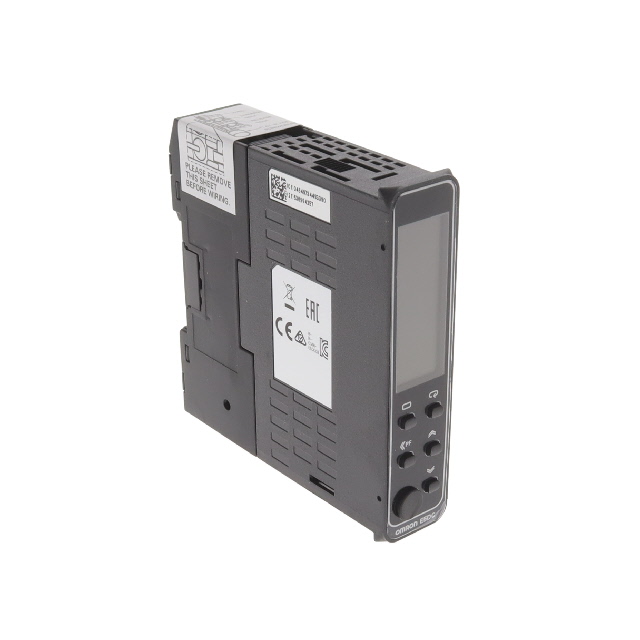

Omron Electronics Inc-EMC Div E5DC-QX0DBM-015	Spring Terminal	-328 °F 0 V 0 A	10 V 20 mA 2300 °C	Voltage (External SSR)	0.314 in 8 mm	0.334 in 8.5 mm	LCD - Dual Color Characters Backlight	55 °C	-10 °C	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	24 VAC	On/Off Proportional (PID)			4	4	DIN Rail	CompoWay/F Modbus RS-485
Omron Electronics Inc-EMC Div E5DC-QX2ASM-017	Screw Terminal	-328 °F 0 V 0 A	10 V 20 mA 2300 °C	Relay (2) Voltage (External SSR)	0.314 in 8 mm	0.334 in 8.5 mm	LCD - Dual Color Characters Backlight	55 °C	-10 °C	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)		On/Off Proportional (PID)	0.265 lb	120.2 g	4	4	DIN Rail		100 VAC	240 VAC	Event Input Heater Fault Detection
Omron Electronics Inc-EMC Div E5DC-QX2DSM-017	Screw Terminal	-328 °F 0 V 0 A	10 V 20 mA 2300 °C	Relay (2) Voltage (External SSR)	0.314 in 8 mm	0.334 in 8.5 mm	LCD - Dual Color Characters Backlight	55 °C	-10 °C	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	24 VAC	On/Off Proportional (PID)	0.265 lb	120.2 g	4	4	DIN Rail				Event Input Heater Fault Detection
Omron Electronics Inc-EMC Div E5DC-QX2DUM-000
