AEH08U Series

Catalog

DC DC CONVERTER 53V 400W

Part	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [custom]	Approval Agency	Power (Watts)	Type	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Supplier Device Package	Mounting Type	Package / Case	Applications	Current - Output (Max) [Max]	Voltage - Isolation	Number of Outputs	Voltage - Input (Max) [Max]	Features	Voltage - Input (Min) [Min]

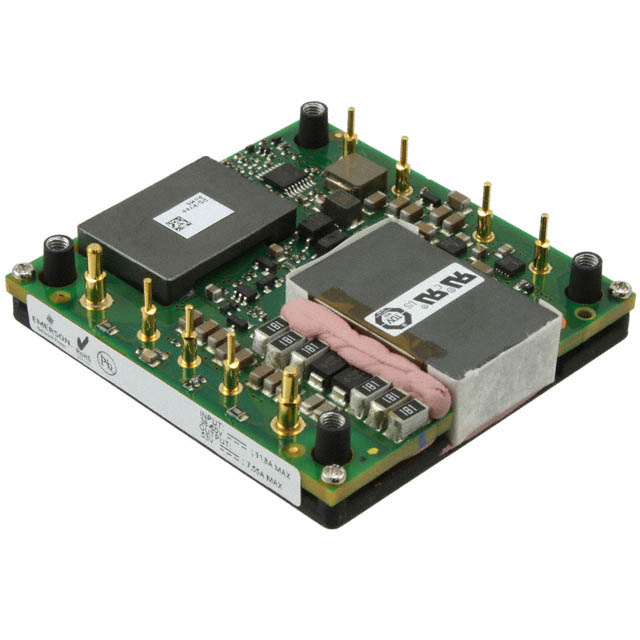

ARTESYN / Advanced Energy AEH08U48N-6L	Active Low Enable	55 °C	-5 °C	53 V	cUL TUV UL	400 W	Isolated Module	94 %	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in	Half Brick	Through Hole	Half Brick	ITE (Commercial)	7.55 A	2250 VDC	1	60 V	Adjustable Output Remote On/Off Remote Sense	38 V
