Circular Push Pull Connectors
Circular Push Pull Connectors
| Part | Mounting Feature | Connector Type | Current Rating (Amps) | Primary Material | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Shielding | Contact Material | Number of Positions | Cable Opening [custom] | Cable Opening [custom] | Shell Material | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Shell Size - Insert | Applications | Insert Material | Termination | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Bulkhead - Front Side Nut | Receptacle Female Sockets | 7 A | Metal | Gold | -55 °C | 200 °C | IP68 - Dust Tight Waterproof | Shielded | Bronze | 7 | 9.7 mm | 0.382 in | Aluminum Alloy | Nickel | 59 Áin | 1.5 Ám | Gray | 307 | Aerospace Automotive Aviation Military | Polyetheretherketone (PEEK) | Crimp | N |
LEMO | Bulkhead - Front Side Nut | Receptacle Female Sockets | 9 A | Metal | Gold | -55 °C | 200 °C | IP68 - Dust Tight Waterproof | Shielded | Bronze | 9.7 mm | 0.382 in | Aluminum Alloy | Nickel | 59 Áin | 1.5 Ám | Gray | 305 | Aerospace Automotive Aviation Military | Polyetheretherketone (PEEK) | Crimp | N | |

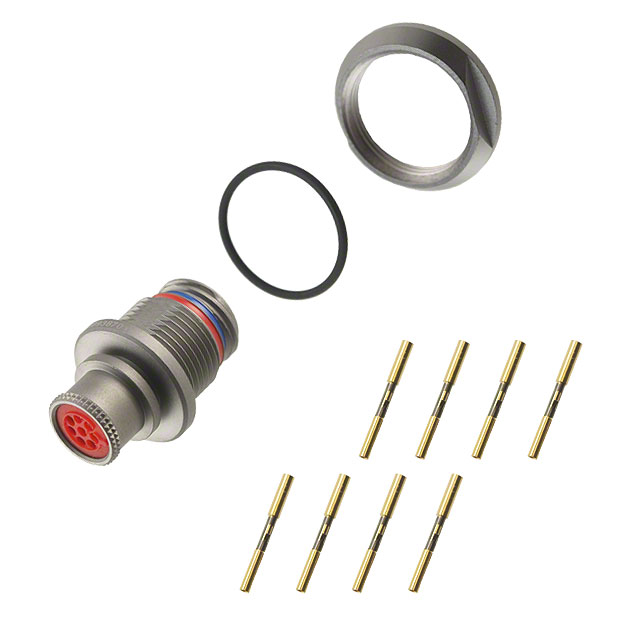

 LEMO | Bulkhead - Front Side Nut | Receptacle Female Sockets | 5 A | Metal | Gold | -55 °C | 200 °C | IP68 - Dust Tight Waterproof | Shielded | Bronze | 8 | 9.7 mm | 0.382 in | Aluminum Alloy | Nickel | 59 Áin | 1.5 Ám | Gray | 308 | Aerospace Automotive Aviation Military | Polyetheretherketone (PEEK) | Crimp | N |
