9834 Series
Manufacturer: Belden Inc.
Beta
⌘K

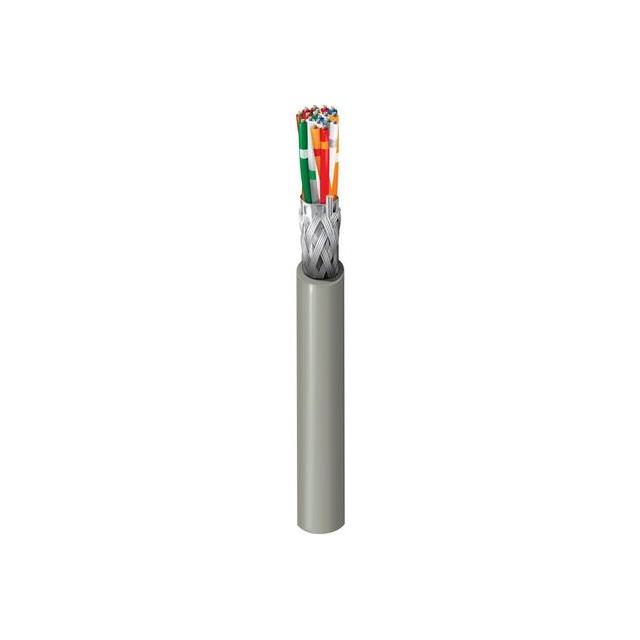

MULTI-PAIR 18COND 24AWG
| Part | Shield Material | Shield Coverage | Jacket Color | Cable Type | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Ratings | Usage | Conductor Insulation | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Shield Type | Jacket (Insulation) Material | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Chrome | Multi-Pair | Drain Wire | 0.419 in | 10.64 mm | 7 | 32 AWG | Copper Tinned | UL Style 2919 | Computer | Polyethylene (PE) | 152.4 m | 500 ft | 80 °C | -30 ░C | 18 | Braid Foil | Poly-Vinyl Chloride (PVC) | 24 AWG | 0.035 in | 0.889 mm |
