041672 Series

Manufacturer: Molex

Catalog

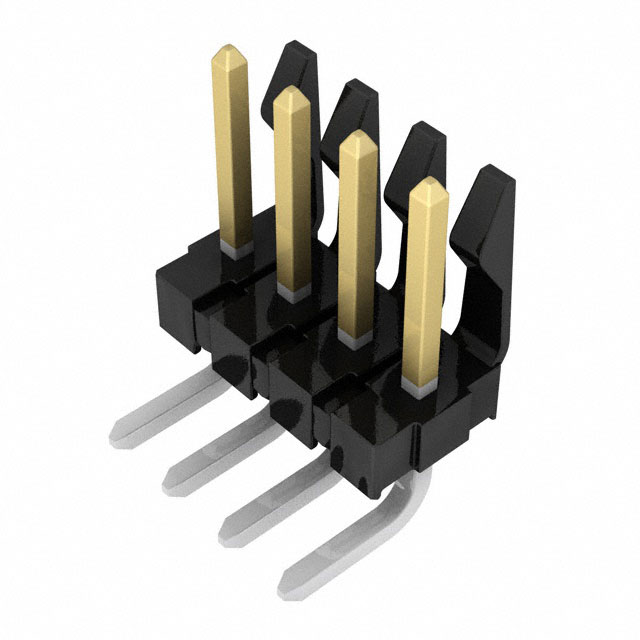

CONN HEADER R/A 4POS 3.96MM

Part	Contact Finish - Post	Number of Rows	Insulation Material	Contact Length - Mating	Contact Length - Mating	Connector Type	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Insulation Height	Insulation Height	Style	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Contact Finish - Mating	Shrouding	Mounting Type	Material Flammability Rating	Number of Positions	Insulation Color	Termination	Contact Shape	Number of Positions Loaded
Molex 0416720003	Tin	1	Polyester	11.43 mm	0.45 in	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Friction Lock	9.02 mm	0.355 in	Board to Board Cable	All	0.156 in	3.96 mm	Male Pin	15 µin	0.38 µm	5.38 mm	0.212 in	Brass	Gold	Shrouded - 1 Wall	Through Hole Right Angle	UL94 V-0	4	Black	Solder	Square

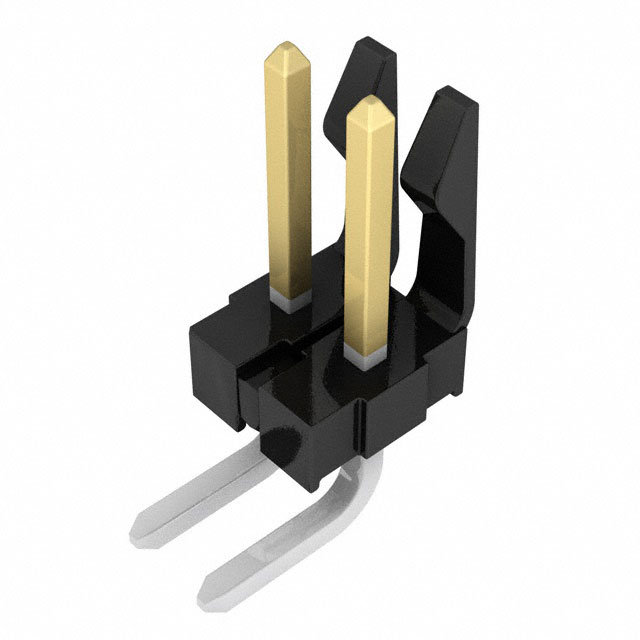

Molex 0416720024	Tin	1	Polyester	11.43 mm	0.45 in	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Friction Lock	9.02 mm	0.355 in	Board to Board Cable	All	0.156 in	3.96 mm	Male Pin	30 Áin	0.76 Ám	5.38 mm	0.212 in	Brass	Gold	Shrouded - 1 Wall	Through Hole Right Angle	UL94 V-0	2	Black	Solder	Square
Molex 0416720203	Tin	1	Polyester	11.43 mm	0.45 in	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	Friction Lock	9.02 mm	0.355 in	Board to Board Cable		0.156 in	3.96 mm	Male Pin	60 Áin	1.52 Ám	5.38 mm	0.212 in	Brass		Shrouded - 1 Wall	Through Hole Right Angle	UL94 V-0	14	Black	Solder	Square	10
Molex 0416720005	Tin	1	Polyester	11.43 mm	0.45 in	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Friction Lock	9.02 mm	0.355 in	Board to Board Cable	All	0.156 in	3.96 mm	Male Pin	15 µin	0.38 µm	5.38 mm	0.212 in	Brass	Gold	Shrouded - 1 Wall	Through Hole Right Angle	UL94 V-0	6	Black	Solder	Square
Molex 0416720040	Tin	1	Polyester	11.43 mm	0.45 in	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	Friction Lock	9.02 mm	0.355 in	Board to Board Cable	All	0.156 in	3.96 mm	Male Pin	30 Áin	0.76 Ám	5.38 mm	0.212 in	Brass	Gold	Shrouded - 1 Wall	Through Hole Right Angle	UL94 V-0	18	Black	Solder	Square
