2301844 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

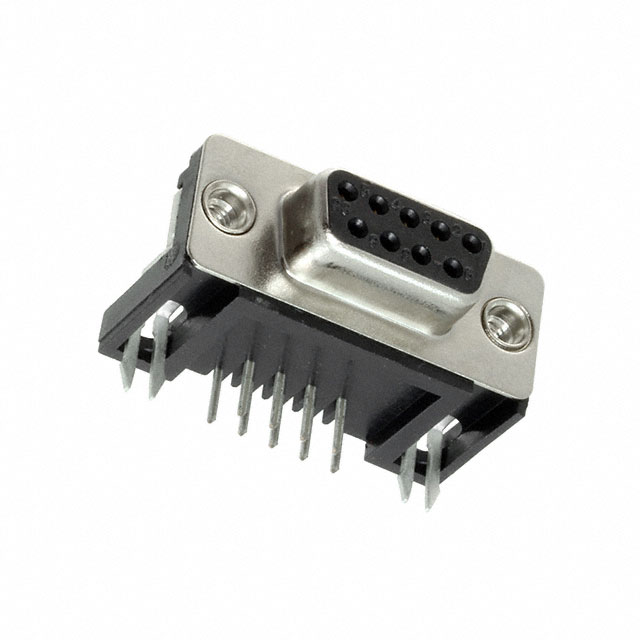

CONN D-SUB RCPT 9POS R/A SLDR
| Part | Backset Spacing | Backset Spacing | Current Rating (Amps) | Color | Contact Finish | Connector Type | Mounting Type | Dielectric Material | Number of Positions | Flange Feature | Shell Material, Finish | Material Flammability Rating | Termination | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Voltage Rating | Connector Style | Number of Rows | Contact Material | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.411 in | 10.43 mm | 2 A | Black | Gold | Receptacle Female Sockets | Through Hole Right Angle | Polybutylene Terephthalate (PBT) Glass Filled | 9 | 4-40 Board Side | Nickel Plated Steel | UL94 V-0 | Solder | 15 µin | 0.38 µm | DE E | 1 | 250 VAC | D-Sub | 2 | Brass | Signal | 105 ░C | -55 °C |
