95293 Series

Catalog

CONN HEADER SMD 13POS 2.54MM

...

Part	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Rows	Insulation Material	Connector Type	Insulation Color	Contact Finish - Post	Fastening Type	Number of Positions	Number of Positions Loaded	Contact Type	Contact Shape	Shrouding	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Material Flammability Rating	Termination	Contact Finish - Mating	Contact Length - Mating	Features	Number of Positions
Amphenol ICC (FCI) 95293-402-13LF	0.318 "	8.08 mm	1	Thermoplastic	Breakaway Header	Black	Tin	Push-Pull	13	All	Male Pin	Square	Unshrouded	0.1 in	2.54 mm	78.7 µin	2 µm	Phosphor Bronze	2 çm	78.7 çin	Surface Mount	0.1 in	2.54 mm	-65 ░C	130 °C	3 A	UL94 V-0	Solder
Amphenol ICC (FCI) 95293-501-13LF	0.23 in		1	Thermoplastic	Breakaway Header	Black	Tin	Push-Pull	13	All	Male Pin	Square	Unshrouded	0.1 in	2.54 mm	10 çin	0.25 çm	Phosphor Bronze	2 çm	78.7 çin	Surface Mount	0.1 in	2.54 mm	-65 ░C	130 °C	3 A	UL94 V-0	Solder	Gold GXT™	5.84 mm

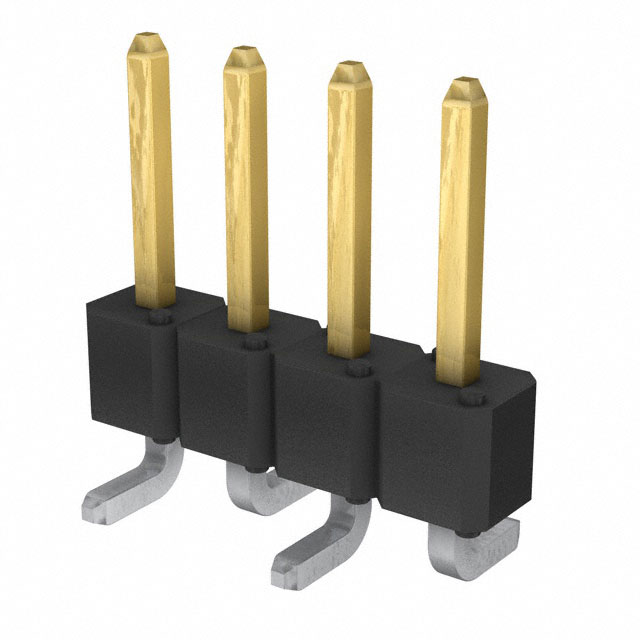

Amphenol ICC (FCI) 95293-801B04LF	0.23 in		1	Thermoplastic	Breakaway Header	Black	Tin	Push-Pull	4	All	Male Pin	Square	Unshrouded	0.1 in	2.54 mm	15 µin	0.38 µm	Phosphor Bronze	2 çm	78.7 çin	Surface Mount	0.1 in	2.54 mm	-65 ░C	130 °C	3 A	UL94 V-0	Solder	Gold GXT™	5.84 mm	Pick and Place
Amphenol ICC (FCI) 95293-502-03LF	0.318 "	8.08 mm	1	Thermoplastic	Breakaway Header	Black	Tin	Push-Pull		All	Male Pin	Square	Unshrouded	0.1 in	2.54 mm	10 çin	0.25 çm	Phosphor Bronze	2 çm	78.7 çin	Surface Mount	0.1 in	2.54 mm	-65 ░C	130 °C	3 A	UL94 V-0	Solder	Gold GXT™
Amphenol ICC (FCI) 95293-802-16LF	0.318 "	8.08 mm	1	Thermoplastic	Breakaway Header	Black	Tin	Push-Pull		All	Male Pin	Square	Unshrouded	0.1 in	2.54 mm	15 µin	0.38 µm	Phosphor Bronze	2 çm	78.7 çin	Surface Mount	0.1 in	2.54 mm	-65 ░C	130 °C	3 A	UL94 V-0	Solder	Gold GXT™			16
Amphenol ICC (FCI) 95293-101A07LF	0.23 in		1	Thermoplastic	Breakaway Header	Black	Tin	Push-Pull	7	All	Male Pin	Square	Unshrouded	0.1 in	2.54 mm	30 Áin	0.76 Ám	Phosphor Bronze	2 çm	78.7 çin	Surface Mount	0.1 in	2.54 mm	-65 ░C	130 °C	3 A	UL94 V-0	Solder	Gold GXT™	5.84 mm	Pick and Place
Amphenol ICC (FCI) 95293-502-07LF	0.318 "	8.08 mm	1	Thermoplastic	Breakaway Header	Black	Tin	Push-Pull	7	All	Male Pin	Square	Unshrouded	0.1 in	2.54 mm	10 çin	0.25 çm	Phosphor Bronze	2 çm	78.7 çin	Surface Mount	0.1 in	2.54 mm	-65 ░C	130 °C	3 A	UL94 V-0	Solder	Gold GXT™

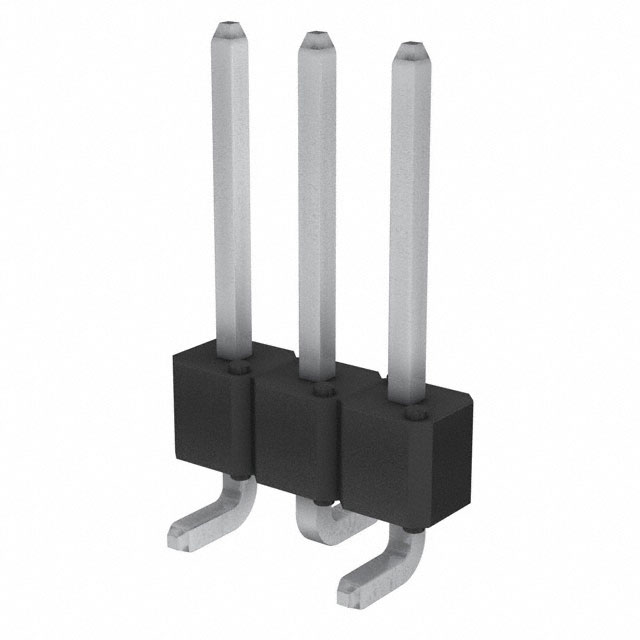

Amphenol ICC (FCI) 95293-402B03LF	0.318 "	8.08 mm	1	Thermoplastic	Breakaway Header	Black	Tin	Push-Pull		All	Male Pin	Square	Unshrouded	0.1 in	2.54 mm	78.7 µin	2 µm	Phosphor Bronze	2 çm	78.7 çin	Surface Mount	0.1 in	2.54 mm	-65 ░C	130 °C	3 A	UL94 V-0	Solder			Pick and Place
Amphenol ICC (FCI) 95293-102-17LF	0.318 "	8.08 mm	1	Thermoplastic	Breakaway Header	Black	Tin	Push-Pull		All	Male Pin	Square	Unshrouded	0.1 in	2.54 mm	30 Áin	0.76 Ám	Phosphor Bronze	2 çm	78.7 çin	Surface Mount	0.1 in	2.54 mm	-65 ░C	130 °C	3 A	UL94 V-0	Solder	Gold GXT™
Amphenol ICC (FCI) 95293-802-08LF	0.318 "	8.08 mm	1	Thermoplastic	Breakaway Header	Black	Tin	Push-Pull	8	All	Male Pin	Square	Unshrouded	0.1 in	2.54 mm	15 µin	0.38 µm	Phosphor Bronze	2 çm	78.7 çin	Surface Mount	0.1 in	2.54 mm	-65 ░C	130 °C	3 A	UL94 V-0	Solder	Gold GXT™
