KSC323 Series

Catalog

SWITCH TACTILE SPST-NO 0.01A 32V

Part	Contact Rating @ Voltage	Mechanical Life	Actuator Height off PCB, Vertical	Operating Force	Illumination	Mounting Type	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Circuit	Ingress Protection	Termination Style	Outline [y]	Outline [x]	Switch Travel	Switch Function

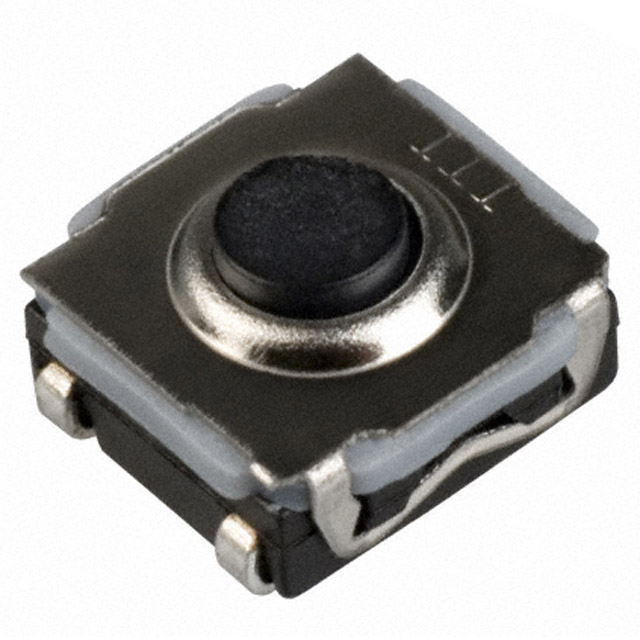

Littelfuse/Commercial Vehicle Products KSC323J	0.01 A 32 VDC	300000 Cycles	3.5 mm	200 gf	Non-Illuminated	Surface Mount	Top Actuated	125 °C	-40 °C	Standard	SPST-NO	IP67 - Dust Tight Waterproof	J Lead	6.2 mm	6.2 mm	0.2 mm	Off-Mom
Littelfuse/Commercial Vehicle Products KSC323G	0.01 A 32 VDC	300000 Cycles	3.5 mm	200 gf	Non-Illuminated	Surface Mount	Top Actuated	125 °C	-40 °C	Standard	SPST-NO	IP67 - Dust Tight Waterproof	Gull Wing	6.2 mm	6.2 mm	0.2 mm	Off-Mom
