R8C/L36C Series
16-bit Microcontrollers with R8C CPU Core (Non Promotion)
Manufacturer: Renesas Electronics Corporation
Catalog
16-bit Microcontrollers with R8C CPU Core (Non Promotion)
| Part | Supplier Device Package | Program Memory Size | Core Size | Mounting Type | Data Converters | EEPROM Size | Core Processor | Number of I/O | RAM Size | Program Memory Type | Package / Case | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Oscillator Type | Connectivity | Operating Temperature [Min] | Operating Temperature [Max] | Speed |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

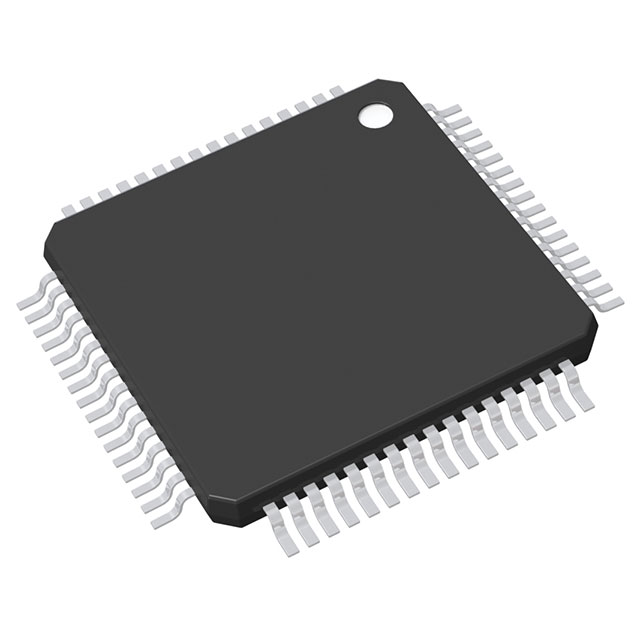

Renesas Electronics Corporation | 64-LFQFP (10x10) | 128 KB | 16-Bit | Surface Mount | A/D 10x10b D/A 2x8b | 4K x 8 | R8C | 52 | 10 K | FLASH | 64-LQFP | 1.8 V | 5.5 V | External Internal | I2C LINbus SIO SSU UART/USART | -20 °C | 85 C | 20 MHz |
Renesas Electronics Corporation | 64-LFQFP (10x10) | 128 KB | 16-Bit | Surface Mount | A/D 10x10b D/A 2x8b | 4K x 8 | R8C | 52 | 10 K | FLASH | 64-LQFP | 1.8 V | 5.5 V | External Internal | I2C LINbus SIO SSU UART/USART | -40 °C | 85 °C | 20 MHz |
 Renesas Electronics Corporation | 64-LFQFP (10x10) | 64 KB | 16-Bit | Surface Mount | A/D 10x10b D/A 2x8b | 4K x 8 | R8C | 52 | 8 K | FLASH | 64-LQFP | 1.8 V | 5.5 V | Internal | I2C LINbus SIO SSU UART/USART | -40 °C | 85 °C | 20 MHz |
 Renesas Electronics Corporation | 64-LFQFP (10x10) | 64 KB | 16-Bit | Surface Mount | A/D 10x10b D/A 2x8b | 4K x 8 | R8C | 52 | 8 K | FLASH | 64-LQFP | 1.8 V | 5.5 V | Internal | I2C LINbus SIO SSU UART/USART | -20 °C | 85 C | 20 MHz |
Renesas Electronics Corporation | 64-LFQFP (10x10) | 48 KB | 16-Bit | Surface Mount | A/D 10x10b D/A 2x8b | 4K x 8 | R8C | 52 | 6 K | FLASH | 64-LQFP | 1.8 V | 5.5 V | External Internal | I2C LINbus SIO SSU UART/USART | -20 °C | 85 C | 20 MHz |
Renesas Electronics Corporation | 64-LFQFP (10x10) | 96 KB | 16-Bit | Surface Mount | A/D 10x10b D/A 2x8b | 4K x 8 | R8C | 52 | 10 K | FLASH | 64-LQFP | 1.8 V | 5.5 V | External Internal | I2C LINbus SIO SSU UART/USART | -20 °C | 85 C | 20 MHz |
Renesas Electronics Corporation | 64-LQFP (14x14) | 64 KB | 16-Bit | Surface Mount | A/D 10x10b D/A 2x8b | 4K x 8 | R8C | 52 | 8 K | FLASH | 64-LQFP | 1.8 V | 5.5 V | External Internal | I2C LINbus SIO SSU UART/USART | -20 °C | 85 C | 20 MHz |
Renesas Electronics Corporation | 64-LFQFP (10x10) | 64 KB | 16-Bit | Surface Mount | A/D 10x10b D/A 2x8b | 4K x 8 | R8C | 52 | 8 K | FLASH | 64-LQFP | 1.8 V | 5.5 V | Internal | I2C LINbus SIO SSU UART/USART | -40 °C | 85 °C | 20 MHz |
Renesas Electronics Corporation | 64-LQFP (14x14) | 128 KB | 16-Bit | Surface Mount | A/D 10x10b D/A 2x8b | 4K x 8 | R8C | 52 | 10 K | FLASH | 64-LQFP | 1.8 V | 5.5 V | External Internal | I2C LINbus SIO SSU UART/USART | -40 °C | 85 °C | 20 MHz |
Renesas Electronics Corporation | 64-LQFP (14x14) | 48 KB | 16-Bit | Surface Mount | A/D 10x10b D/A 2x8b | 4K x 8 | R8C | 52 | 6 K | FLASH | 64-LQFP | 1.8 V | 5.5 V | Internal | I2C LINbus SIO SSU UART/USART | -40 °C | 85 °C | 20 MHz |
Description
AI
The R8C/L36C Group is supported only for customers who have already adopted these products. The RL78/L12, RL78/L13 Groups are recommended for new designs.
The R8C/L35M Group, R8C/L36M Group, R8C/L38M Group, and R8C/L3AM Group of single-chip MCUs incorporate the R8C CPU core, which implements a powerful instruction set for a high level of efficiency and supports a 1Mb address space, allowing execution of instructions at high speed. In addition, the CPU core integrates a multiplier for high-speed operation processing.
Power consumption is low, and the supported operating modes allow additional power control. These MCUs are designed to maximize EMI/EMS performance. Integration of many peripheral functions, including multifunction timer and serial interface, helps reduce the number of system components. These groups have data flash (1KB × 4 blocks) with the background operation (BGO) function.
