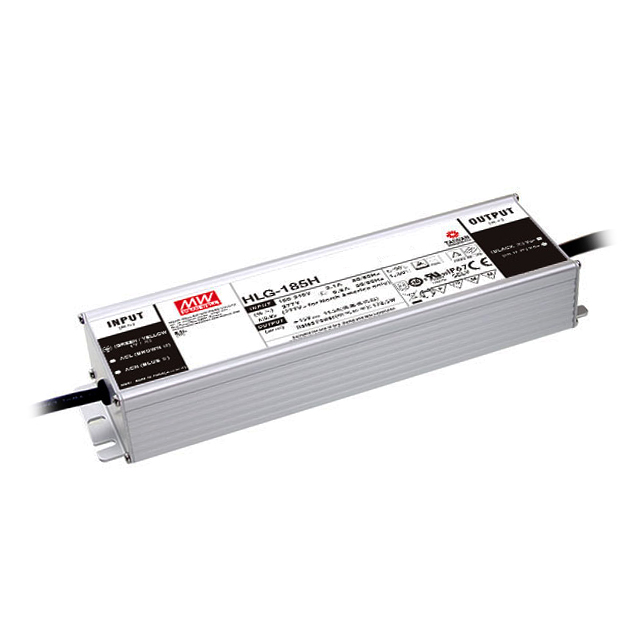

HLG-185H Series

Catalog

LED DRVR CC/CV AC/DC 33-40V 5.2A

Part	Mounting Type	Efficiency	Voltage - Isolation	Type	Ratings	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Termination Style	Voltage - Input (Max) [Max]	Approval Agency	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Number of Outputs	Current - Output (Max) [Max]	Features	Topology	Voltage - Output	Dimming	Voltage - Output [Max]	Voltage - Output [Min]
MEAN WELL USA Inc. HLG-185H-36A	Chassis Mount	93.5 %	3750 VDC	Constant Current Voltage	IP65	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	Wire Leads	305 VAC	CB CCC CE cURus PSE RCM TUV	90 VAC	90 °C	-40 C	187 W	1	5.2 A	OCP OTP OVP SCP	AC DC Converter	36 V
MEAN WELL USA Inc. HLG-185H-12	Chassis Mount	91.5 %	3750 VDC	Constant Current Voltage	IP67	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	Wire Leads	305 VAC	CB CCC CE cURus PSE RCM TUV	90 VAC	90 °C	-40 C	156 W	1	13 A	OCP OTP OVP SCP	AC DC Converter	12 V
MEAN WELL USA Inc. HLG-185H-54A	Chassis Mount	94 %	3750 VDC	Constant Current Voltage	IP65	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	Wire Leads	305 VAC	CB CCC CE cURus PSE RCM TUV	90 VAC	90 °C	-40 C	186 W	1	3.45 A	OCP OTP OVP SCP	AC DC Converter	54 V
MEAN WELL USA Inc. HLG-185H-42B	Chassis Mount	94 %	3750 VDC	Constant Current Voltage	IP67	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	Wire Leads	305 VAC	CB CCC CE cURus PSE RCM TUV	90 VAC	90 °C	-40 C	185 W	1	4.4 A	OCP OTP OVP SCP	AC DC Converter	42 V	Analog PWM
MEAN WELL USA Inc. HLG-185H-54AB	Chassis Mount	94 %	3750 VDC	Constant Current Voltage	IP65	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	Wire Leads	305 VAC	CB CCC CE cURus EAC KC PSE RCM TUV	90 VAC	90 °C	-40 C	186 W	1	3.45 A	OCP OTP OVP SCP	AC DC Converter	54 V

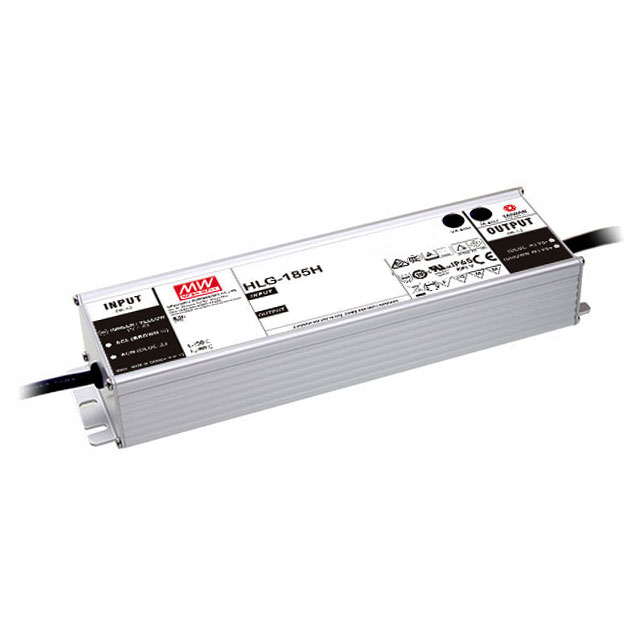

MEAN WELL USA Inc. HLG-185H-42AB	Chassis Mount	94 %	3750 VDC	Constant Current Voltage	IP65	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	Wire Leads	305 VAC	CB CCC CE cURus KC PSE RCM TUV	90 VAC	90 °C	-40 C	185 W	1	4.4 A	OCP OTP OVP SCP	AC DC Converter	42 V	Analog PWM
MEAN WELL USA Inc. HLG-185H-15B	Chassis Mount	92 %	3750 VDC	Constant Current Voltage	IP67	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	Wire Leads	305 VAC	CB CCC CE cURus PSE RCM TUV	90 VAC	90 °C	-40 C	173 W	1	11.5 A	OCP OTP OVP SCP	AC DC Converter	15 V	Analog PWM
MEAN WELL USA Inc. HLG-185H-20A	Chassis Mount	93 %	3750 VDC	Constant Current Voltage	IP65	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	Wire Leads	305 VAC	CB CCC CE cURus PSE RCM TUV	90 VAC	90 °C	-40 C	186 W	1	9.3 A	OCP OTP OVP SCP	AC DC Converter	20 V
MEAN WELL USA Inc. HLG-185H-C500B	Chassis Mount	94 %	3750 VDC	Constant Current	IP67	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	Wire Leads	305 VAC	CB CCC CE cURus ENEC RCM	90 VAC	90 °C	-40 C	200 Watts	1	500 mA	OTP OVP SCP	AC DC Converter		Analog PWM	400 V	200 V
MEAN WELL USA Inc. HLG-185H-30B	Chassis Mount	93.5 %	3750 VDC	Constant Current Voltage	IP67	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	Wire Leads	305 VAC	CB CCC CE cURus PSE RCM TUV	90 VAC	90 °C	-40 C	186 W	1	6.2 A	OCP OTP OVP SCP	AC DC Converter	30 V	Analog PWM
