0720-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

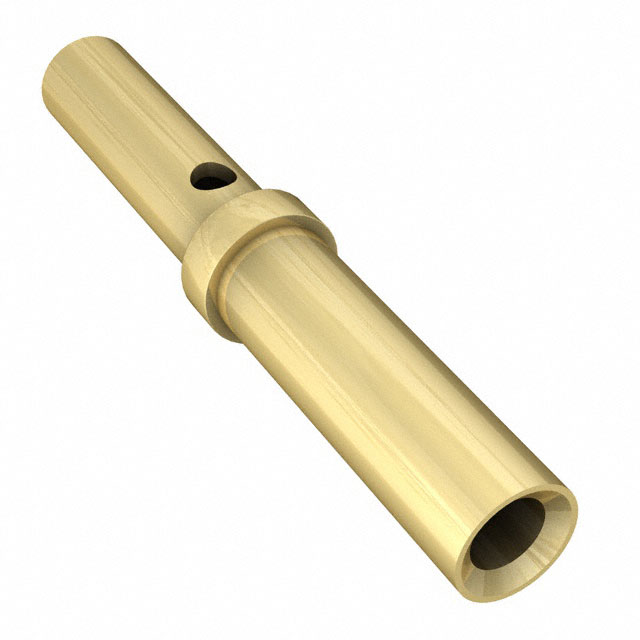

CONN PIN RCPT .032-.046 SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Socket Depth | Socket Depth | Contact Finish | Termination | Tail Type | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.093 in | 2.36 mm | 1.63 mm | 0.064 in | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | Beryllium Copper | 30 Áin | 0.76 Ám | 0.2 in | 5.08 mm | Gold | Solder | Crimp | 13.16 mm | 0.518 in |
