1825094 Series

Catalog

CONN IC DIP SOCKET 14POS GOLD

Part	Type	Type	Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Material - Mating	Mounting Type	Material Flammability Rating	Pitch - Post	Pitch - Post	Housing Material	Termination Post Length [x]	Termination Post Length [x]	Number of Positions or Pins (Grid)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Resistance	Contact Finish - Mating	Contact Material - Post	Contact Finish - Post

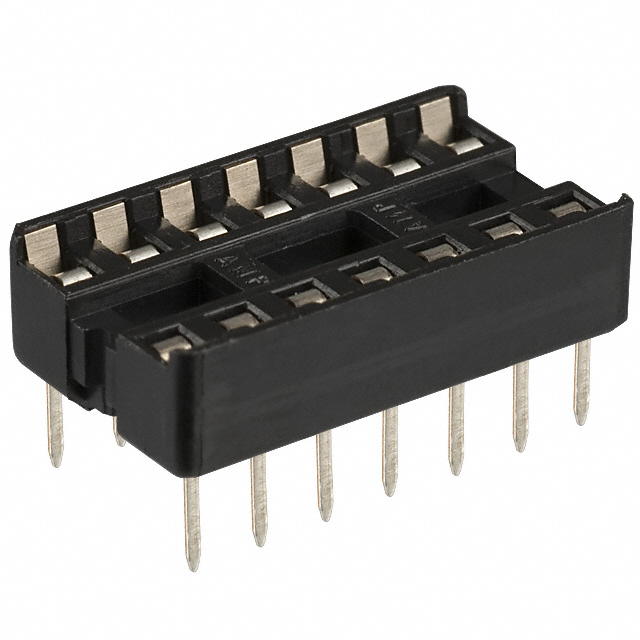

TE Connectivity Raychem Cable Protection 1-1825094-3	0.3 "	7.62 mm	DIP	Solder	30 Áin	0.76 Ám	0.1 in	2.54 mm	Beryllium Copper	Through Hole	UL94 V-0	2.54 mm	0.1 in	Thermoplastic Glass Filled	0.128 in	3.24 mm	14	-55 °C	125 °C	Closed Frame	30 µin	0.76 µm	30 mOhm	Gold	Beryllium Copper	Gold
TE Connectivity Raychem Cable Protection 1-1825094-7	0.3 "	7.62 mm	DIP	Solder	30 Áin	0.76 Ám	0.1 in	2.54 mm	Beryllium Copper	Through Hole	UL94 V-0	2.54 mm	0.1 in	Thermoplastic Glass Filled	0.128 in	3.24 mm	24	-55 °C	125 °C	Closed Frame	30 µin	0.76 µm	30 mOhm	Gold	Beryllium Copper	Gold

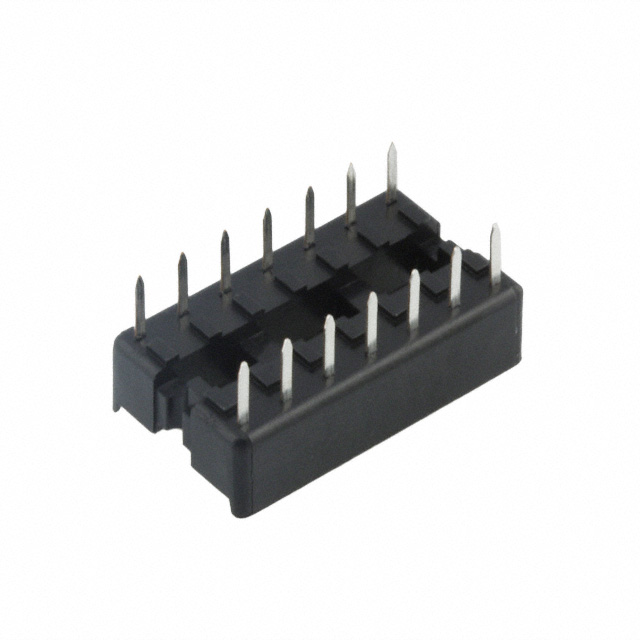

TE Connectivity Raychem Cable Protection 1825094-3	0.3 "	7.62 mm	DIP	Solder	15 µin	0.38 µm	0.1 in	2.54 mm	Phosphor Bronze	Through Hole	UL94 V-0	2.54 mm	0.1 in	Thermoplastic Glass Filled	0.128 in	3.24 mm	14	-55 °C	125 °C	Closed Frame	15 µin	0.38 µm	30 mOhm	Gold	Phosphor Bronze	Gold
