430027 Series

Catalog

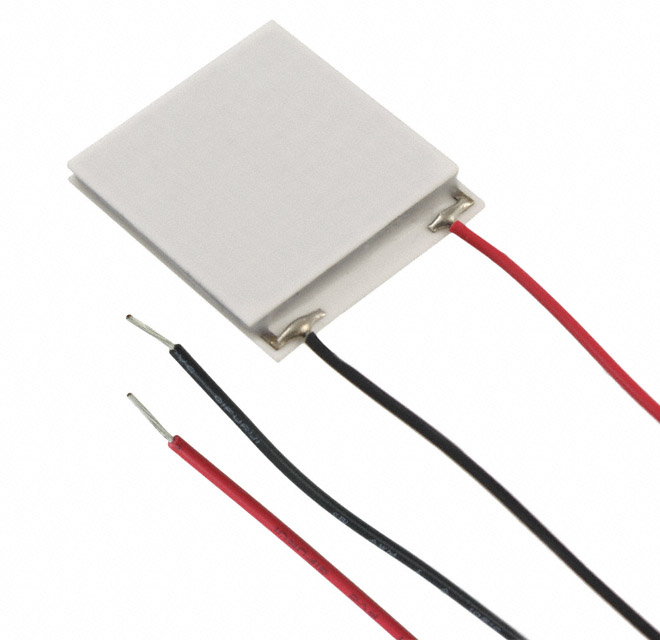

PELTIER MOD 34X30X3.81MM 6A

Part	Size / Dimension [x]	Size / Dimension [y]	Voltage - Max [Max]	Resistance	Qmax @ Th	Number of Stages	Features	Height [z]	Current - Max [Max]	Operating Temperature	Delta Tmax @ Th

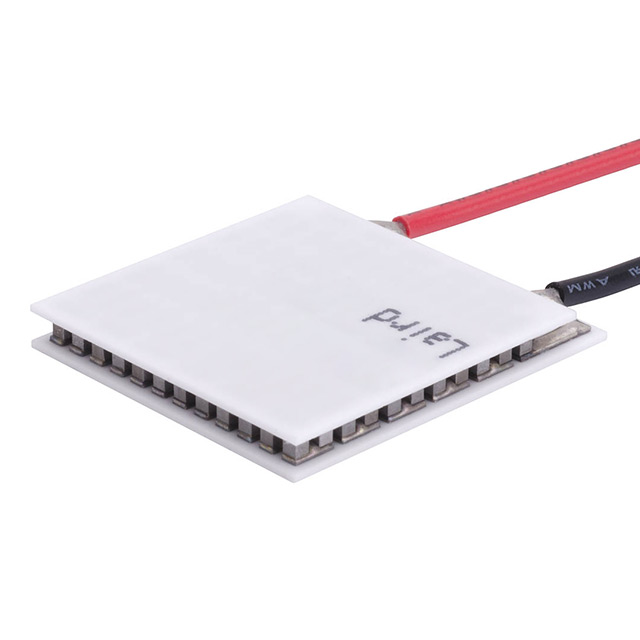

Laird Thermal Systems, Inc. 430027-501	34 mm	30 mm	8 V	1.22 Ohms	29.2 W	1	Lead Wires Non-Sealed	3.81 mm	6 A	80 °C	65 °C
Laird Thermal Systems, Inc. 430027-508	34 mm	30 mm	8 V	1.22 Ohms	29.2 W	1	Lead Wires Sealed - Silicone RTV	3.81 mm	6 A	80 °C	65 °C
