THS4150 Series

150MHz, Fully Differential Input/Output High Slew Rate Amplifier With Shutdown

Catalog

150MHz, Fully Differential Input/Output High Slew Rate Amplifier With Shutdown

Part	Amplifier Type	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	-3db Bandwidth	Package / Case	Package / Case [y]	Package / Case [x]	Output Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Input Bias	Gain Bandwidth Product	Slew Rate	Current - Supply	Supplier Device Package	Number of Circuits	Voltage - Supply Span (Min) [Min]	Current - Output / Channel	Channels per IC	Board Type	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Utilized IC / Part	Current - Supply (Main IC)	Supplied Contents	Package / Case [custom]
Texas Instruments THS4150CDG4	Differential	33 V	1.1 mV	150 MHz	8-SOIC	3.9 mm	0.154 in	Differential	Surface Mount	70 °C	0 °C	4.3 µA	340 MHz	650 V/µs	17.5 mA	8-SOIC	1	4 V
Texas Instruments THS4150CDR	Differential	33 V	1.1 mV	150 MHz	8-SOIC	3.9 mm	0.154 in	Differential	Surface Mount	70 °C	0 °C	4.3 µA	340 MHz	650 V/µs	17.5 mA	8-SOIC	1	4 V	85 mA

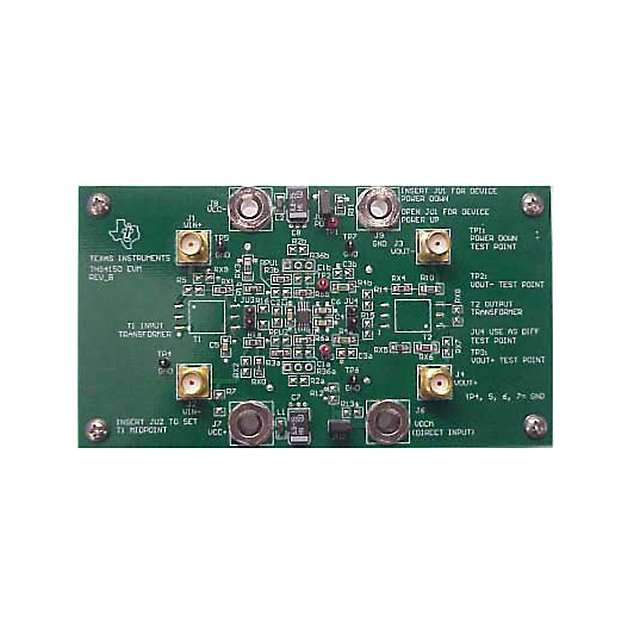

Texas Instruments THS4150EVM	Differential			150 MHz				Differential						650 V/µs					85 mA	1 - Single	Fully Populated	-2 V 4 V	16.5 V 33 V	THS4150	17.5 mA	Board(s)
Texas Instruments THS4150CDGNR	Differential	33 V	1.1 mV	150 MHz	8-MSOP 8-TSSOP Exposed Pad			Differential	Surface Mount	70 °C	0 °C	4.3 µA	340 MHz	650 V/µs	17.5 mA	8-HVSSOP	1	4 V	85 mA								0.118 in 3 mm
Texas Instruments THS4150CD	Differential	33 V	1.1 mV	150 MHz	8-SOIC	3.9 mm	0.154 in	Differential	Surface Mount	70 °C	0 °C	4.3 µA	340 MHz	650 V/µs	17.5 mA	8-SOIC	1	4 V	85 mA
Texas Instruments THS4150IDGN	Differential	33 V	1.1 mV	150 MHz	8-MSOP 8-TSSOP Exposed Pad			Differential	Surface Mount	85 °C	-40 °C	4.3 µA	340 MHz	650 V/µs	17.5 mA	8-HVSSOP	1	4 V	85 mA								0.118 in 3 mm
Texas Instruments THS4150ID	Differential	33 V	1.1 mV	150 MHz	8-SOIC	3.9 mm	0.154 in	Differential	Surface Mount	85 °C	-40 °C	4.3 µA	340 MHz	650 V/µs	17.5 mA	8-SOIC	1	4 V	85 mA
Texas Instruments THS4150IDGNR	Differential	33 V	1.1 mV	150 MHz	8-MSOP 8-TSSOP Exposed Pad			Differential	Surface Mount	85 °C	-40 °C	4.3 µA	340 MHz	650 V/µs	17.5 mA	8-HVSSOP	1	4 V	85 mA								0.118 in 3 mm

Catalog

150MHz, Fully Differential Input/Output High Slew Rate Amplifier With Shutdown

Key Features

• High Performance150 MHz -3 dB Bandwidth (VCC= ±5 V)650 V/μs Slew Rate (VCC= ±15 V)-89 dB Third Harmonic Distortion at 1 MHz-83 dB Total Harmonic Distortion at 1 MHz7.6 nV/HzInput-Referred NoiseDifferential Input/Differential OutputBalanced Outputs Reject Common-Mode NoiseDifferential Reduced Second Harmonic DistortionWide Power-Supply RangeVCC= 5 V Single-Supply to ±15 V Dual SupplyICC(SD)= 1 mA (VCC= ±5) in Shutdown Mode (THS4150)APPLICATIONSSingle-Ended to Differential ConversionDifferential ADC DriverDifferential AntialiasingDifferential Transmitter and ReceiverOutput Level ShifterPowerPAD is a trademark of Texas Instruments.All other trademarks are the property of their respective owners.High Performance150 MHz -3 dB Bandwidth (VCC= ±5 V)650 V/μs Slew Rate (VCC= ±15 V)-89 dB Third Harmonic Distortion at 1 MHz-83 dB Total Harmonic Distortion at 1 MHz7.6 nV/HzInput-Referred NoiseDifferential Input/Differential OutputBalanced Outputs Reject Common-Mode NoiseDifferential Reduced Second Harmonic DistortionWide Power-Supply RangeVCC= 5 V Single-Supply to ±15 V Dual SupplyICC(SD)= 1 mA (VCC= ±5) in Shutdown Mode (THS4150)APPLICATIONSSingle-Ended to Differential ConversionDifferential ADC DriverDifferential AntialiasingDifferential Transmitter and ReceiverOutput Level ShifterPowerPAD is a trademark of Texas Instruments.All other trademarks are the property of their respective owners.

Description

The THS415x is one in a family of fully differential input/differential output devices fabricated using Texas Instruments' state-of-the-art BiComI complementary bipolar process. The THS415x is made of a true fully-differential signal path from input to output. This design leads to an excellent common-mode noise rejection and improved total harmonic distortion. The THS415x is one in a family of fully differential input/differential output devices fabricated using Texas Instruments' state-of-the-art BiComI complementary bipolar process. The THS415x is made of a true fully-differential signal path from input to output. This design leads to an excellent common-mode noise rejection and improved total harmonic distortion.
