421 Series
Manufacturer: EDAC Inc.
Beta
⌘K

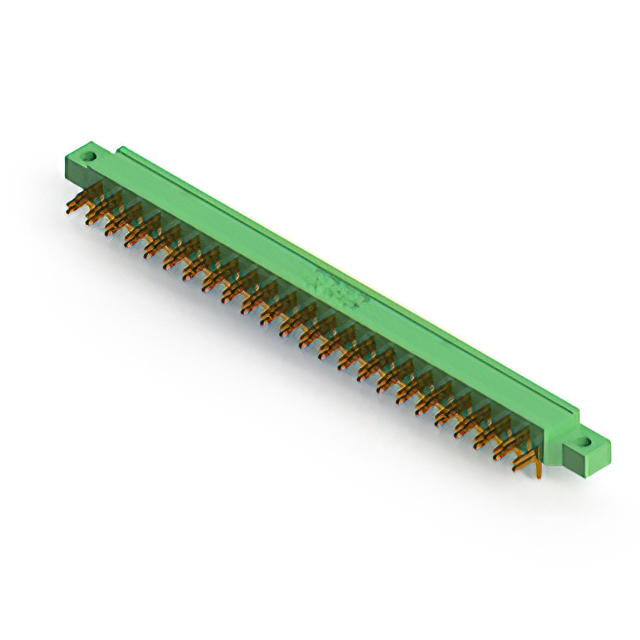

STANDARD CARD EDGE CONNECTORS METAL TO METAL
| Part | Color | Card Type | Number of Positions | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Number of Rows [custom] | Termination | Contact Finish | Pitch | Pitch | Gender | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Termination Rows [custom] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Green | Non Specified - Dual Edge | 41 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Copper Alloy | 0.093 " | 0.062 in | 1.57 mm | 2.36 mm | 2 | Solder | Gold | 5.08 mm | 0.2 in | Female | Right Angle Through Hole | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Green | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Copper Alloy | 0.093 " | 0.062 in | 1.57 mm | 2.36 mm | 2 | Solder | Gold | 5.08 mm | 0.2 in | Female | Right Angle Through Hole | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | 2 | 47 |
