E2A3-S08 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

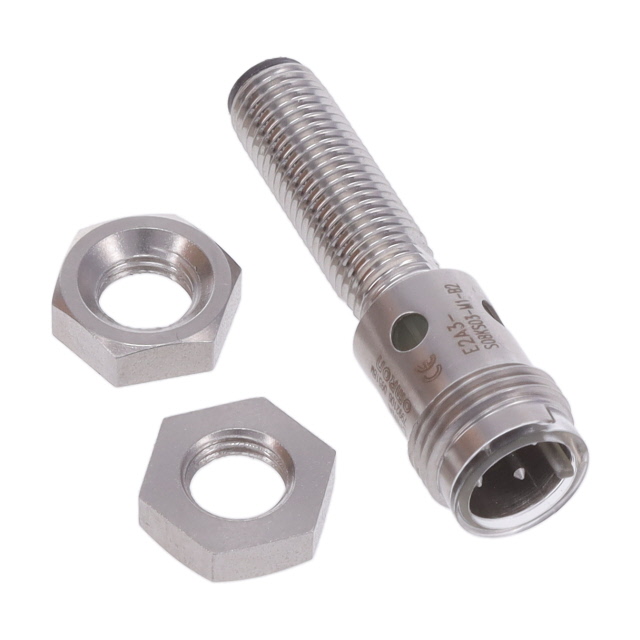

SENSOR PROX INDUCTIVE 3MM CYLIND
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Material - Body | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensing Distance | Sensing Distance | Output Type | Response Frequency | Shielding | Termination Style | Indicator [custom] | Ingress Protection | Sensor Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 70 °C | -25 °C | Stainless Steel | 10 VDC | 32 VDC | 3 mm | 0.118 in | PNP-NO 3-Wire | 700 Hz | Shielded | Cable Leads | LED | IP67 IP69K | Inductive | Cylinder Threaded - M8 |
 Omron Electronics Inc-EMC Div | 70 °C | -25 °C | Stainless Steel | 10 VDC | 32 VDC | 3 mm | 0.118 in | PNP-NC 3-Wire | 700 Hz | Shielded | Connector | LED | IP67 IP69K | Inductive | Cylinder Threaded - M8 |
Omron Electronics Inc-EMC Div | 70 °C | -25 °C | Stainless Steel | 10 VDC | 32 VDC | 3 mm | 0.118 in | PNP-NO 3-Wire | 700 Hz | Shielded | Connector | LED | IP67 IP69K | Inductive | Cylinder Threaded - M8 |
