LB15WGG01 Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Mechanical Life	Electrical Life	Ingress Protection	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Mounting Type	Actuator Marking	Color - Actuator/Cap	Circuit	Illumination Voltage (Nominal)	Actuator Type	Type	Termination Style

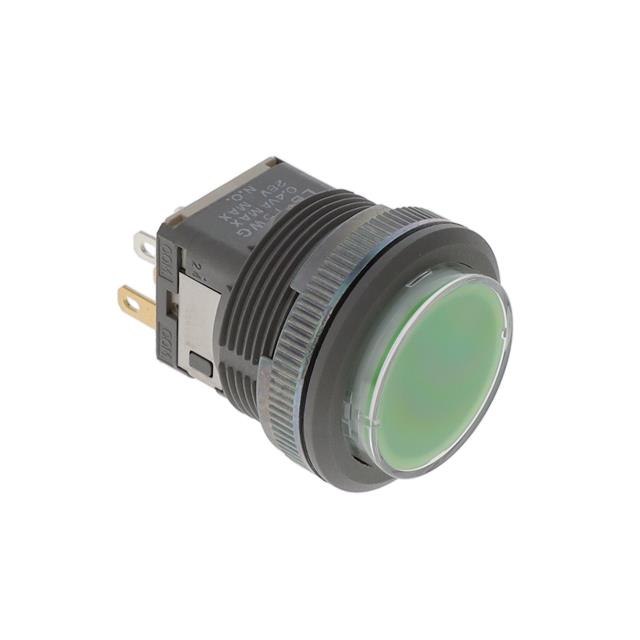

NKK Switches LB15WGG01-5F24-JF	1000000 Cycles	100000 Cycles	IP65 - Dust Tight Water Resistant	28 V	50 °C	-25 °C	Green LED	28 V	On-Mom	0.4 VA	22 mm	Panel Mount Front	No Marking	Clear	SPDT	24 V	Button Round	Illuminated Standard	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB15WGG01-6B-JB	1000000 Cycles	100000 Cycles	IP65 - Dust Tight Water Resistant	28 V	50 °C	-25 °C	LED White	28 V	On-Mom	0.4 VA	22 mm	Panel Mount Front	No Marking	Clear	SPDT	3.3 VDC	Button Round	Illuminated Standard	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB15WGG01-5F-JF	1000000 Cycles	100000 Cycles	IP65 - Dust Tight Water Resistant	28 V	50 °C	-25 °C	Green LED	28 V	On-Mom	0.4 VA	22 mm	Panel Mount Front	No Marking	Clear	SPDT	2.1 VDC	Button Round	Illuminated Standard	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB15WGG01-5D24-JB	1000000 Cycles	100000 Cycles	IP65 - Dust Tight Water Resistant	28 V	50 °C	-25 °C	Amber LED	28 V	On-Mom	0.4 VA	22 mm	Panel Mount Front	No Marking	Clear	SPDT	24 V	Button Round	Illuminated Standard	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB15WGG01-BJ	1000000 Cycles	100000 Cycles	IP65 - Dust Tight Water Resistant	28 V	70 °C	-25 °C		28 V	On-Mom	0.4 VA	22 mm	Panel Mount Front	No Marking	White	SPDT		Button Round	Standard	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB15WGG01-5C-JC	1000000 Cycles	100000 Cycles	IP65 - Dust Tight Water Resistant	28 V	50 °C	-25 °C	LED Red	28 V	On-Mom	0.4 VA	22 mm	Panel Mount Front	No Marking	Clear	SPDT	1.9 VDC	Button Round	Illuminated Standard	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB15WGG01-CJ	1000000 Cycles	100000 Cycles	IP65 - Dust Tight Water Resistant	28 V	70 °C	-25 °C		28 V	On-Mom	0.4 VA	22 mm	Panel Mount Front	No Marking	Red	SPDT		Button Round	Standard	Solder Quick Connect - 0.110" (2.8mm)
