LMZ10504 Series
Manufacturer: Texas Instruments
Beta
⌘K
5.5V, 4A POWER MODULE IN LEADED SURFACE MOUNT TO PACKAGE
| Part | Voltage - Input (Min) [Min] | Package / Case | Number of Outputs | Efficiency | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Features | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Type | Mounting Type | Main Purpose | Board Type | Frequency - Switching | Regulator Topology | Outputs and Type | Outputs and Type | Voltage - Output | Supplied Contents | Utilized IC / Part | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 2.95 V | TO-PMOD-7 Power Module | 1 | 96 % | 0.8 V | 5 V | 0.4 in | 9.9 mm | 4.6 mm | 10.2 mm | 0.39 " | 0.18 " | UVLO | 4 A | 5.5 V | TO-PMOD-7 | 125 °C | -40 °C | ITE (Commercial) | Non-Isolated PoL Module | Surface Mount | ||||||||||
 Texas Instruments | 2.95 V | TO-PMOD-7 Power Module | 1 | 96 % | 0.8 V | 5 V | 0.4 in | 9.9 mm | 4.6 mm | 10.2 mm | 0.39 " | 0.18 " | OCP OTP SCP UVLO | 4 A | 5.5 V | TO-PMOD-7 | 125 °C | -40 °C | ITE (Commercial) | Non-Isolated PoL Module | Surface Mount | ||||||||||

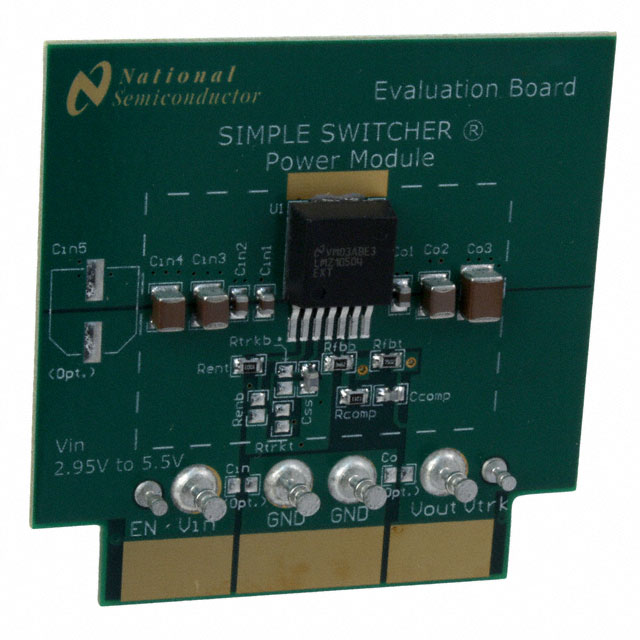

 Texas Instruments | DC/DC Step Down | Fully Populated | 1 MHz | Buck | Non-Isolated | 1 | 2.5 V | Board(s) | LMZ10504EXT | 4 A | |||||||||||||||||||||

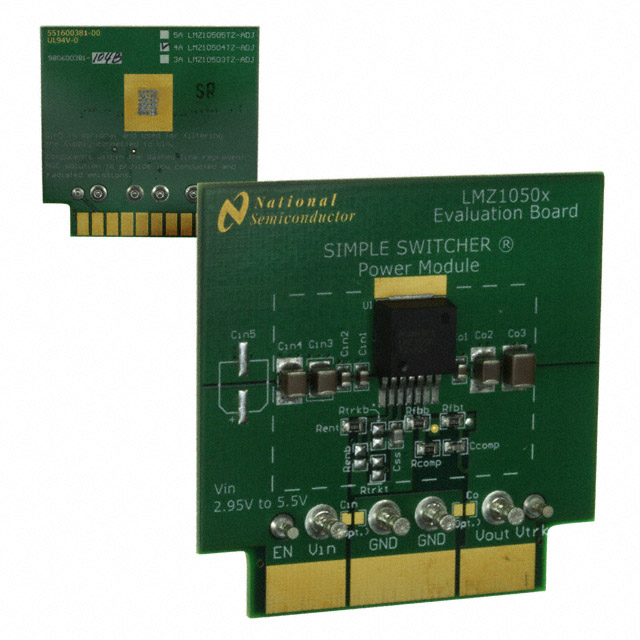

 Texas Instruments | DC/DC Step Down | Fully Populated | 1 MHz | Buck | Non-Isolated | 1 | 2.5 V | Board(s) | LMZ10504 | 4 A |
