LP38511-ADJ Series

800-mA, adjustable low-dropout voltage regulator with enable

Catalog

800-mA, adjustable low-dropout voltage regulator with enable

Part	Output Configuration	Current - Supply (Max) [Max]	Supplier Device Package	Control Features	Number of Regulators	Voltage - Output (Min/Fixed)	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Iq)	PSRR [Min]	PSRR [Max]	Voltage - Input (Max) [Max]	Current - Output	Package / Case	Protection Features	Voltage Dropout (Max) [Max]	Mounting Type	Voltage - Output (Max) [Max]	Package / Case [y]	Package / Case [x]	Output Type	Voltage - Output (Min/Fixed) [Min]	Channels per IC	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Board Type	Regulator Type	Utilized IC / Part
Texas Instruments LP38511TS-1.8/NOPB	Positive	13 mA	TO-263 (DDPAK-5)	Enable	1	1.8 V	1.81 mOhm	125 °C	-40 °C	3.5 µA	70 dB	73 dB	5.5 V	800 mA	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	Over Current Over Temperature Short Circuit	0.26 V	Surface Mount
Texas Instruments LP38511MRX-ADJ/NOPB	Positive	13 mA	8-SO PowerPad	Enable	1			125 °C	-40 °C	3.5 µA	70 dB	73 dB	5.5 V	800 mA	8-PowerSOIC	Over Current Over Temperature Short Circuit	0.26 V	Surface Mount	3.3 V	3.9 mm	0.154 in	Adjustable	0.5 V

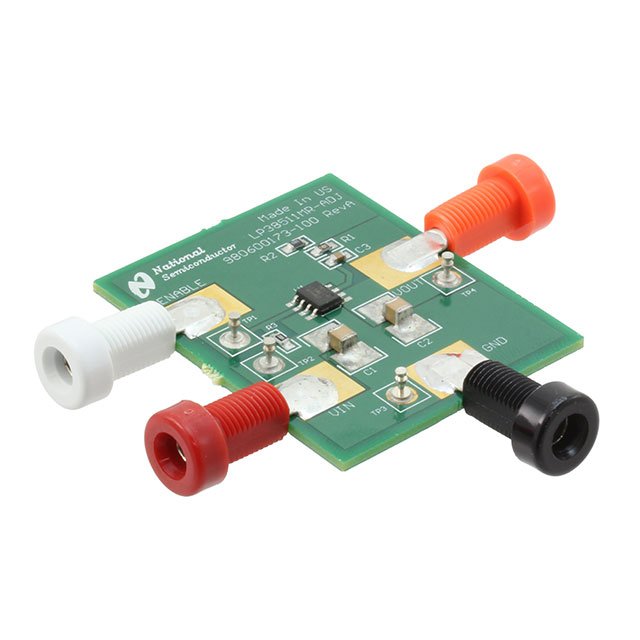

Texas Instruments LP38511MR-ADJEV/NOPB														800 mA										1 - Single	Board(s)	2.25 V	5.5 V	1.2 V	Fully Populated	Positive Adjustable	LP38511

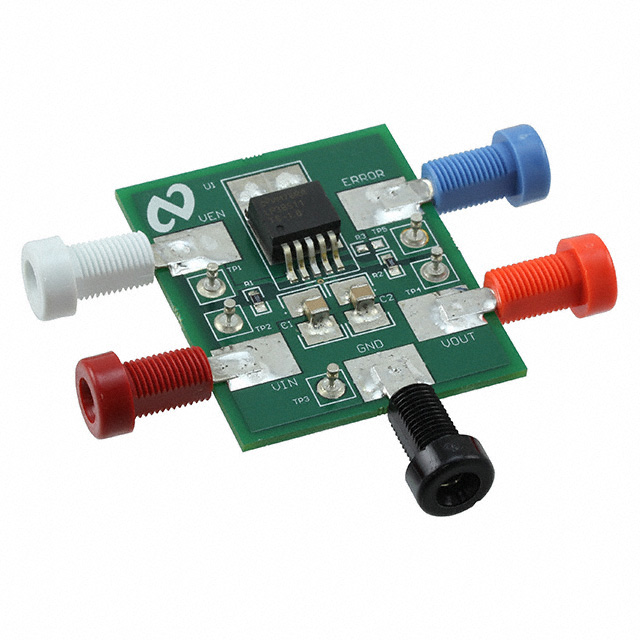

Texas Instruments LP38511TS-1.8EV														800 mA										1 - Single	Board(s)	2.25 V	5.5 V	1.8 V	Fully Populated	Positive Fixed	LP38511

Catalog

800-mA, adjustable low-dropout voltage regulator with enable

Key Features

• 2.25V to 5.5V Input Voltage RangeAdjustable Output Voltage Range of 0.5V to 3.3V800mA Output Load Current±2.0% Accuracy over Line, Load, and Full-Temperature Range from -40°C to +125°CStable with Tiny 10 uF Ceramic CapacitorsEnable PinTypically Less than 1uA of Ground Pin Current with Enable Pin Low25dB of PSRR at 100 kHzOver-Temperature and Over-Current Protection8-Pin SO PowerPad and 5-Pin PFM Surface Mount PackagesAll trademarks are the property of their respective owners.2.25V to 5.5V Input Voltage RangeAdjustable Output Voltage Range of 0.5V to 3.3V800mA Output Load Current±2.0% Accuracy over Line, Load, and Full-Temperature Range from -40°C to +125°CStable with Tiny 10 uF Ceramic CapacitorsEnable PinTypically Less than 1uA of Ground Pin Current with Enable Pin Low25dB of PSRR at 100 kHzOver-Temperature and Over-Current Protection8-Pin SO PowerPad and 5-Pin PFM Surface Mount PackagesAll trademarks are the property of their respective owners.

Description

The LP38511-ADJ Fast-Transient Response Low-Dropout Voltage Regulator offers the highest-performance in meeting AC and DC accuracy requirements for powering Digital Cores. The LP38511-ADJ uses a proprietary control loop that enables extremely fast response to change in line conditions and load demands. Output Voltage DC accuracy is specified at 2.5% over line, load and full temperature range from -40°C to +125°C. The LP38511-ADJ is designed for inputs from the 2.5V, 3.3V, and 5.0V rail, is stable with 10 uF ceramic capacitors, and has an adjustable output voltage. The LP38511-ADJ provides excellent transient performance to meet the demand of high performance digital core ASICs, DSPs, and FPGAs found in highly-intensive applications such as servers, routers/switches, and base stations. The LP38511-ADJ Fast-Transient Response Low-Dropout Voltage Regulator offers the highest-performance in meeting AC and DC accuracy requirements for powering Digital Cores. The LP38511-ADJ uses a proprietary control loop that enables extremely fast response to change in line conditions and load demands. Output Voltage DC accuracy is specified at 2.5% over line, load and full temperature range from -40°C to +125°C. The LP38511-ADJ is designed for inputs from the 2.5V, 3.3V, and 5.0V rail, is stable with 10 uF ceramic capacitors, and has an adjustable output voltage. The LP38511-ADJ provides excellent transient performance to meet the demand of high performance digital core ASICs, DSPs, and FPGAs found in highly-intensive applications such as servers, routers/switches, and base stations.
