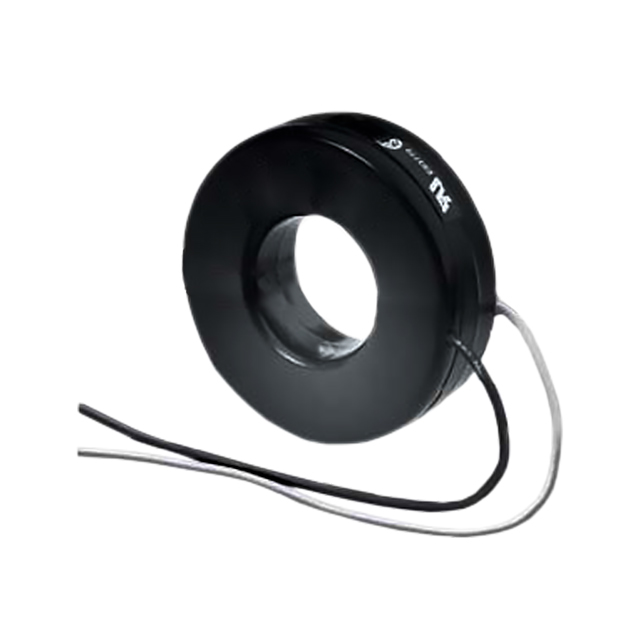

7020 Series

Catalog

CURR SENSE XFMR 5A IN-LINE

Part	Weight	Weight	Size / Dimension [diameter]	Size / Dimension	Current Rating (Amps)	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Ratio	Type	Termination Style	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]
Murata Electronics 7020-01043-0	680.39 g	1.5 lbs	1.13 in	28.7 mm	5 A	400 Hz	50 Hz	Free Hanging (In-Line)	114.3 mm	4.5 in	750:5	Non-Invasive (Solid Core)	Wire Leads
Murata Electronics 7020-01044-0	680.39 g	1.5 lbs	1.13 in	28.7 mm	5 A	400 Hz	50 Hz	Free Hanging (In-Line)	114.3 mm	4.5 in	1000:5	Non-Invasive (Solid Core)	Wire Leads
Murata Electronics 7020-01041-0	680.39 g	1.5 lbs	2.7 in		5 A	400 Hz	50 Hz	Free Hanging (In-Line)			250:5	Non-Invasive (Solid Core)	Wire Leads	35.6 mm	1.402 in	68.6 mm
Murata Electronics 7020-01046-0	680.39 g	1.5 lbs	1.13 in	28.7 mm	5 A	400 Hz	50 Hz	Free Hanging (In-Line)	114.3 mm	4.5 in	2000:5	Non-Invasive (Solid Core)	Wire Leads
Murata Electronics 7020-01038-0	453.59 g	1 lbs	2.701 in		5 A	400 Hz	50 Hz	Free Hanging (In-Line)			100:5	Non-Invasive (Solid Core)	Wire Leads	35.6 mm	1.402 in	68.6 mm
Murata Electronics 7020-01045-0	680.39 g	1.5 lbs	1.13 in	28.7 mm	5 A	400 Hz	50 Hz	Free Hanging (In-Line)	114.3 mm	4.5 in	1500:5	Non-Invasive (Solid Core)	Wire Leads
Murata Electronics 7020-01039-0	680.39 g	1.5 lbs	2.7 in		5 A	400 Hz	50 Hz	Free Hanging (In-Line)			150:5	Non-Invasive (Solid Core)	Wire Leads	35.6 mm	1.402 in	68.6 mm
Murata Electronics 7020-01037-0	680.39 g	1.5 lbs	2.7 in		5 A	400 Hz	50 Hz	Free Hanging (In-Line)			75:5	Non-Invasive (Solid Core)	Wire Leads	35.6 mm	1.402 in	68.6 mm
