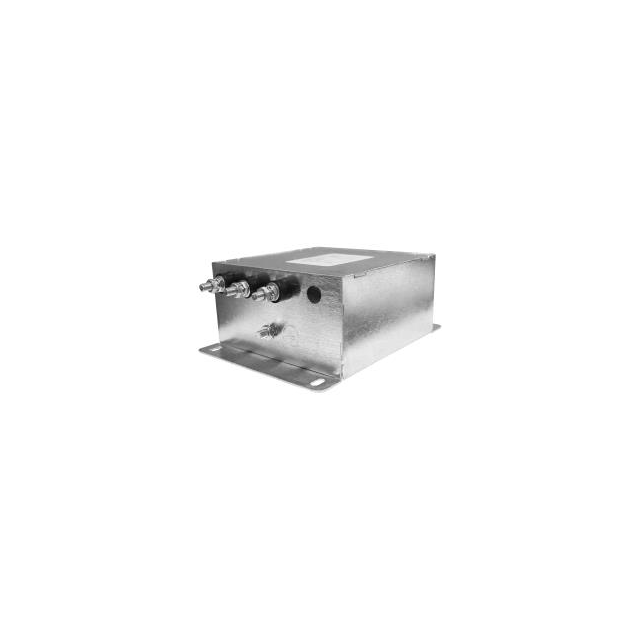

RPM8500 Series
Manufacturer: Astrodyne TDI
Beta
⌘K
LINE FILTER 480VAC 125A CHASSIS
| Part | Mounting Type | Current | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Operating [Max] | Frequency - Operating [Min] | Configuration | Voltage - Rated AC (Phase to Ground/Neutral) | Filter Type | Voltage - Rated AC | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Astrodyne TDI | Chassis Mount | 125 A | -40 C | 100 °C | 60 Hz 400 Hz | 50 Hz | Two Stage | 1.8 kV | Three Phase (Delta) | 480 V | Threaded Post |
Astrodyne TDI | Chassis Mount | 50 A | -40 C | 100 °C | 60 Hz 400 Hz | 50 Hz | Two Stage | 1.8 kV | Three Phase (Delta) | 480 V | Threaded Post (M5) |
Astrodyne TDI | Chassis Mount | 10 A | -40 C | 100 °C | 60 Hz 400 Hz | 50 Hz | Two Stage | 1.8 kV | Three Phase (Delta) | 480 V | Threaded Post (M5) |
Astrodyne TDI | Chassis Mount | 30 A | -40 C | 100 °C | 60 Hz 400 Hz | 50 Hz | Two Stage | 1.8 kV | Three Phase (Delta) | 480 V | Threaded Post (M5) |
Astrodyne TDI | Chassis Mount | 20 A | -40 C | 100 °C | 60 Hz 400 Hz | 50 Hz | Two Stage | 1.8 kV | Three Phase (Delta) | 480 V | Threaded Post (M5) |
Astrodyne TDI | Chassis Mount | 5 A | -40 C | 100 °C | 60 Hz 400 Hz | 50 Hz | Two Stage | 1.8 kV | Three Phase (Delta) | 480 V | Threaded Post (M5) |
Astrodyne TDI | Chassis Mount | 150 A | -40 C | 100 °C | 60 Hz 400 Hz | 50 Hz | Two Stage | 1.8 kV | Three Phase (Delta) | 480 V | Threaded Post |
Astrodyne TDI | Chassis Mount | 70 A | -40 C | 100 °C | 60 Hz 400 Hz | 50 Hz | Two Stage | 1.8 kV | Three Phase (Delta) | 480 V | Threaded Post (M6) |
