MPM3570 Series
Manufacturer: MONOLITHIC POWER SYSTEMS (MPS)
Beta
⌘K
DC-DC REGULATED POWER SUPPLY MODULE,
| Part | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Number of Outputs | Efficiency | Applications | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Input (Min) [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

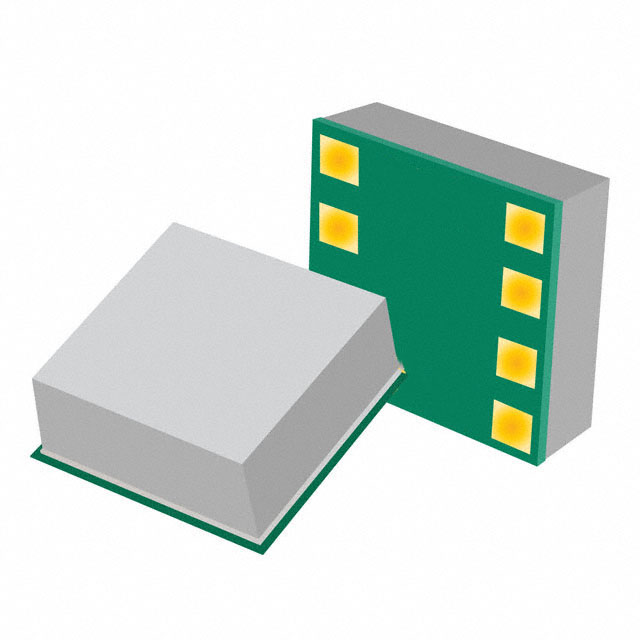

 MONOLITHIC POWER SYSTEMS (MPS) | 300 mA | 75 V | 1 V | 12 V | 1 | 88.5 % | ITE (Commercial) | OCP OTP UVLO | 0.39 " | 0.39 " | 0.17 in | 4.2 mm | 10 mm | 10 mm | 8-BLGA Module | Non-Isolated PoL Module | 125 °C | -40 °C | Surface Mount | 4.5 V | 8-LGA (10x10) |
