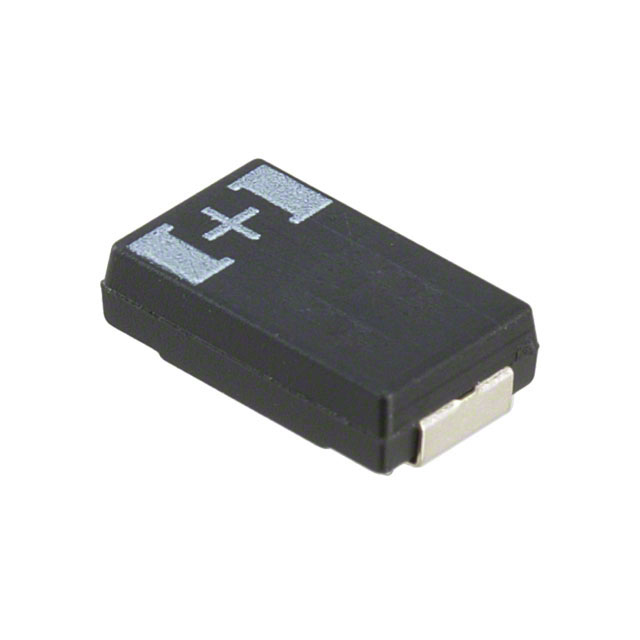

6TPF Series

Catalog

CAP TANT POLY 470UF 6.3V 2917

Part	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Manufacturer Size Code	Tolerance	Voltage - Rated	ESR (Equivalent Series Resistance)	Features	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Height - Seated (Max)	Height - Seated (Max) [Max]	Package / Case	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components 6TPF470MAH	-55 C	105 ░C	2000 Hrs	D4	20 %	6.3 VDC	10 mOhm	General Purpose	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	470 µF	4 mm	0.157 in	2917 (7343 Metric)	Molded
Panasonic Electronic Components 6TPF470MFH	-55 C	105 ░C	2000 Hrs	D4	20 %	6.3 VDC	15 mOhm		Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	470 µF	4 mm	0.157 in	2917 (7343 Metric)	Molded
Panasonic Electronic Components 6TPF330M9L	-55 C	105 ░C	2000 Hrs	D3L	20 %	6.3 VDC	9 mOhm	General Purpose	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	330 µF			2917 (7343 Metric)	Molded	0.118 "	3 mm
Panasonic Electronic Components 6TPF220M5L	-55 C	105 ░C	2000 Hrs	D3L	20 %	6.3 VDC	5 mOhm	General Purpose	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	220 µF			2917 (7343 Metric)	Molded	0.118 "	3 mm
Panasonic Electronic Components 6TPF220ML	-55 C	105 ░C	2000 Hrs	D3L	20 %	6.3 VDC	12 mOhm	General Purpose	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	220 µF			2917 (7343 Metric)	Molded	0.118 "	3 mm
Panasonic Electronic Components 6TPF220M9L	-55 C	105 ░C	2000 Hrs	D3L	20 %	6.3 VDC	9 mOhm	General Purpose	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	220 µF			2917 (7343 Metric)	Molded	0.118 "	3 mm
