1213C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

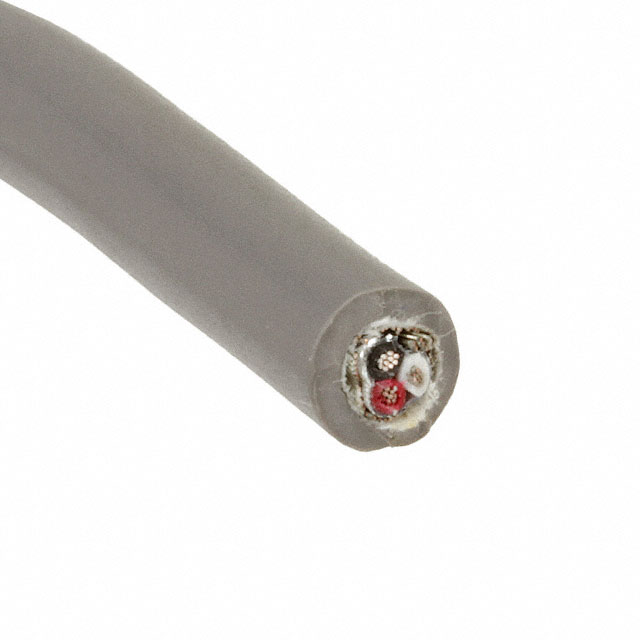

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 3 CONDUCTOR, 24 AWG, 0.23 MM², 500 FT, 152.4 M
| Part | Shield Material | Shield Coverage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Features | Conductor Material | Shield Type | Length | Length | Jacket (Insulation) Material | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Slate | 0.813 mm | 0.032 in | Multi-Conductor | 0.163 in | 4.14 mm | 300 VDC | Drain Wire | Copper Tinned | Foil | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | 3 | 24 AWG | 80 °C | -20 ░C | Communication Control |
 ALPHA WIRE | Aluminum | 100 % | Slate | 0.813 mm | 0.032 in | Multi-Conductor | 0.163 in | 4.14 mm | 300 VDC | Drain Wire | Copper Tinned | Foil | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | 3 | 24 AWG | 80 °C | -20 ░C | Communication Control |
