2SA2029 Series

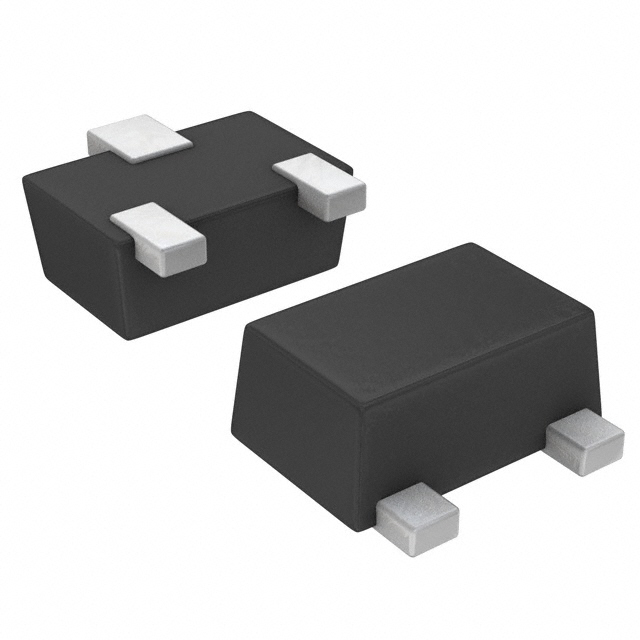

PNP, SOT-723, -50V -150mA, General Purpose Transistor

Manufacturer: Rohm Semiconductor

Catalog

PNP, SOT-723, -50V -150mA, General Purpose Transistor

Description

AI

2SA2029 is a transistor with excellent hFElinearity. Complementary is 2SC5658.

Catalog

PNP, SOT-723, -50V -150mA, General Purpose Transistor

Part	Vce Saturation (Max) @ Ib, Ic	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Supplier Device Package	Frequency - Transition	Qualification	Grade	Power - Max [Max]	Operating Temperature	Current - Collector (Ic) (Max) [Max]	Package / Case	Mounting Type	Transistor Type
Rohm Semiconductor 2SA2029FHAT2LR	500 mV	100 nA	50 V	180	VMT3	140 MHz	AEC-Q101	Automotive	150 mW	150 °C	150 mA	SOT-723	Surface Mount	PNP
Rohm Semiconductor 2SA2029T2LQ	500 mV	100 nA	50 V	120	VMT3	140 MHz			150 mW	150 °C	150 mA	SOT-723	Surface Mount	PNP
Rohm Semiconductor 2SA2029FHAT2LQ	500 mV	100 nA	50 V	120	VMT3	140 MHz	AEC-Q101	Automotive	150 mW	150 °C	150 mA	SOT-723	Surface Mount	PNP
Rohm Semiconductor 2SA2029T2LR	500 mV	100 nA	50 V	180	VMT3	140 MHz			150 mW	150 °C	150 mA	SOT-723	Surface Mount	PNP
