CWSB21FA Series
Manufacturer: NKK Switches
Beta
⌘K
ROCKER SWITCH, ILLUMINATED, DPST, ON-NONE-OFF, GREEN, PANEL MOUNT, 9 A
| Part | Electrical Life | Mechanical Life | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Type | Features | Current Rating (Amps) | Illumination Type, Color [custom] | Illumination Type, Color [custom] | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Mounting Type | Switch Function | Circuit | Voltage Rating - AC | Illumination Voltage (Nominal) | Actuator Marking | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

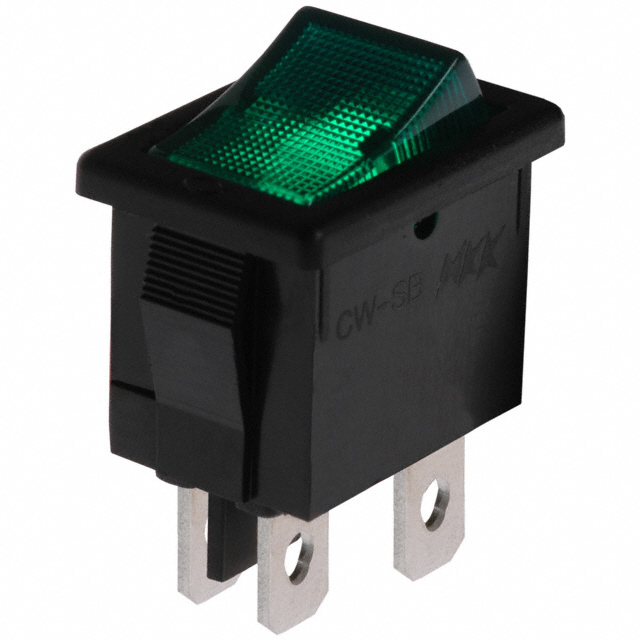

 NKK Switches | 10000 Cycles | 30000 Steps | 12.9 mm | 19.2 mm | Concave (Curved) - Illuminated | Audible Click | 9 A | Neon | Green | cULus | 85 °C | -20 ░C | Quick Connect | Panel Mount Snap-In | On-Off | DPST | 125 V | 125 VAC | No Marking | Green |

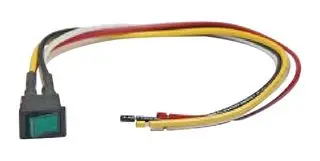

 NKK Switches | 10000 Cycles | 30000 Steps | 12.9 mm | 19.2 mm | Concave (Curved) - Illuminated | Audible Click | 9 A | Neon | Green | cULus | 85 °C | -20 ░C | Wire Leads | Panel Mount Snap-In | On-Off | DPST | 125 V | 125 VAC | No Marking | Green |
