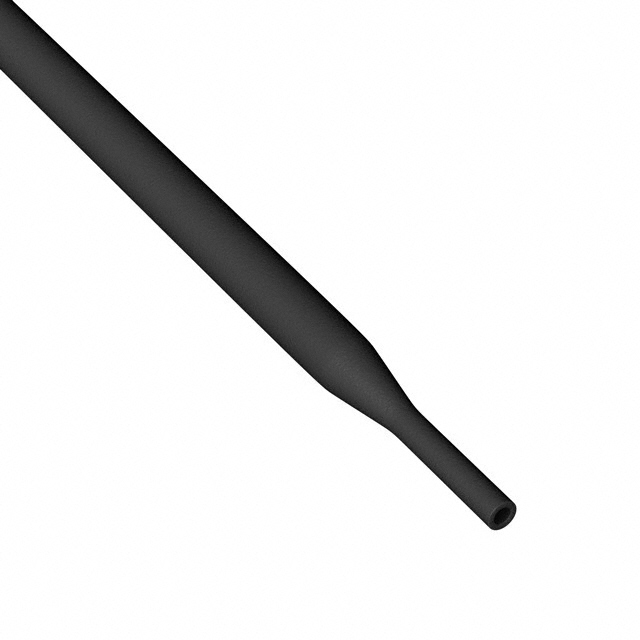

Q2-Z-1/2 Series

Manufacturer: Qualtek

Catalog

HEATSHRINK 1/2"-48" BLACK 1=1PC

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Shelf Life	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Type	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Features	Shrink Temperature	Length	Length	Length	Shelf Life Start

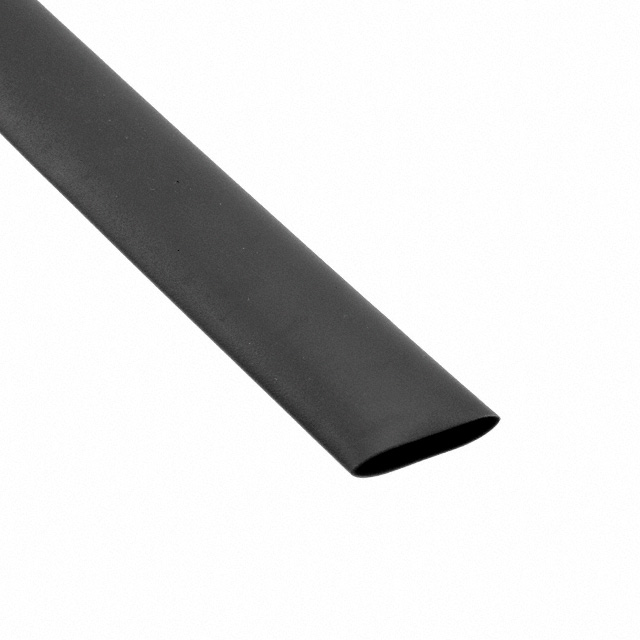

Qualtek Q2-Z-1/2-01-QB48IN-5	6.35 mm	0.25 in	Polyolefin (PO)	-55 C	125 °C	1	2	144 Months	Black	12.7 mm	0.5 "	4 ft	1.22 m	0.026 in	0.66 mm	Tubing Flexible	40 °C	14 °F	-50 °F	40 °C	Flame Retardant	70 °C
Qualtek Q2-Z-1/2-01-QB6IN-14	6.35 mm	0.25 in	Polyolefin (PO)	-55 C	125 °C	1	2	144 Months	Black	12.7 mm	0.5 "			0.026 in	0.66 mm	Tubing Flexible	40 °C	14 °F	-50 °F	40 °C	Flame Retardant	70 °C	152.4 mm	0.5 '	6 "
Qualtek Q2-Z-1/2-01-MS100FT	6.35 mm	0.25 in	Polyolefin (PO)	-55 C	125 °C	1	2	144 Months	Black	12.7 mm	0.5 "	100 ft	30.5 m	0.026 in	0.66 mm	Tubing Flexible	40 °C	14 °F	-50 °F	40 °C	Flame Retardant	70 °C				Date of Manufacture
Qualtek Q2-Z-1/2-01-QX15FT	6.35 mm	0.25 in	Polyolefin (PO)	-55 C	125 °C	1	2	144 Months	Black	12.7 mm	0.5 "			0.026 in	0.66 mm	Tubing Flexible	40 °C	14 °F	-50 °F	40 °C	Flame Retardant	70 °C	4.6 m	15 '
Qualtek Q2-Z-1/2-01-SS200FT	6.35 mm	0.25 in	Polyolefin (PO)	-55 C	125 °C	1	2	144 Months	Black	12.7 mm	0.5 "			0.026 in	0.66 mm	Tubing Flexible	40 °C	14 °F	-50 °F	40 °C	Flame Retardant	70 °C	61 m	200 ft
