FR01AC10 Series

Catalog

SW ROTARY DIP BCD COMP 0.1A 5V

Part	Electrical Life	Mechanical Life	Length	Length	Body Material	Contact Material	Termination Style	Actuator Level	Pitch	Pitch	Current Rating (Amps)	Voltage Rating	Mounting Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Height Above Board [z]	Height Above Board [z]	Circuit	Number of Positions

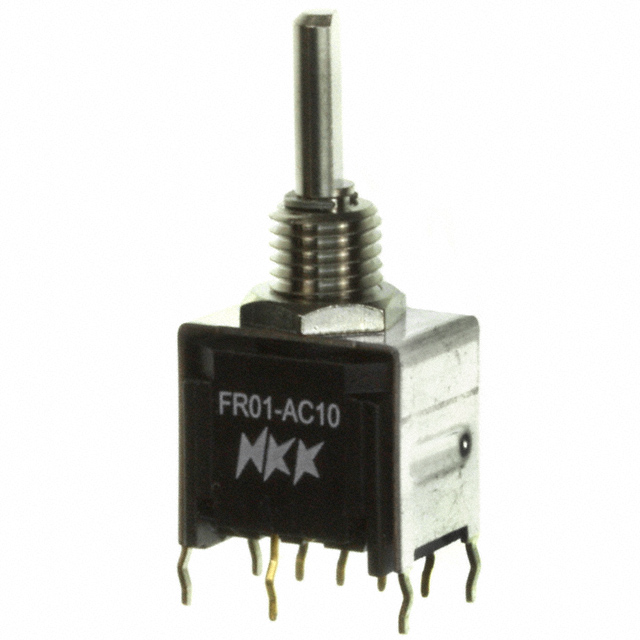

NKK Switches FR01AC10PB	10000 Cycles	10000 Steps	0.516 in	13.11 mm	Polyamide (PA) Nylon Glass Filled	Copper Alloy	PC Pin	Raised	2.54 mm	0.1 "	100 mA	5 V	Panel Mount	Gold	85 °C	-25 °C	Rotary with Shaft	28.05 mm	1.104 in	BCD Complement	10
NKK Switches FR01AC10HB-S								Raised					Through Hole				Rotary with Shaft			BCD Complement	10
NKK Switches FR01AC10PB-W	10000 Cycles	10000 Steps	0.516 in	13.11 mm	Polyamide (PA) Nylon Glass Filled	Copper Alloy	PC Pin	Raised	2.54 mm	0.1 "	100 mA	5 V	Panel Mount	Gold	85 °C	-25 °C	Rotary with Shaft	28.05 mm	1.104 in	BCD Complement	10
NKK Switches FR01AC10PB-W-S	10000 Cycles	10000 Steps	0.516 in	13.11 mm	Polyamide (PA) Nylon Glass Filled	Copper Alloy	PC Pin	Raised	2.54 mm	0.1 "	100 mA	5 V	Panel Mount	Gold	85 °C	-25 °C	Rotary with Shaft	28.05 mm	1.104 in	BCD Complement	10
