BHR-34 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HEADER VERT 34POS 2.54MM
| Part | Contact Finish Thickness - Post | Features | Shrouding | Number of Positions Loaded | Number of Positions [custom] | Contact Finish - Post | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Current Rating (Amps) | Fastening Type | Contact Type | Insulation Material | Mounting Type | Connector Type | Contact Material | Voltage Rating | Contact Finish - Mating | Termination | Style | Contact Shape | Number of Rows [custom] | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Flash | Keying Slot Polarizing Key | Shrouded - 4 Wall | All | 34 | Gold | 0.358 " | 9.1 mm | 0.1 " | 2.54 mm | Black | -40 C | 105 ░C | 0.1 in | 2.54 mm | 3 A | Push-Pull | Male Pin | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Header | Brass | 250 VAC | Gold | Solder | Board to Board Cable | Square | 2 | Flash | 0.13 " | 3.3 mm | UL94 V-0 | ||||

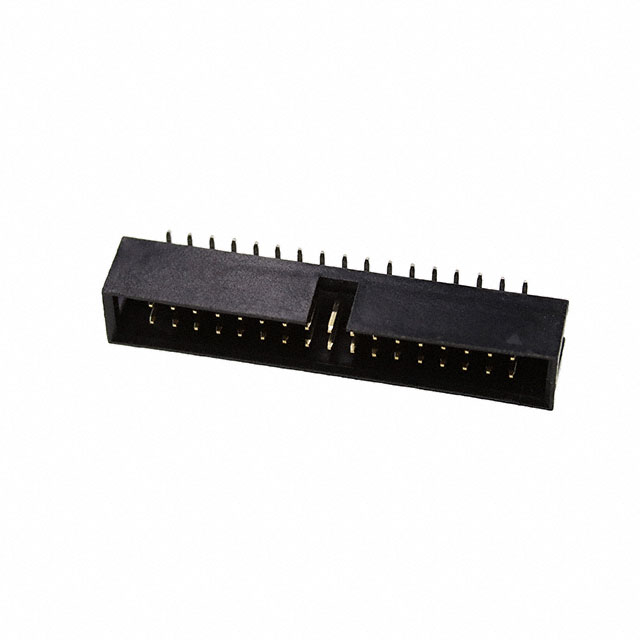

 Adam Tech | Keying Slot | Shrouded - 4 Wall | All | 34 | Tin | 0.413 in | 10.49 mm | 0.1 " | 2.54 mm | Black | -40 C | 105 ░C | 0.1 in | 2.54 mm | 3 A | Push-Pull | Male Pin | Thermoplastic | Surface Mount | Header | Brass | 250 VAC | Gold | Solder | Board to Board Cable | Square | 2 | Flash | UL94 V-0 | |||||||

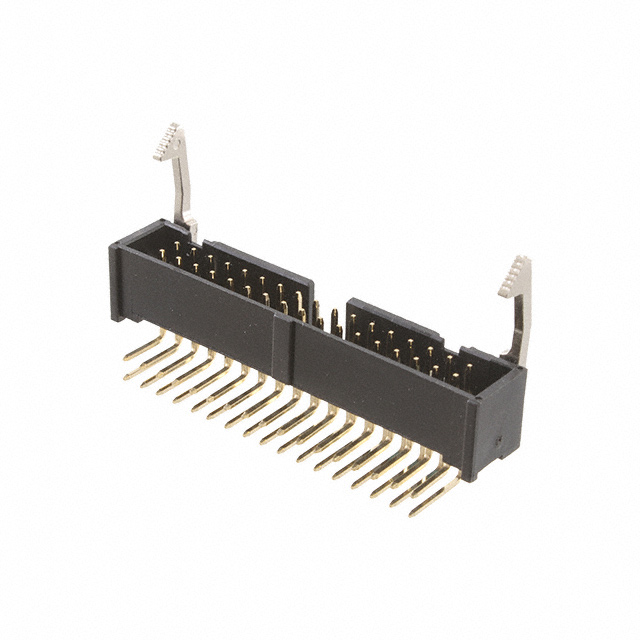

 Adam Tech | Flash | Keying Slot | Shrouded - 4 Wall | All | 34 | Gold | 0.354 in | 9 mm | 0.1 " | 2.54 mm | Black | -40 C | 105 ░C | 0.1 in | 2.54 mm | 3 A | Latch Lock/Eject Hooks Long | Male Pin | Polybutylene Terephthalate (PBT) Glass Filled | Right Angle Through Hole | Header | Brass | 350 VAC | Gold | Solder | Board to Board Cable | Square | 2 | Flash | UL94 V-0 | 0.126 " | 3.2 mm | ||||
 Adam Tech | Flash | Keying Slot Polarizing Key | Shrouded - 4 Wall | All | 34 | Gold | 0.358 " | 9.1 mm | 0.1 " | 2.54 mm | Black | -55 C | 105 ░C | 0.1 in | 2.54 mm | 3 A | Push-Pull | Male Pin | Polybutylene Terephthalate (PBT) | Through Hole | Header | Brass | 250 VAC | Gold | Solder | Board to Board Cable | Square | 2 | Flash | 0.13 " | 3.3 mm | UL94 V-0 | 8.8 mm | 0.346 in |
