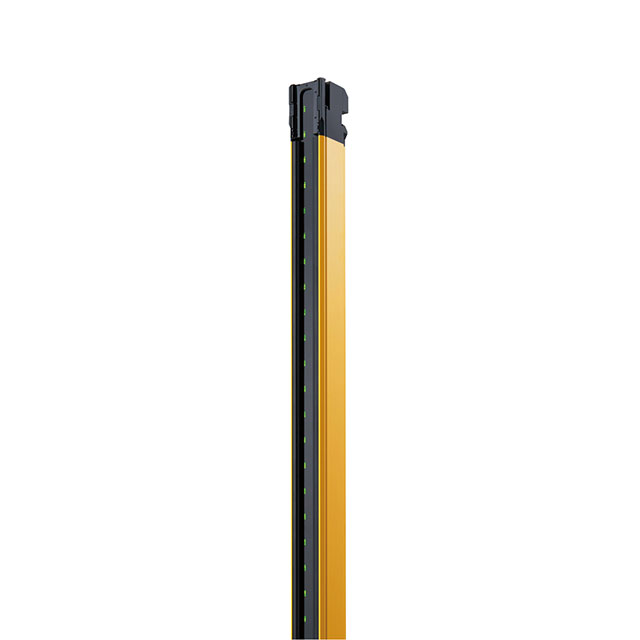

F3SG-4S Series

Safety Light Curtains GLC, Basic, Arm Safe

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

Safety Light Curtains GLC, Basic, Arm Safe

Catalog

Safety Light Curtains GLC, Basic, Arm Safe

...

Part	Protection	Detection Capability	Number of Beams [custom]	Protective Height [z]	Voltage - Supply	Beam Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Operating Range [Min]	Operating Range [Max]	Features	Ingress Protection	Number of Beams	Protective Height	Protective Height [custom]
Omron Electronics Inc-EMC Div F3SG-4SRB0480-25	Hand	25 mm	24	480 mm	24 VDC	20 mm	55 °C	-30 ░C	0.3 m	20 m	Blanking Muting Function	Dust Tight Oil Resistant Water Resistant Waterproof IP65 IP67 IP67G
Omron Electronics Inc-EMC Div F3SG-4SRA1040-25	Hand	25 mm			24 VDC	20 mm	55 °C	-30 ░C	0.3 m	20 m	Blanking Muting Function	Dust Tight Oil Resistant Water Resistant Waterproof IP65 IP67 IP67G	52	1040 mm
Omron Electronics Inc-EMC Div F3SG-4SRB1120-25	Hand	25 mm			24 VDC	20 mm	55 °C	-30 ░C	0.3 m	20 m	Blanking Muting Function	Dust Tight Oil Resistant Water Resistant Waterproof IP65 IP67 IP67G	56		1120 mm
Omron Electronics Inc-EMC Div F3SG-4SRA0640-25	Hand	25 mm			24 VDC	20 mm	55 °C	-30 ░C	0.3 m	20 m	Blanking Muting Function	Dust Tight Oil Resistant Water Resistant Waterproof IP65 IP67 IP67G	32	640 mm
Omron Electronics Inc-EMC Div F3SG-4SRB0920-14-F	Finger	14 mm	91	920 mm	24 VDC	10 mm	55 °C	-30 ░C	0.3 m	10 m	Blanking Muting Function	Dust Tight Oil Resistant Water Resistant Waterproof IP65 IP67 IP67G
Omron Electronics Inc-EMC Div F3SG-4SRA2000-14	Finger	14 mm			24 VDC	10 mm	55 °C	-30 ░C	0.3 m	10 m	Blanking Muting Function	Dust Tight Oil Resistant Water Resistant Waterproof IP65 IP67 IP67G	199		2000 mm
Omron Electronics Inc-EMC Div F3SG-4SRA0280-85	Body	85 mm	4	280 mm	24 VDC	80 mm	55 °C	-30 ░C	0.3 m	20 m	Blanking Muting Function	Dust Tight Oil Resistant Water Resistant Waterproof IP65 IP67 IP67G
Omron Electronics Inc-EMC Div F3SG-4SRB0680-14-F	Finger	14 mm		680 mm	24 VDC	10 mm	55 °C	-30 ░C	0.3 m	10 m	Blanking Muting Function	Dust Tight Oil Resistant Water Resistant Waterproof IP65 IP67 IP67G	67
Omron Electronics Inc-EMC Div F3SG-4SRA0760-14-F	Finger	14 mm			24 VDC	10 mm	55 °C	-30 ░C	0.3 m	10 m	Blanking Muting Function	Dust Tight Oil Resistant Water Resistant Waterproof IP65 IP67 IP67G	75	760 mm
Omron Electronics Inc-EMC Div F3SG-4SRB0360-25-F	Hand	25 mm	18	360 mm	24 VDC	20 mm	55 °C	-30 ░C	0.3 m	20 m	Blanking Muting Function	Dust Tight Oil Resistant Water Resistant Waterproof IP65 IP67 IP67G
