PV10 Series

Manufacturer: E-Switch

Catalog

SWITCH PB 4PST-2NO/2NC 2A 48V

Part	Mechanical Life	Electrical Life	Type	Actuator Type	Illumination Voltage (Nominal)	Actuator Marking	Switch Function	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Illumination Type, Color	Circuit	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Voltage Rating - DC	Mounting Type
E-Switch PV10F2V0SS-331	1000000 Cycles	50000 Cycles	Anti-Vandal Illuminated	Button Flush Round	2.8 VDC	No Marking	Off-Mom On-Mom	Silver	40 mm	2 A	Green LED	4PST-2NO/2NC	Solder Lug	55 °C	-20 ░C	IP65 - Dust Tight Water Resistant	48 V	Panel Mount Front

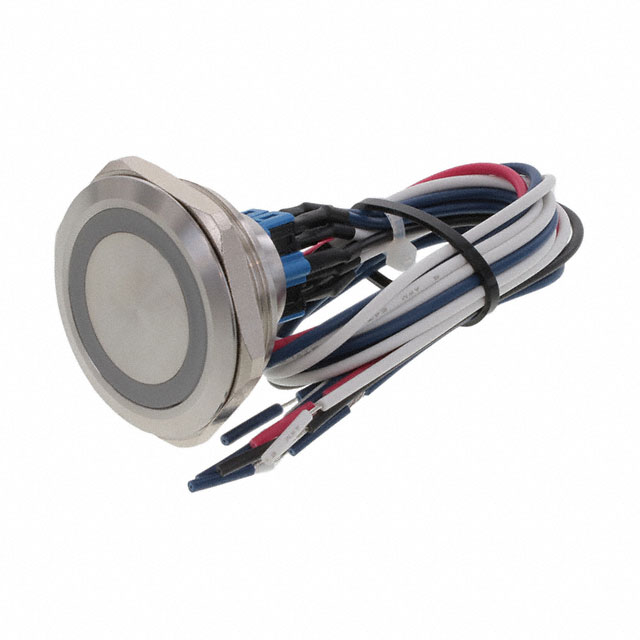

E-Switch PV10FWU0SS-341	1000000 Cycles	50000 Cycles	Anti-Vandal Illuminated	Button Flush Round	2.8 VDC	No Marking	Off-On On-Off	Silver	40 mm	2 A	Blue LED	4PST-2NO/2NC	Wire Leads	55 °C	-20 ░C	IP65 - Dust Tight Water Resistant	48 V	Panel Mount Front
E-Switch PV10F2U0SS-311	1000000 Cycles	50000 Cycles	Anti-Vandal Illuminated	Button Flush Round	1.8 VDC	No Marking	Off-On On-Off	Silver	40 mm	2 A	LED Red	4PST-2NO/2NC	Solder Lug	55 °C	-20 ░C	IP65 - Dust Tight Water Resistant	48 V	Panel Mount Front
E-Switch PV10FWV0SS-311	1000000 Cycles	50000 Cycles	Anti-Vandal Illuminated	Button Flush Round	1.8 VDC	No Marking	Off-Mom On-Mom	Silver	40 mm	2 A	LED Red	4PST-2NO/2NC	Wire Leads	55 °C	-20 ░C	IP65 - Dust Tight Water Resistant	48 V	Panel Mount Front
E-Switch PV10F2U0SS-341	1000000 Cycles	50000 Cycles	Anti-Vandal Illuminated	Button Flush Round	2.8 VDC	No Marking	Off-On On-Off	Silver	40 mm	2 A	Blue LED	4PST-2NO/2NC	Solder Lug	55 °C	-20 ░C	IP65 - Dust Tight Water Resistant	48 V	Panel Mount Front
E-Switch PV10FWU0SS-331	1000000 Cycles	50000 Cycles	Anti-Vandal Illuminated	Button Flush Round	2.8 VDC	No Marking	Off-On On-Off	Silver	40 mm	2 A	Green LED	4PST-2NO/2NC	Wire Leads	55 °C	-20 ░C	IP65 - Dust Tight Water Resistant	48 V	Panel Mount Front
E-Switch PV10F2V0SS-341	1000000 Cycles	50000 Cycles	Anti-Vandal Illuminated	Button Flush Round	2.8 VDC	No Marking	Off-Mom On-Mom	Silver	40 mm	2 A	Blue LED	4PST-2NO/2NC	Solder Lug	55 °C	-20 ░C	IP65 - Dust Tight Water Resistant	48 V	Panel Mount Front
E-Switch PV10FWV0SS-3K3			Anti-Vandal Illuminated	Button Flush Round	6 VDC		Off-Mom On-Mom	Silver	40 mm	2 A	Green/Orange LED	4PST-2NO/2NC	Wire Leads	55 °C	-20 ░C	IP65 - Dust Tight Water Resistant	48 V	Panel Mount Front
E-Switch PV10F2Y0SS-3G4			Anti-Vandal Illuminated	Button Flush Round	12 VDC		Off-Mom On-Mom	Silver	40 mm	2 A	Green/Red LED	DPST-NO/NC	Solder Quick Connect - 0.110" (2.8mm)	55 °C	-20 ░C	IP65 - Dust Tight Water Resistant	48 V	Panel Mount Front
E-Switch PV10FWU0SS-311	1000000 Cycles	50000 Cycles	Anti-Vandal Illuminated	Button Flush Round	1.8 VDC	No Marking	Off-On On-Off	Silver	40 mm	2 A	LED Red	4PST-2NO/2NC	Wire Leads	55 °C	-20 ░C	IP65 - Dust Tight Water Resistant	48 V	Panel Mount Front
