0285-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .022-.034 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Tail Type	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Accepts Square Pin Size	Accepts Square Pin Size	Contact Finish Thickness	Contact Finish Thickness	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]

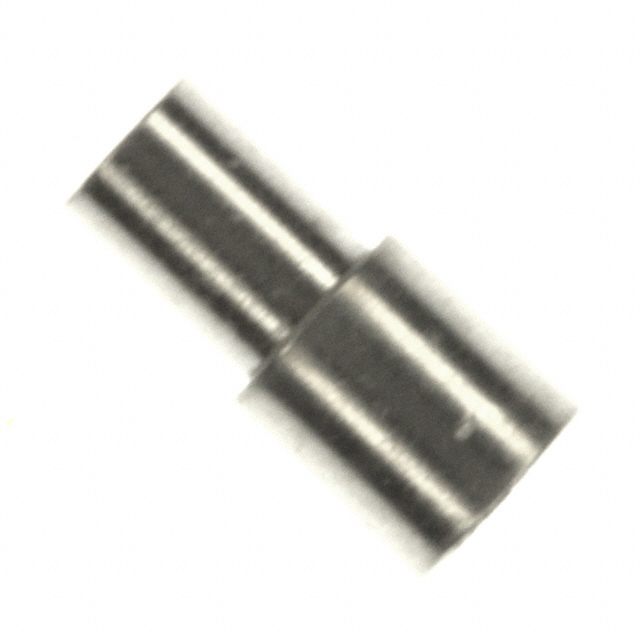

Mill-Max Manufacturing Corp. 0285-0-15-01-16-01-10-0	-55 C	125 °C	0.86 mm	0.034 "	0.022 "	0.56 mm	Tin-Lead	2.03 mm	0.08 in	Beryllium Copper	No Tail	4.57 mm	0.18 in	1.65 mm	0.065 in	0.18 in	4.57 mm	0.025 in	0.64 mm	200 Áin	5.08 Ám	Solder	0.051 in	1.3 mm

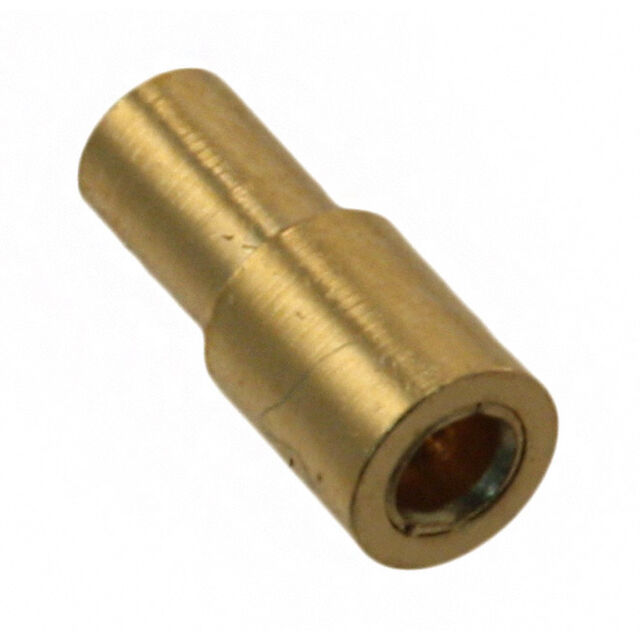

Mill-Max Manufacturing Corp. 0285-0-15-15-16-27-10-0	-55 C	125 °C	0.86 mm	0.034 "	0.022 "	0.56 mm	Gold	2.03 mm	0.08 in	Beryllium Copper	No Tail	4.57 mm	0.18 in	1.65 mm	0.065 in	0.18 in	4.57 mm	0.025 in	0.64 mm	30 Áin	0.76 Ám	Solder	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0285-0-15-01-16-14-10-0	-55 C	125 °C	0.86 mm	0.034 "	0.022 "	0.56 mm	Gold	2.03 mm	0.08 in	Beryllium Copper	No Tail	4.57 mm	0.18 in	1.65 mm	0.065 in	0.18 in	4.57 mm	0.025 in	0.64 mm	10 Áin	0.25 Ám	Solder	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0285-0-15-80-16-14-10-0	-55 C	125 °C	0.86 mm	0.034 "	0.022 "	0.56 mm	Gold	2.03 mm	0.08 in	Beryllium Copper	No Tail	4.57 mm	0.18 in	1.65 mm	0.065 in	0.18 in	4.57 mm	0.025 in	0.64 mm	10 Áin	0.25 Ám	Solder	0.051 in	1.3 mm

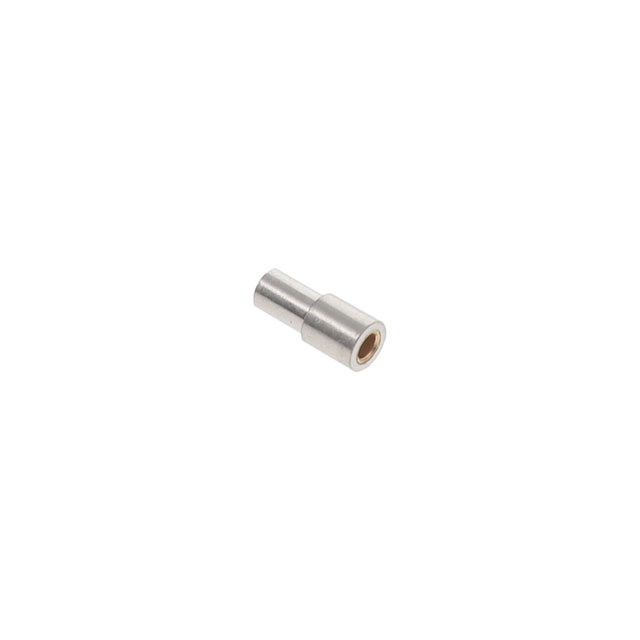

Mill-Max Manufacturing Corp. 0285-0-15-80-16-27-10-0	-55 C	125 °C	0.86 mm	0.034 "	0.022 "	0.56 mm	Gold	2.03 mm	0.08 in	Beryllium Copper	No Tail	4.57 mm	0.18 in	1.65 mm	0.065 in	0.18 in	4.57 mm	0.025 in	0.64 mm	30 Áin	0.76 Ám	Solder	0.051 in	1.3 mm
