M13407 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

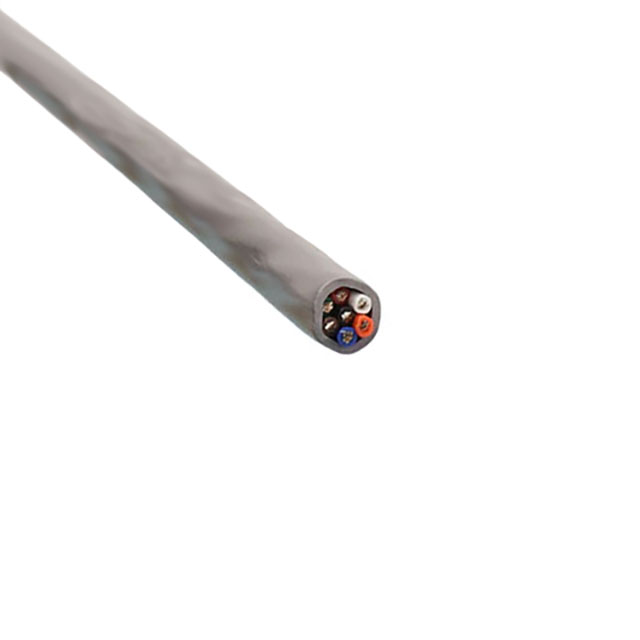

CABLE 7COND 20AWG SLATE
| Part | Number of Conductors | Conductor Insulation | Wire Gauge | Cable Type | Voltage | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket Color | Length | Length | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 7 | Poly-Vinyl Chloride (PVC) | 20 AWG | Multi-Conductor | 300 VDC | UL Style 2464 | 6.53 mm | 0.257 in | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Slate | 152.4 m | 500 ft | Copper Tinned | 80 °C | -20 ░C | 0.813 mm | 0.032 in | ||
ALPHA WIRE | 7 | Poly-Vinyl Chloride (PVC) | 20 AWG | Multi-Conductor | 300 VDC | UL Style 2464 | 6.53 mm | 0.257 in | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Slate | 914.4 m | 3000 ' | Copper Tinned | 80 °C | -20 ░C | 0.813 mm | 0.032 in | ||
 ALPHA WIRE | 7 | Poly-Vinyl Chloride (PVC) | 20 AWG | Multi-Conductor | 300 VDC | UL Style 2464 | 6.53 mm | 0.257 in | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Slate | Copper Tinned | 80 °C | -20 ░C | 0.813 mm | 0.032 in | 100 ft | 30.5 m |
