K85X-CD Series

Catalog

CONN D-SUB RCPT 37POS VERT SLDR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Form	Voltage Rating	Contact Material	Dielectric Material	Connector Type	Contact Type	Contact Finish Thickness	Number of Positions	Shell Material, Finish	Connector Style	Mounting Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish	Material Flammability Rating	Termination	Features	Number of Rows [custom]	Current Rating (Amps)	Flange Feature	Contact Finish Thickness	Contact Finish Thickness

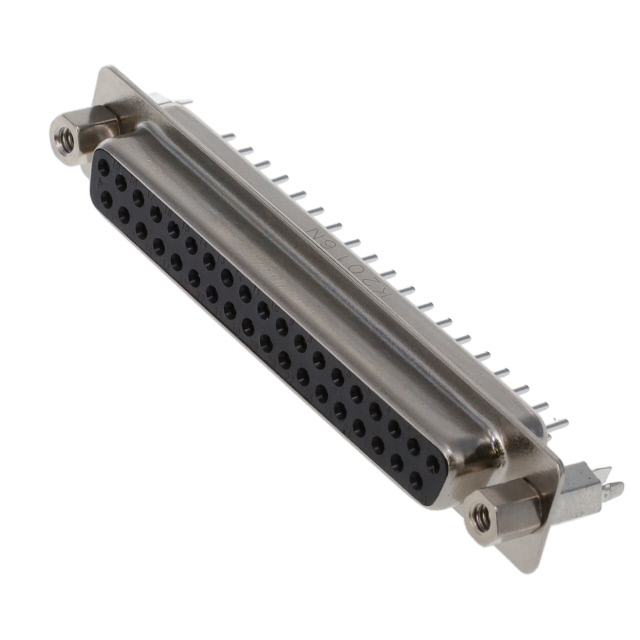

Kycon, Inc. K85X-CD-37S-BRJ	-55 C	105 ░C	Black	Stamped	30 VDC	Brass	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Signal	Flash	37	Nickel Plated Steel	D-Sub	Through Hole	4	DC C	Gold	UL94 V-0	Solder	Board Lock	2	2 A	Board Side (4-40) Mating Side Female Screwlock (4-40)
Kycon, Inc. K85X-CD-37P-KJ	-55 C	105 ░C	Black	Stamped	30 VDC	Brass	Polybutylene Terephthalate (PBT) Glass Filled	Plug Male Pins	Signal	Flash	37	Nickel Plated Steel	D-Sub	Through Hole	4	DC C	Gold	UL94 V-0	Solder	Grounding Indents	2	2 A	Board Side (4-40) Mating Side Female Screwlock (4-40)
Kycon, Inc. K85X-CD-37S-KJ	-55 C	105 ░C	Black	Stamped	30 VDC	Brass	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Signal	Flash	37	Nickel Plated Steel	D-Sub	Through Hole	4	DC C	Gold	UL94 V-0	Solder		2	2 A	Board Side (4-40) Mating Side Female Screwlock (4-40)
Kycon, Inc. K85X-CD-37S-BRJ30	-55 C	105 ░C	Black	Stamped	30 VDC	Brass	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Signal		37	Nickel Plated Steel	D-Sub	Through Hole	4	DC C	Gold	UL94 V-0	Solder	Board Lock	2	2 A	Board Side (4-40) Mating Side Female Screwlock (4-40)	30 Áin	0.76 Ám
Kycon, Inc. K85X-CD-37P-BRJ30	-55 C	105 ░C	Black	Stamped	30 VDC	Brass	Polybutylene Terephthalate (PBT) Glass Filled	Plug Male Pins	Signal		37	Nickel Plated Steel	D-Sub	Through Hole	4	DC C	Gold	UL94 V-0	Solder	Board Lock Grounding Indents	2	2 A	Board Side (4-40) Mating Side Female Screwlock (4-40)	30 Áin	0.76 Ám
