ACSL-6210 Series

Catalog

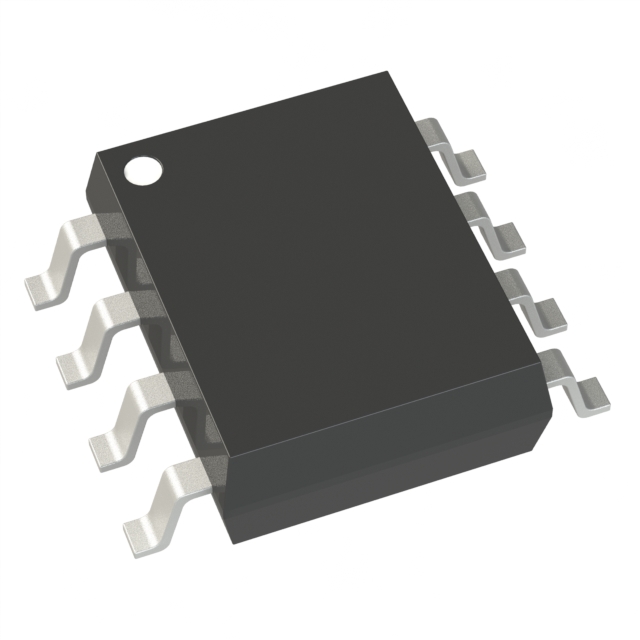

OPTOISO 2.5KV 2CH OPEN COLL 8SO

Part	Data Rate	Number of Channels	Inputs - Side 1/Side 2	Voltage - Forward (Vf) (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case	Package / Case	Package / Case	Output Type	Propagation Delay tpLH / tpHL (Max) [Max]	Mounting Type	Supplier Device Package	Common Mode Transient Immunity (Min) [Min]	Input Type	Current - Output / Channel	Current - DC Forward (If) (Max) [Max]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
Broadcom Limited ACSL-6210-50RE	15 Mbps	2	1	1.52 V	12 ns	30 ns	0.154 in	8-SOIC	3.9 mm	Open Collector Schottky Clamped	100 ns	Surface Mount	8-SO	10 kV/µs	DC	50 mA	15 mA	2500 Vrms	-40 C	100 °C	5.5 V	3 V
Broadcom Limited ACSL-6210-50R	15 Mbps	2	1	1.52 V	12 ns	30 ns	0.154 in	8-SOIC	3.9 mm	Open Collector Schottky Clamped	100 ns	Surface Mount	8-SO	10 kV/µs	DC	50 mA	15 mA	2500 Vrms	-40 C	100 °C	5.5 V	3 V
Broadcom Limited ACSL-6210-06R	15 Mbps	2	1	1.52 V	12 ns	30 ns	0.154 in	8-SOIC	3.9 mm	Open Collector Schottky Clamped	100 ns	Surface Mount	8-SO	10 kV/µs	DC	50 mA	15 mA	2500 Vrms	-40 C	100 °C	5.5 V	3 V
Broadcom Limited ACSL-6210-00RE	15 Mbps	2	1	1.52 V	12 ns	30 ns	0.154 in	8-SOIC	3.9 mm	Open Collector Schottky Clamped	100 ns	Surface Mount	8-SO	10 kV/µs	DC	50 mA	15 mA	2500 Vrms	-40 C	100 °C	5.5 V	3 V
Broadcom Limited ACSL-6210-56RE	15 Mbps	2	1	1.52 V	12 ns	30 ns	0.154 in	8-SOIC	3.9 mm	Open Collector Schottky Clamped	100 ns	Surface Mount	8-SO	10 kV/µs	DC	50 mA	15 mA	2500 Vrms	-40 C	100 °C	5.5 V	3 V
Broadcom Limited ACSL-6210-00R	15 Mbps	2	1	1.52 V	12 ns	30 ns	0.154 in	8-SOIC	3.9 mm	Open Collector Schottky Clamped	100 ns	Surface Mount	8-SO	10 kV/µs	DC	50 mA	15 mA	2500 Vrms	-40 C	100 °C	5.5 V	3 V
