2029265 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

6P VAL-U-LOK VRTHDR W/PGS GW

Part	Applications	Termination	Number of Positions	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Style	Features	Shrouding	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Insulation Material	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Voltage Rating	Contact Shape	Contact Material

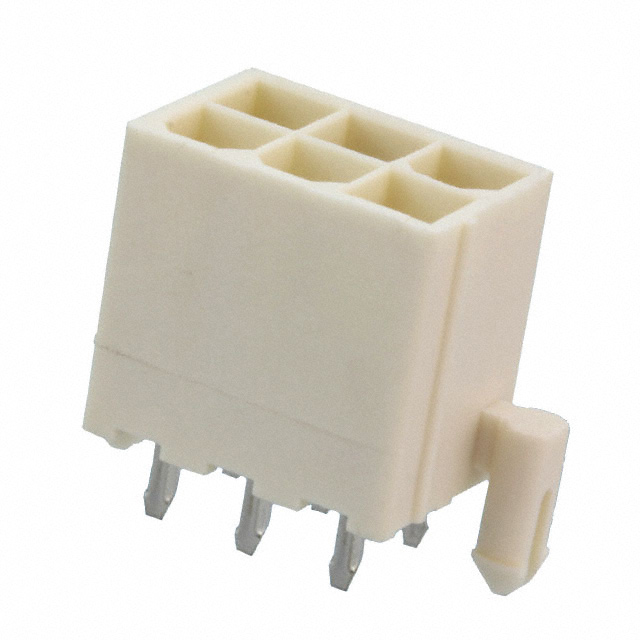

TE Connectivity AMP Connectors 2029265-6	General Purpose Industrial Lighting	Solder	6	Header	-40 C	105 ░C	Tin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	All	0.165 in	4.2 mm	White	Male Pin	0.138 in	3.5 mm	12.8 mm	0.504 "	UL94 V-0	9 A	Through Hole	Nylon Polyamide (PA)	Locking Ramp	0.165 in	4.2 mm	2	600 VAC	Square	Brass

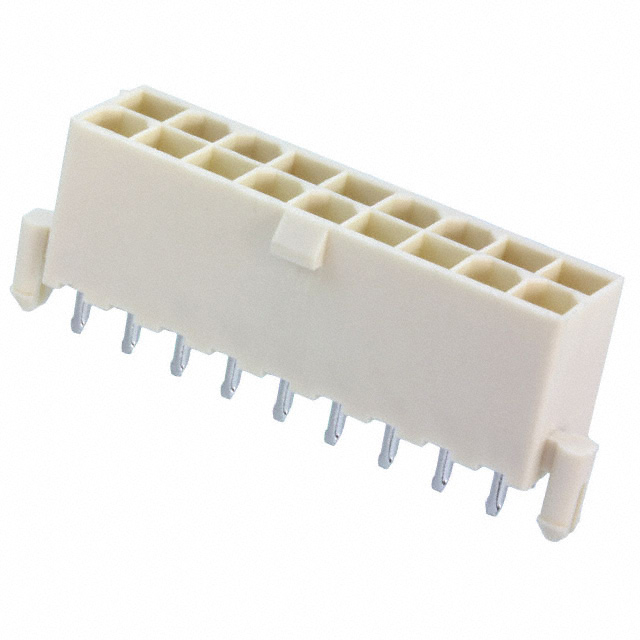

TE Connectivity AMP Connectors 1-2029265-8	General Purpose Industrial Lighting	Solder	18	Header	-40 C	105 ░C	Tin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	All	0.165 in	4.2 mm	White	Male Pin	0.138 in	3.5 mm	12.8 mm	0.504 "	UL94 V-0		Through Hole	Nylon Polyamide (PA)	Locking Ramp	0.165 in	4.2 mm	2	600 VAC	Square	Brass

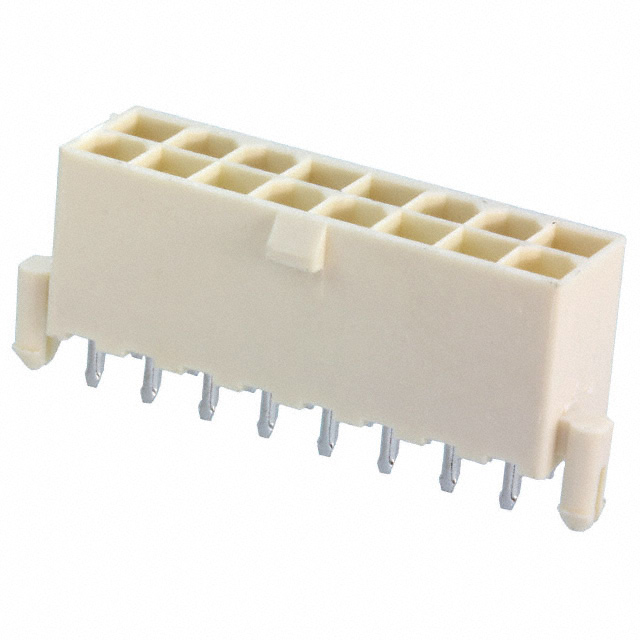

TE Connectivity AMP Connectors 1-2029265-6	General Purpose Industrial Lighting	Solder	16	Header	-40 C	105 ░C	Tin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	All	0.165 in	4.2 mm	White	Male Pin	0.138 in	3.5 mm	12.8 mm	0.504 "	UL94 V-0		Through Hole	Nylon Polyamide (PA)	Locking Ramp	0.165 in	4.2 mm	2	600 VAC	Square	Brass

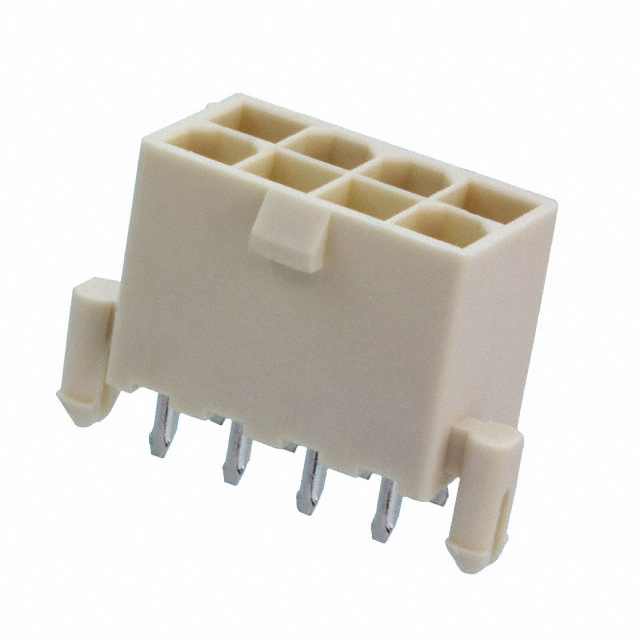

TE Connectivity AMP Connectors 2029265-8	General Purpose Industrial Lighting	Solder	8	Header	-40 C	105 ░C	Tin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	All	0.165 in	4.2 mm	White	Male Pin	0.138 in	3.5 mm	12.8 mm	0.504 "	UL94 V-0	9 A	Through Hole	Nylon Polyamide (PA)	Locking Ramp	0.165 in	4.2 mm	2	600 VAC	Square	Brass

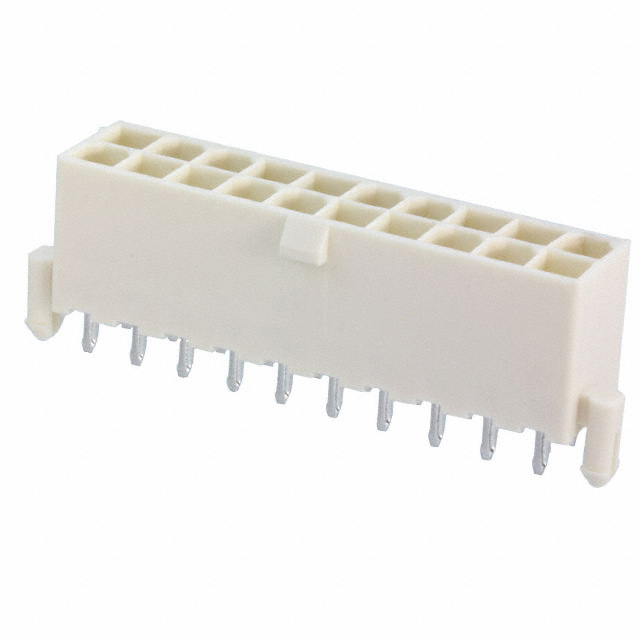

TE Connectivity AMP Connectors 2-2029265-0	General Purpose Industrial Lighting	Solder	20	Header	-40 C	105 ░C	Tin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	All	0.165 in	4.2 mm	White	Male Pin	0.138 in	3.5 mm	12.8 mm	0.504 "	UL94 V-0	9 A	Through Hole	Nylon Polyamide (PA)	Locking Ramp	0.165 in	4.2 mm	2	600 VAC	Square	Brass

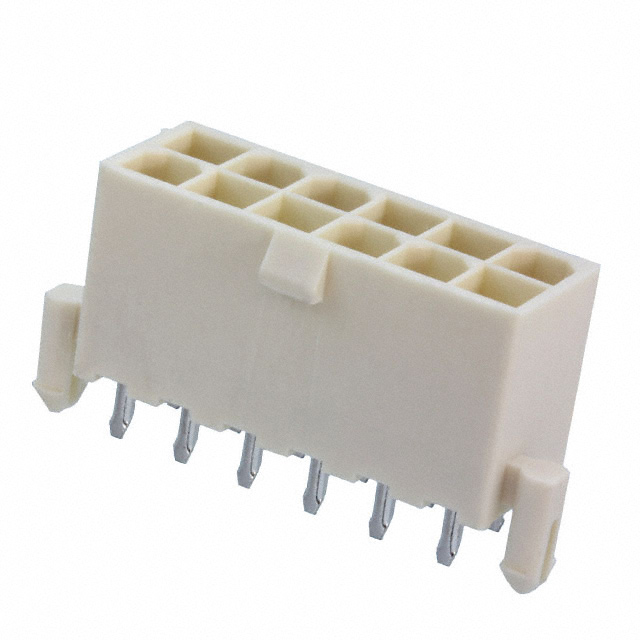

TE Connectivity AMP Connectors 1-2029265-2	General Purpose Industrial Lighting	Solder	12	Header	-40 C	105 ░C	Tin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	All	0.165 in	4.2 mm	White	Male Pin	0.138 in	3.5 mm	12.8 mm	0.504 "	UL94 V-0		Through Hole	Nylon Polyamide (PA)	Locking Ramp	0.165 in	4.2 mm	2	600 VAC	Square	Brass
