91932 Series

Catalog

CONN RCPT 21POS SMD GOLD

Part	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Height Above Board	Height Above Board	Connector Type	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mated Stacking Heights
Amphenol ICC (FCI) 91932-31121LF	Gold or Gold GXT™	0.039 in	1 mm	2	Surface Mount	0.129 in	3.28 mm	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	15 µin	0.38 µm	21	4.15 mm 4.5 mm 5 mm 5.5 mm 6 mm 7 mm 7.52 mm
Amphenol ICC (FCI) 91932-31115LF	Gold or Gold GXT™	0.039 in	1 mm	2	Surface Mount	0.129 in	3.28 mm	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	15 µin	0.38 µm	15	4.15 mm 4.5 mm 5 mm 5.5 mm 6 mm 7 mm 7.52 mm
Amphenol ICC (FCI) 91932-32131LF	Gold or Gold GXT™	0.039 in	1 mm	2	Surface Mount	0.129 in	3.28 mm	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	30 Áin	0.76 Ám	31	4.15 mm 4.5 mm 5 mm 5.5 mm 6 mm 7 mm 7.52 mm
Amphenol ICC (FCI) 91932-31109LF	Gold or Gold GXT™	0.039 in	1 mm	2	Surface Mount	0.129 in	3.28 mm	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	15 µin	0.38 µm	9	4.15 mm 4.5 mm 5 mm 5.5 mm 6 mm 7 mm 7.52 mm

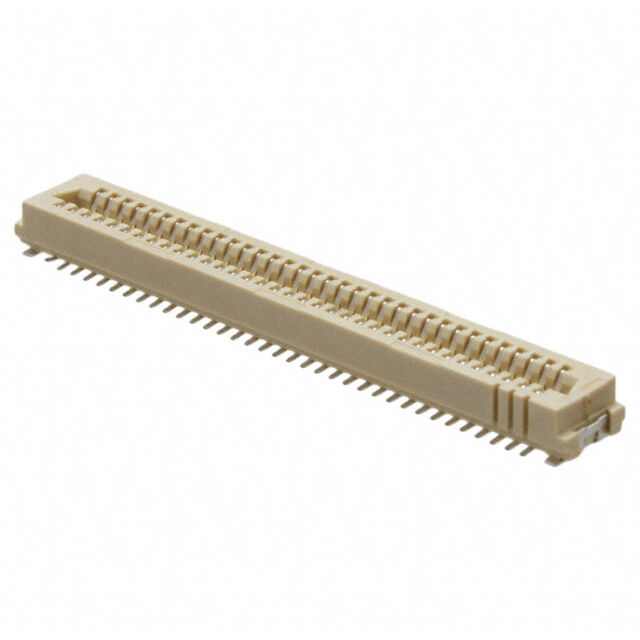

Amphenol ICC (FCI) 91932-31169	Gold or Gold GXT™	0.039 in	1 mm	2	Surface Mount	0.129 in	3.28 mm	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	15 µin	0.38 µm	69	4.15 mm 4.5 mm 5 mm 5.5 mm 6 mm 7 mm 7.52 mm
Amphenol ICC (FCI) 91932-31169LF	Gold or Gold GXT™	0.039 in	1 mm	2	Surface Mount	0.129 in	3.28 mm	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	15 µin	0.38 µm	69	4.15 mm 4.5 mm 5 mm 5.5 mm 6 mm 7 mm 7.52 mm
Amphenol ICC (FCI) 91932-32169LF	Gold or Gold GXT™	0.039 in	1 mm	2	Surface Mount	0.129 in	3.28 mm	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	30 Áin	0.76 Ám	69	4.15 mm 4.5 mm 5 mm 5.5 mm 6 mm 7 mm 7.52 mm
