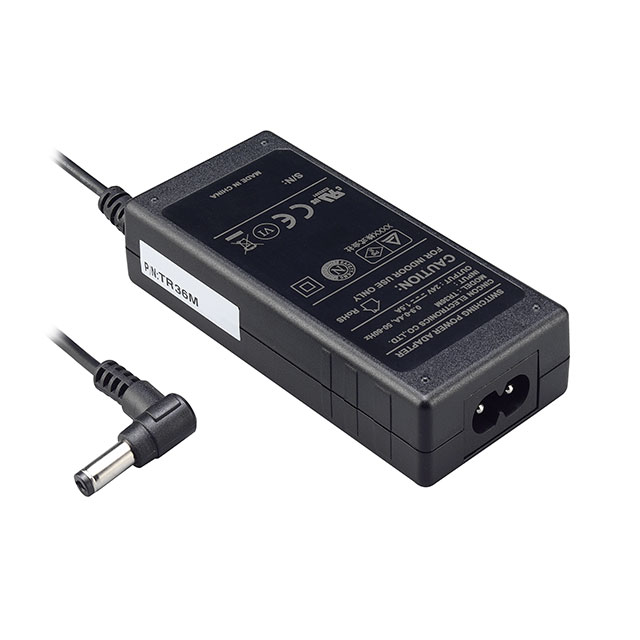

TR36M Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

AC/DC DESKTOP ADAPTER 9V 30W

Part	Weight	Weight	Approval Agency	Current - Output (Max) [Max]	No Load Power Consumption	Voltage - Output	Region Utilized	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Applications	Input Connector	Input Type	Cord Length	Cord Length	Polarization	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Form	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]	Standard Number	Output Connector [diameter]	Output Connector [z]	Current - Output (Max)
Cincon Electronics Co. LTD TR36M090-11G03 VI	150.14 g	0.331 lb	CE cURus FCC NEMKO PSE	3.3 A	75 mW	9 V	International	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Medical	IEC 320-C8	Cord (Sold Separately)	70.9 "	1.8 m	Positive Center	30 Watts	80 VAC	264 VAC	CoC Tier 2 Level VI	-30 ░C	60 °C	Desktop (Class II)	2.1 mm	5.5 mm	Barrel Plug	12 mm

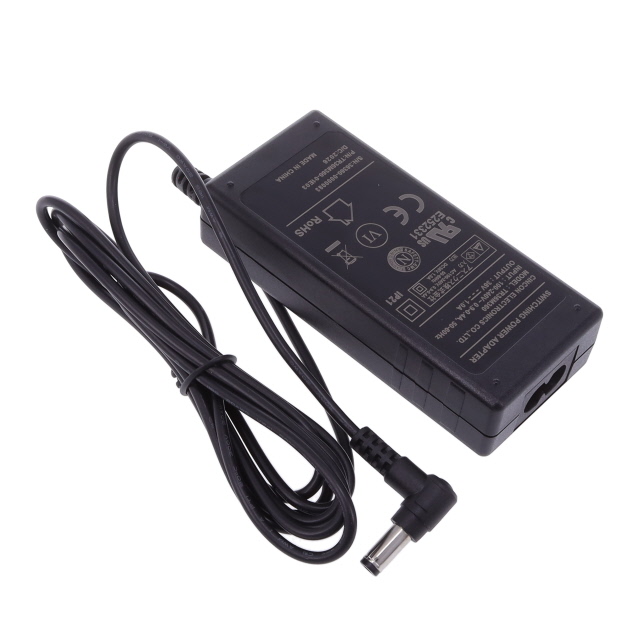

Cincon Electronics Co. LTD TR36M360-01E03 VI			CE cURus FCC NEMKO PSE	1 A	75 mW	36 V	International	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Household Appliances Medical	IEC 320-C8	Cord (Sold Separately)	70.9 "	1.8 m	Positive Center	36 W	80 VAC	264 VAC	CoC Tier 2 Level VI	-30 ░C	60 °C	Desktop (Class II)			Barrel Plug R/A		60335-1 60601-1	2.1 mm 5.5 mm	12 mm
Cincon Electronics Co. LTD TR36M360-11G03 VI	150.14 g	0.331 lb	CE cURus FCC NEMKO PSE	1 A	75 mW	36 V	International	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Medical	IEC 320-C8	Cord (Sold Separately)	70.9 "	1.8 m	Positive Center	36 W	80 VAC	264 VAC	CoC Tier 2 Level VI	-30 ░C	60 °C	Desktop (Class II)			Barrel Plug R/A			2.1 mm 5.5 mm	12 mm
Cincon Electronics Co. LTD TR36M180-11G03 VI	150.14 g	0.331 lb	CE cURus FCC NEMKO PSE	2 A	75 mW	18 V	International	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Medical	IEC 320-C8	Cord (Sold Separately)	70.9 "	1.8 m	Positive Center	36 W	80 VAC	264 VAC	CoC Tier 2 Level VI	-30 ░C	60 °C	Desktop (Class II)			Barrel Plug R/A			2.1 mm 5.5 mm	12 mm
Cincon Electronics Co. LTD TR36M135-11G03 VI	150.14 g	0.331 lb	CE cURus FCC NEMKO PSE	2.4 A	75 mW	13.5 V	International	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Medical	IEC 320-C8	Cord (Sold Separately)	70.9 "	1.8 m	Positive Center	32 W	80 VAC	264 VAC	CoC Tier 2 Level VI	-30 ░C	60 °C	Desktop (Class II)			Barrel Plug R/A			2.1 mm 5.5 mm	12 mm
Cincon Electronics Co. LTD TR36M480-11G03 VI	150.14 g	0.331 lb	CE cURus FCC NEMKO PSE	750 mA	75 mW	48 V	International	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Medical	IEC 320-C8	Cord (Sold Separately)	70.9 "	1.8 m	Positive Center	36 W	80 VAC	264 VAC	CoC Tier 2 Level VI	-30 ░C	60 °C	Desktop (Class II)			Barrel Plug R/A			2.1 mm 5.5 mm	12 mm

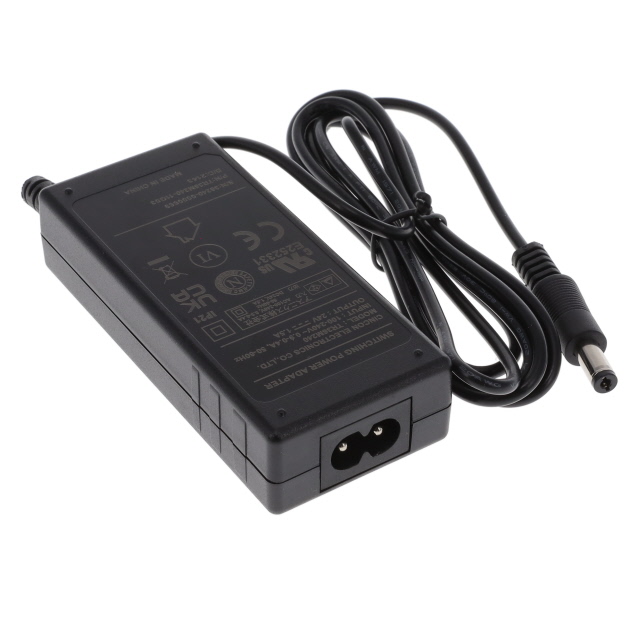

Cincon Electronics Co. LTD TR36M240-11G03 VI	150.14 g	0.331 lb	CE cURus FCC NEMKO PSE	1.5 A	75 mW	24 V	International	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Medical	IEC 320-C8	Cord (Sold Separately)	70.9 "	1.8 m	Positive Center	36 W	80 VAC	264 VAC	CoC Tier 2 Level VI	-30 ░C	60 °C	Desktop (Class II)			Barrel Plug R/A			2.1 mm 5.5 mm	12 mm
Cincon Electronics Co. LTD TR36M050-11G02 VI	150.14 g	0.331 lb	CE cURus FCC NEMKO PSE		75 mW	5 V	International	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Medical	IEC 320-C8	Cord (Sold Separately)	48 in	1.22 m	Positive Center	25 W	80 VAC	264 VAC	CoC Tier 2 Level VI	-30 ░C	60 °C	Desktop (Class II)			Barrel Plug R/A			2.1 mm 5.5 mm	12 mm	5 A
Cincon Electronics Co. LTD TR36M150-11G03 VI	150.14 g	0.331 lb	CE cURus FCC NEMKO PSE	2.4 A	75 mW	15 V	International	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Medical	IEC 320-C8	Cord (Sold Separately)	70.9 "	1.8 m	Positive Center	36 W	80 VAC	264 VAC	CoC Tier 2 Level VI	-30 ░C	60 °C	Desktop (Class II)			Barrel Plug R/A			2.1 mm 5.5 mm	12 mm
Cincon Electronics Co. LTD TR36M120-11G03 VI	150.14 g	0.331 lb	CE cURus FCC NEMKO PSE	2.5 A	75 mW	12 V	International	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Medical	IEC 320-C8	Cord (Sold Separately)	70.9 "	1.8 m	Positive Center	30 Watts	80 VAC	264 VAC	CoC Tier 2 Level VI	-30 ░C	60 °C	Desktop (Class II)			Barrel Plug R/A			2.1 mm 5.5 mm	12 mm
